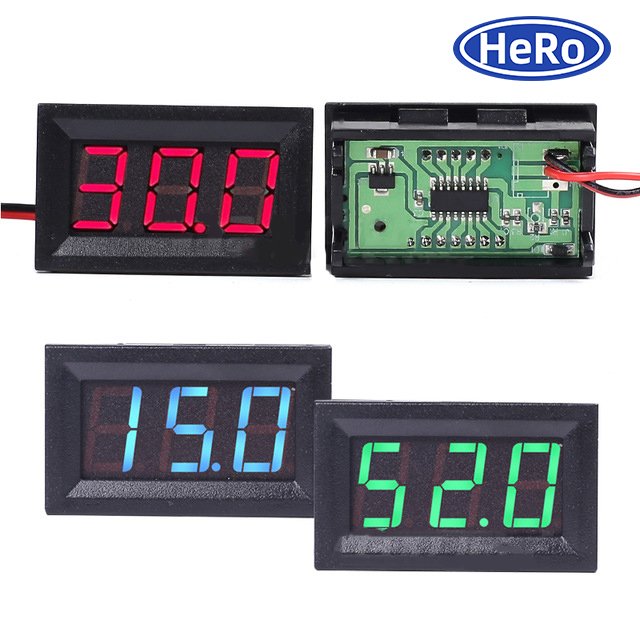

0.56″ 2-Wire AC/DC Digital Voltmeter – Wide Range LED Display
Product Overview:
This compact 0.56 inch 2-wire AC/DC Digital Voltmeter offers a broad input voltage range and features an auto-adjusting decimal point for optimal display accuracy. It supports DC and AC voltage readings across multiple ranges, making it ideal for power systems, electronics, and general voltage monitoring. Choose from vibrant red, green, or blue LED display colors.
Key Features:
- 🔋 Measuring Range:
- DC 4.5–30V
- DC 4.5–120V
- AC 30–500V
- 💡 Auto Decimal Point Adjustment for improved readability and accuracy
- 🎨 Display Colors: Red, Green, Blue (optional)
- 🔌 2-Wire Design – No external power supply required
- 🧩 Installation Size: 46 × 27mm
- 📊 Display: Three-digit 0.56″ LED digital tube
Specifications:
| Input Voltage Range | DC 4.5–30V / DC 4.5–120V / AC 30–500V |
| Display | 3-digit, 0.56″ LED |
| Accuracy | ±1% |
| Refresh Rate | Approx. 200ms/time |
| Current Consumption | ≤20mA (typical 5–15mA) |
| Working Temperature | -10°C ~ +65°C |
| Wire Length | 20cm |
Package Includes:
- ✔️ 1 × 0.56″ 2-Wire LED Digital Voltmeter
