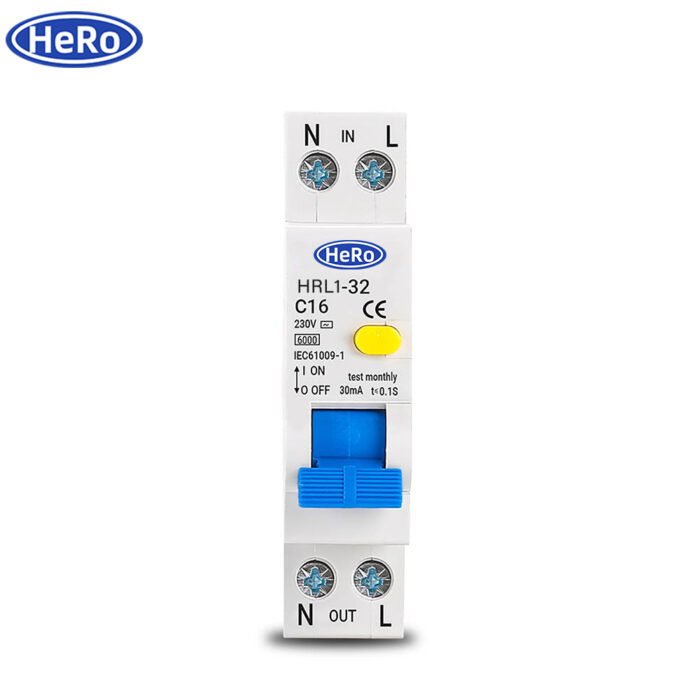

18mm Mini RCBO 1P+N 230V | 6Aā32A | 6kA | Residual Current Circuit Breaker with Leakage & Overcurrent Protection
Product Overview:
The TBL1-32 Mini RCBO is a compact, high-performance safety device designed to combine leakage protection with overcurrent and short circuit protection. With a slim 18mm DIN rail mount design, it is ideal for space-saving installations in residential and commercial distribution panels. Operating at 230V and conforming to IEC/EN 61009-1 standards, this 1P+N circuit breaker ensures safe and reliable protection with a 6kA breaking capacity.
Key Features:

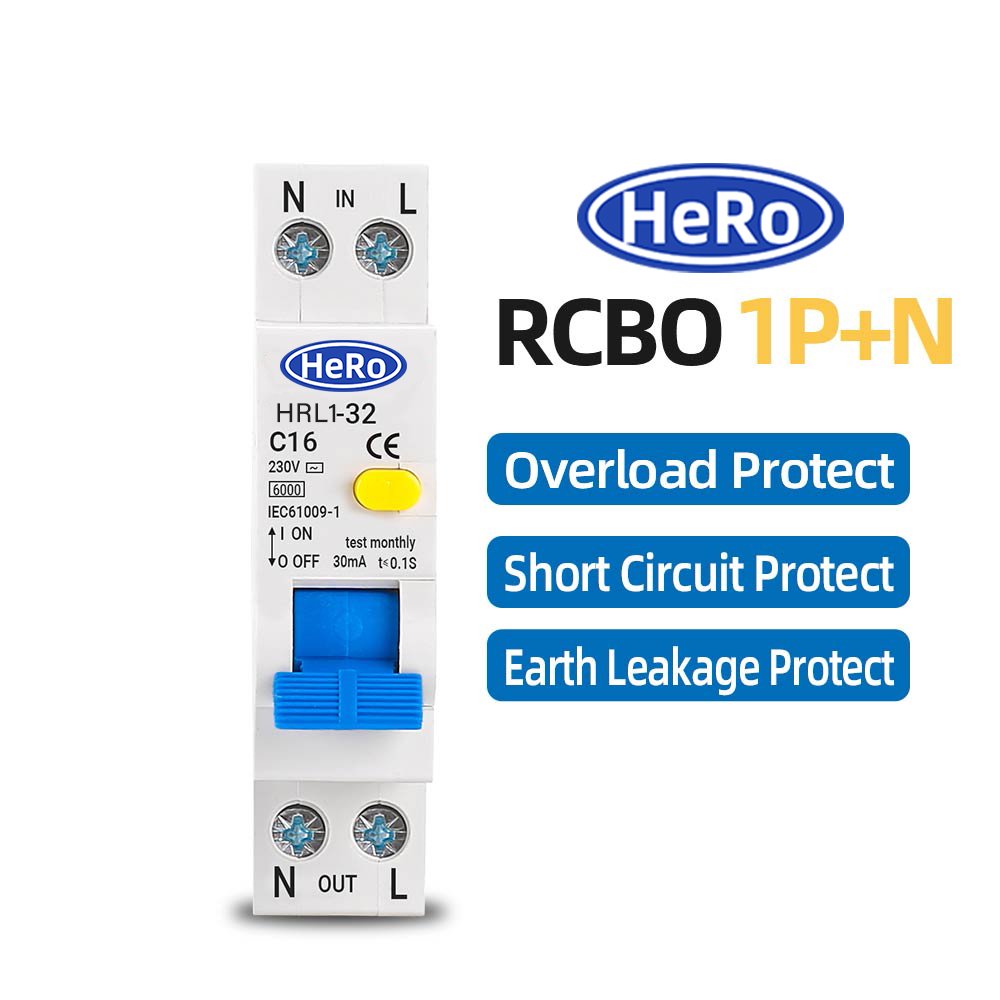

- š”ļø Triple Protection: Leakage, overload, and short-circuit protection in a single compact unit.

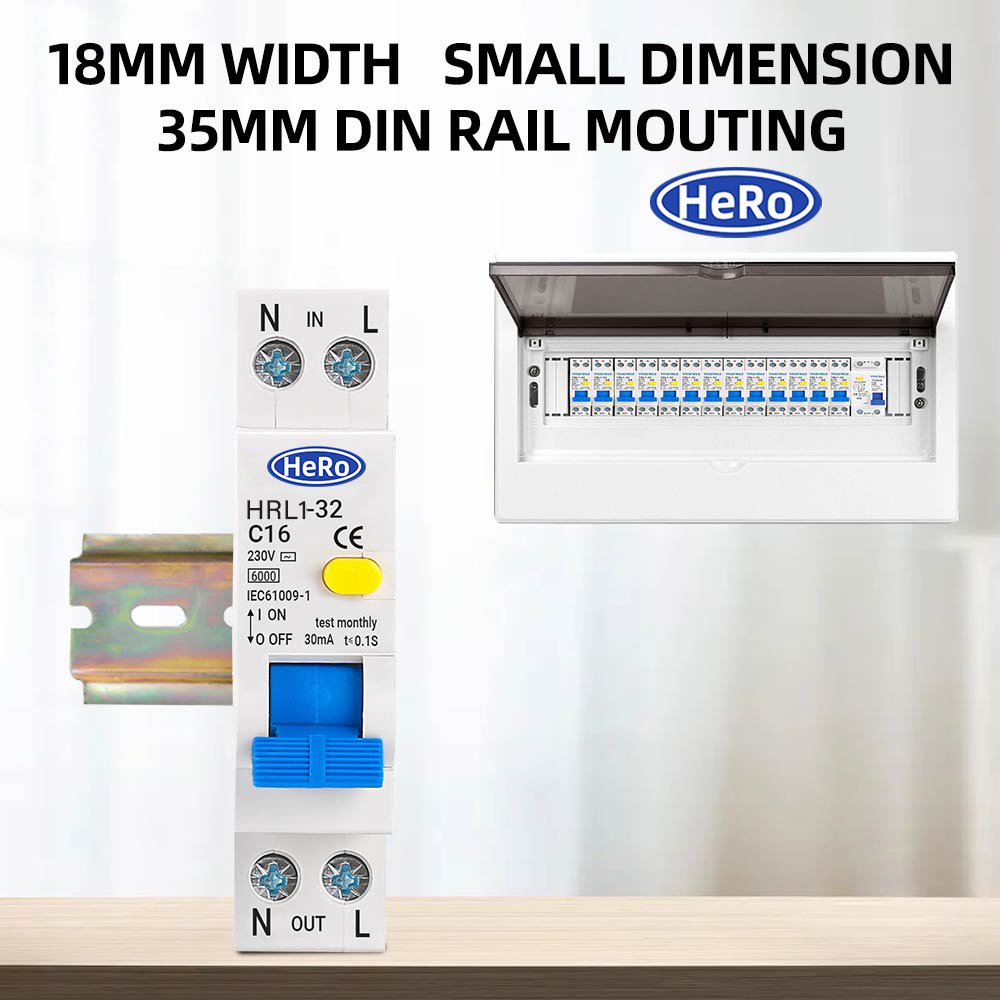

- š Ultra-Slim Design: Just 18mm width ā perfect for tight distribution boards and modular systems.
- ā” Breaking Capacity: 6kA ā reliable fault clearing for safe operation.
- š Rated Voltage: 230V AC (50/60Hz) ā suitable for single-phase residential or light commercial circuits.
- š DIN Rail Mount: Easy and quick to install using standard 35mm DIN rails.

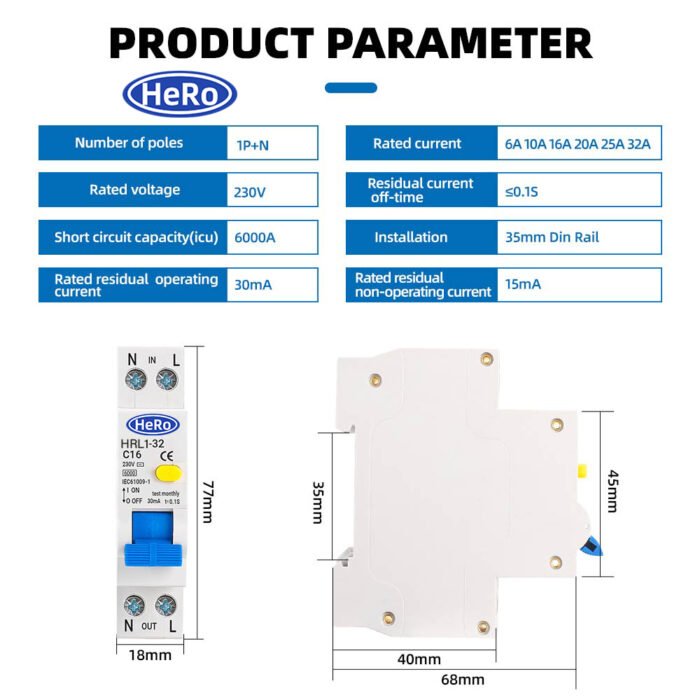

Technical Specifications:
- Model: TBL1-32
- Poles: 1P+N (Two-Pole)
- Rated Current: 6A / 10A / 20A / 25A / 32A
- Rated Voltage: 230V AC, 50/60Hz
- Leakage Sensitivity: 30mA
- Breaking Capacity: 6kA
- Mounting: 18mm Width, DIN Rail
- Standard: IEC/EN 61009-1
- Certification: CE
Applications:
- āļø Home and Apartment Distribution Panels
- āļø Control Cabinets and Subpanels
- āļø Modular Electrical Systems
- āļø Protection of Individual Circuits with Space Constraints
Why Choose This RCBO:
Engineered for both safety and efficiency, this mini RCBO ensures complete protection in a compact footprint. It’s ideal for installations where space is limited, but full-featured protection is still required.
Package Includes:
- š¦ 1 Ć TBL1-32 18mm Mini RCBO (Choose your current rating)
ā ļø Important: For safe and compliant installation, consult a licensed electrician. This device is designed for AC use only.
