19mm 22mm led metal rotary push button

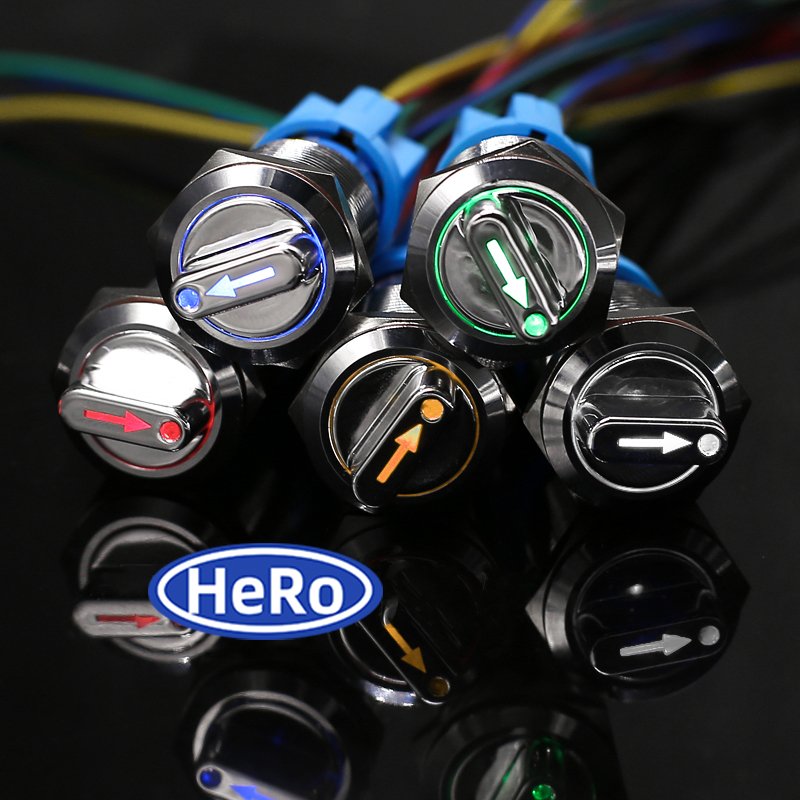

19mm 22mm LED Metal Rotary Push Button

Product Overview:
The LED Metal Rotary Push Button is a versatile and durable control switch designed for industrial, commercial, and residential applications. Available in two sizes (19mm and 22mm), this push button features a built-in LED indicator with multiple color options, making it ideal for use in control panels, machinery, lighting systems, and more. Its robust construction, combined with IP67 and IK08 protection ratings, ensures reliable performance even in harsh environments.

Key Features:

• ⚙️ Multiple Diameter Options: Available in 19mm and 22mm sizes to suit various panel designs.
• 💡 Built-In LED Indicator: Choose from Red (R), Blue (B), Green (G), Yellow (Y), or White (W) LED colors for enhanced visibility and aesthetic appeal.
• ⚡ Voltage Compatibility: Supports a wide voltage range, including 9-24V DC and 220V AC, ensuring flexibility for different applications.
• 🔄 Switch Types:

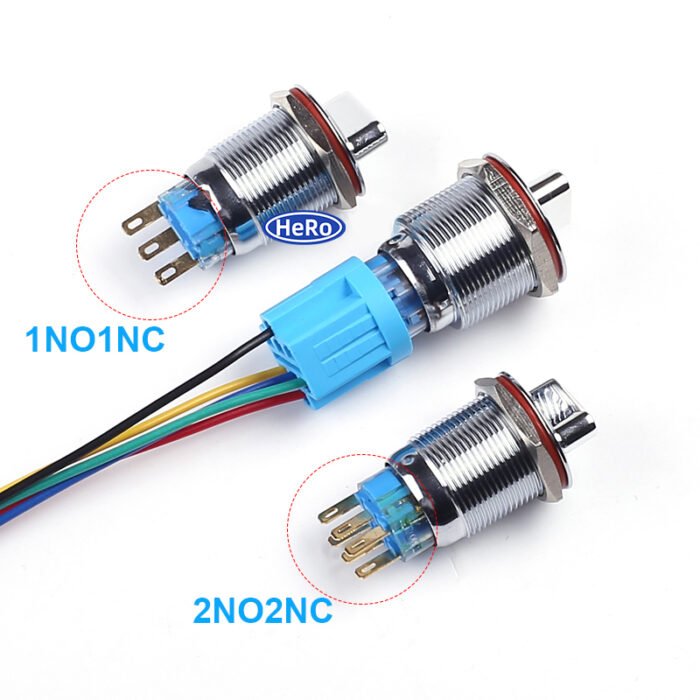

  • 2 Position (1NO1NC)
  • 3 Position (2NO2NC)
• 💪 Premium Materials:
  • 19mm: Nickel-plated brass for excellent conductivity and corrosion resistance.
  • 22mm: Stainless steel for superior durability and strength.
• 🛡️ High Protection Ratings:
  • IP67: Dustproof and waterproof, suitable for wet or dusty environments.
  • IK08: Impact-resistant, capable of withstanding mechanical stress.

Technical Specifications:

• 📦 Diameter Options: 19mm, 22mm
• 💡 LED Colors: Red (R), Blue (B), Green (G), Yellow (Y), White (W)
• ⚡ Voltage Range:
  • 9-24V DC
  • 220V AC
• ⚙️ Switch Types:
  • 2 Position: 1NO1NC
  • 3 Position: 2NO2NC
• 🛠️ Material:
  • 19mm: Nickel-plated brass
  • 22mm: Stainless steel
• 🛡️ Protection Ratings:
  • IP67: Dustproof and waterproof
  • IK08: Impact-resistant

Functionality and Operation:

• 🔄 Rotary & Push Functionality: Combines rotary and push actions for versatile control options, making it ideal for multi-function applications.
• 💡 LED Indicator: Provides clear visual feedback, enhancing usability in low-light environments or for status indication.
• ⚡ Voltage Flexibility: Compatible with both low-voltage (9-24V DC) and high-voltage (220V AC) systems, ensuring adaptability for various setups.
• ⚙️ Switch Configurations:
  • 2 Position (1NO1NC): Ideal for simple on/off operations.
  • 3 Position (2NO2NC):strong> Suitable for more complex control systems requiring multiple states.

Applications:

• 🏭 Industrial Machinery: Perfect for control panels, automation systems, and heavy-duty equipment.
• 💡 Lighting Systems: Use as an illuminated switch for controlling lights, signage, or display panels.
• 🏠 Home Appliances: Suitable for smart home systems, kitchen appliances, or security systems.
• 🎮 Gaming & Custom Projects: Ideal for DIY arcade machines, custom controllers, or hobbyist projects.
• 🚨 Safety Systems: Excellent for emergency stop buttons or alarm systems due to its durability and visibility.

Package Includes:

• 1x LED Metal Rotary Push Button (Diameter: 19mm or 22mm – based on selection)

Important Notes:

• ⚠️ Compatibility: Ensure the selected diameter matches the mounting hole size on your panel or device.
• ⚡ Voltage Selection: Verify the operating voltage of your system (9-24V DC or 220V AC) to avoid overloading or underpowering the switch.
• ⚙️ Installation: Follow proper installation guidelines to ensure secure mounting and reliable operation.
• 🛡️ Safety Precautions: Always disconnect power before installation or maintenance to prevent electrical hazards.
