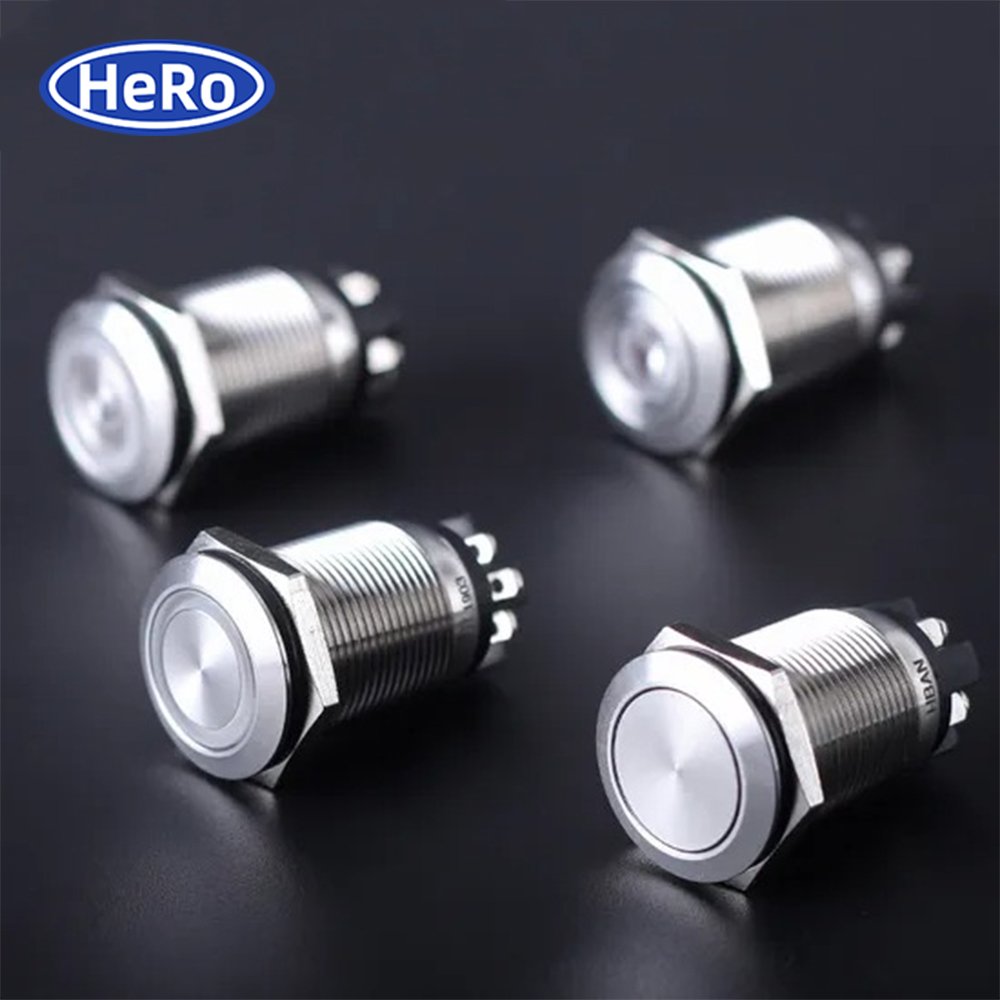

19mm led Metal Push Button Switch(long type)

19mm LED Metal Push Button Switch (Long Type)

Product Overview:
The 19mm LED Metal Push Button Switch (Long Type) is a premium, durable switch designed for a wide range of applications, including industrial control panels, machinery, lighting systems, and home appliances. Featuring a sleek nick-plated brass construction and dot-style LED illumination, this switch combines functionality with aesthetics. With optional momentary or latching operation, multiple LED colors, and a wide voltage range, it offers versatility and reliability for various setups.

Key Features:

• Diameter: 19mm, a standard size for most control panel applications.
• Operation Modes: Available in both Momentary and Latching options to suit different functional requirements.
• LED Illumination:
  • Lamp Colors: Red (R), Green (G), Orange (O), Blue (B), White (W)
  • Illumination Type: Dot-style illumination for clear visibility and a professional appearance.
• Voltage Compatibility: Wide voltage range options (5-24V, 25-48V, 110V, 220V) ensure adaptability for various applications.

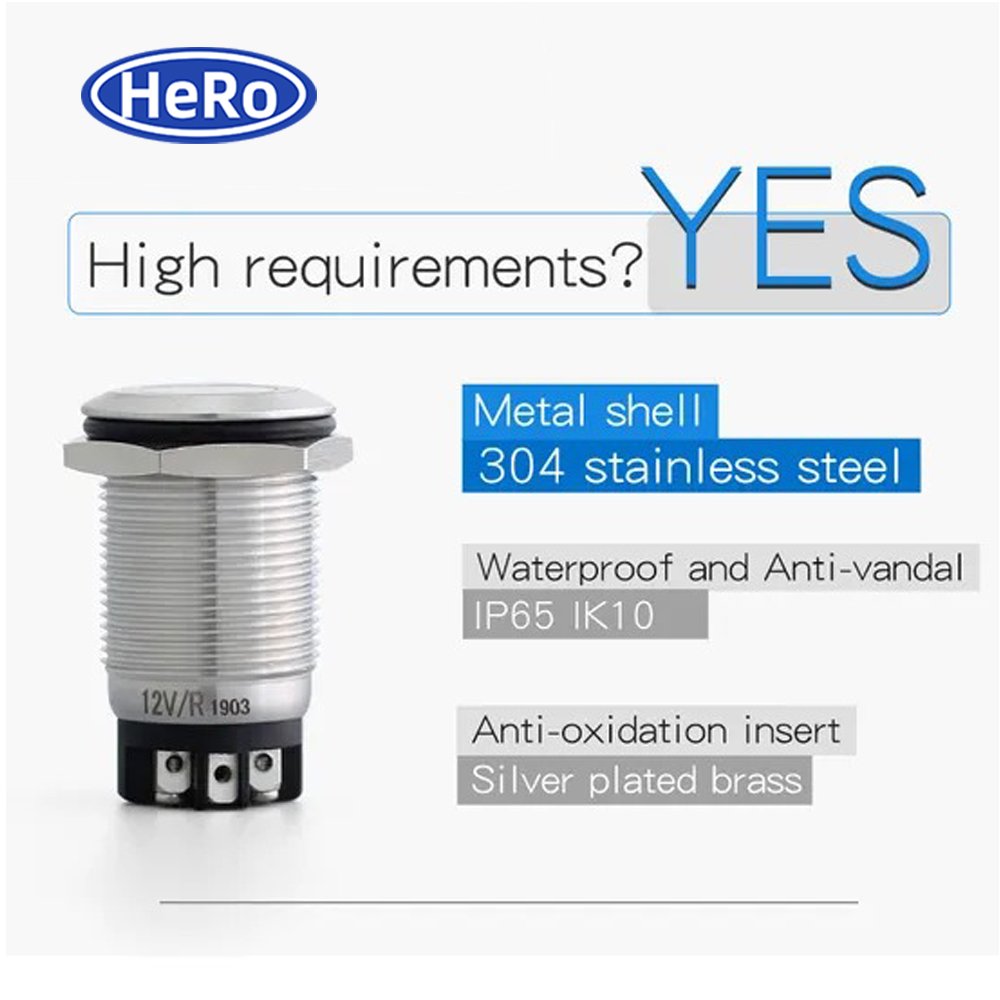

• Premium Material:
  • Body: Nick-plated brass for durability, corrosion resistance, and excellent conductivity.
• High Protection Ratings:
  • IP65: Dustproof and water-resistant, suitable for harsh environments.
  • IK08: Impact-resistant, capable of withstanding mechanical stress.

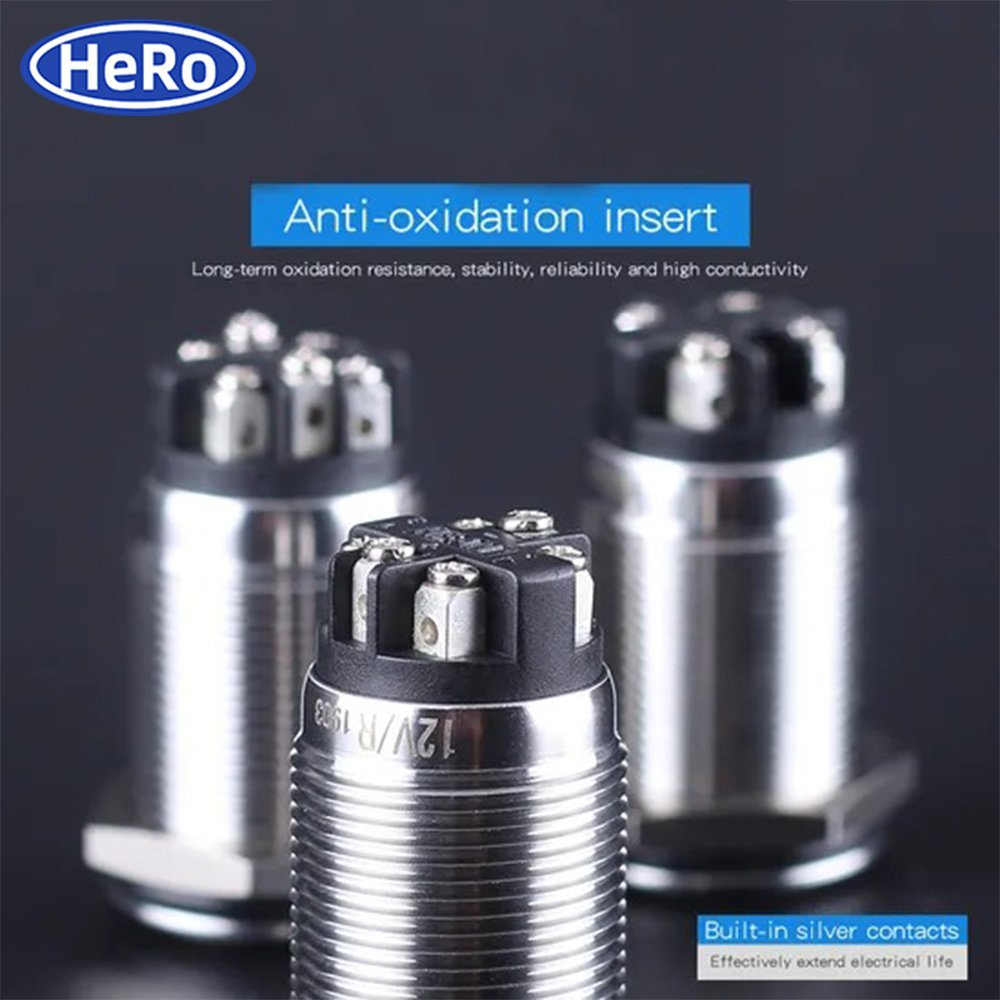

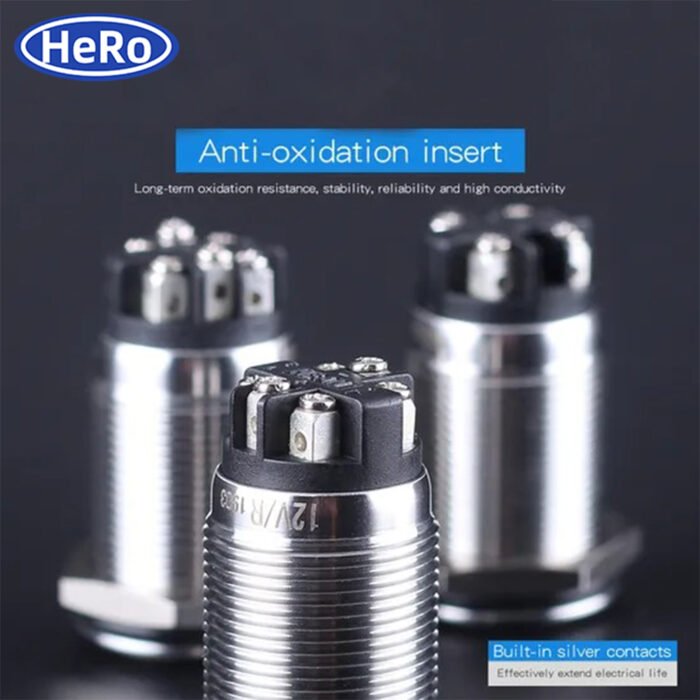

• Contact Configuration: 1 NO + 1 NC (5-pin design) for versatile wiring options.
• Front Shape: Domed design for a modern and professional appearance.

Technical Specifications:

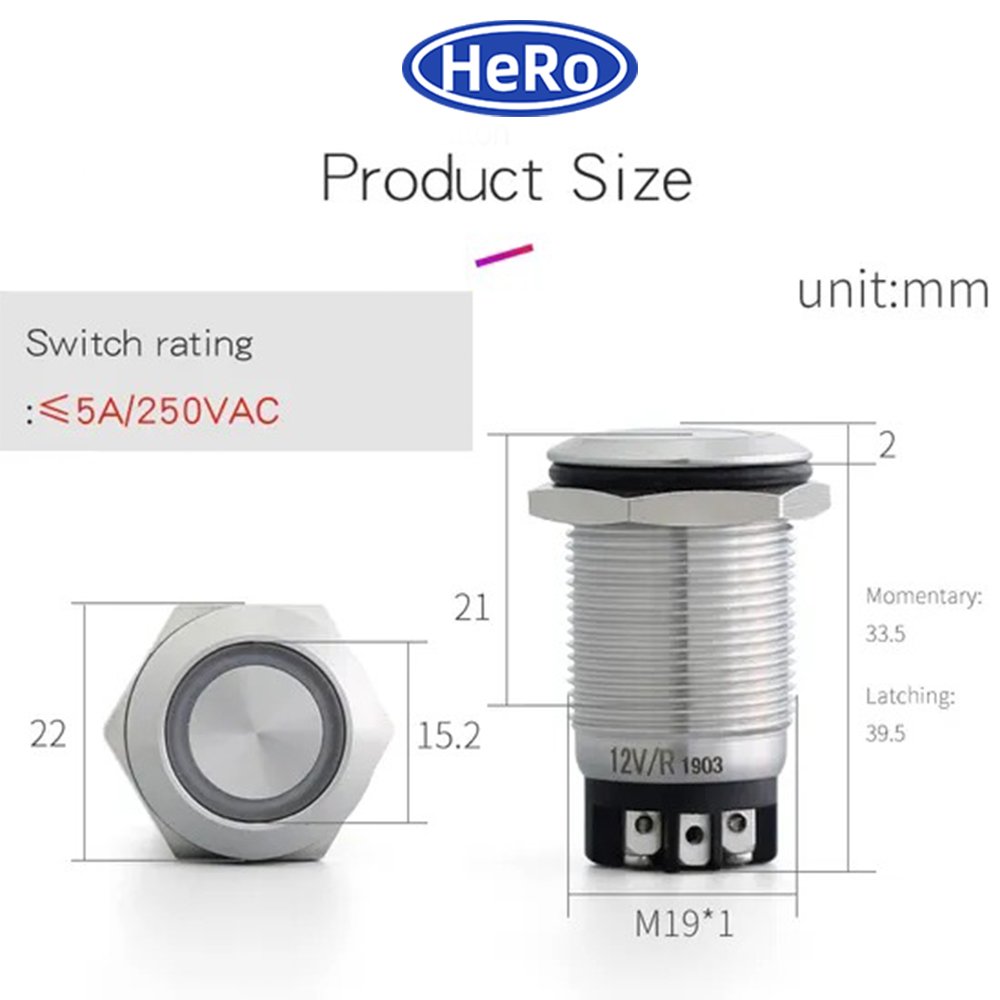

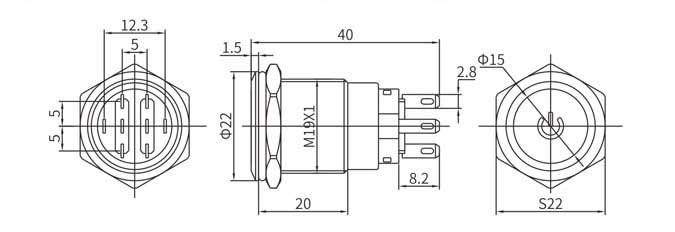

• Diameter: 19mm
• Type:
  • Momentary or Latching (Optional)
  • 1 NO + 1 NC, 5-Pin Design
• Lamp Color Options: Red (R), Green (G), Orange (O), Blue (B), White (W)
• Illumination Type: Dot-style
• Material: Nick-plated Brass
• Protection Ratings:
  • IP65: Dustproof and water-resistant
  • IK08: Impact-resistant
• Voltage Range (Optional):
  • 5-24V
  • 25-48V
  • 110V
  • 220V
• Head Type: Flat Head
• Front Shape: Domed

Functionality and Operation:

• Momentary vs. Latching:
  • Momentary: Activates only when pressed and resets automatically when released. Ideal for reset buttons or temporary operations.
  • Latching: Maintains its state (on/off) after being pressed, requiring another press to toggle the state. Suitable for on/off switches.
• LED Illumination: Provides clear visual feedback, enhancing usability in low-light environments or for status indication.
• Voltage Flexibility: Compatible with a wide range of voltages, ensuring adaptability for both low-voltage and high-voltage systems.
• Contact Configuration: 1 NO + 1 NC (5-pin design) allows for versatile wiring options, making it suitable for complex control systems.

Applications:

• Industrial Machinery: Perfect for control panels, automation systems, and heavy-duty equipment.
• Lighting Systems: Use as an illuminated switch for controlling lights, signage, or display panels.
• Home Appliances: Suitable for smart home systems, kitchen appliances, or security systems.
• Gaming & Custom Projects: Ideal for DIY arcade machines, custom controllers, or hobbyist projects.
• Safety Systems: Excellent for emergency stop buttons or alarm systems due to its durability and visibility.

Package Includes:

• 1x 19mm LED Metal Push Button Switch (Long Type)

Important Notes:

• Voltage Selection: Ensure the selected voltage range matches your application’s requirements to avoid overloading or underpowering the switch.
• Installation: Follow proper installation guidelines to ensure secure mounting and reliable operation.
• Electrical Load: Verify that the switch is compatible with the electrical load of your system to prevent damage or malfunction.
• Safety Precautions: Always disconnect power before installation or maintenance to prevent electrical hazards.
