22mm led Metal Push Button Switch

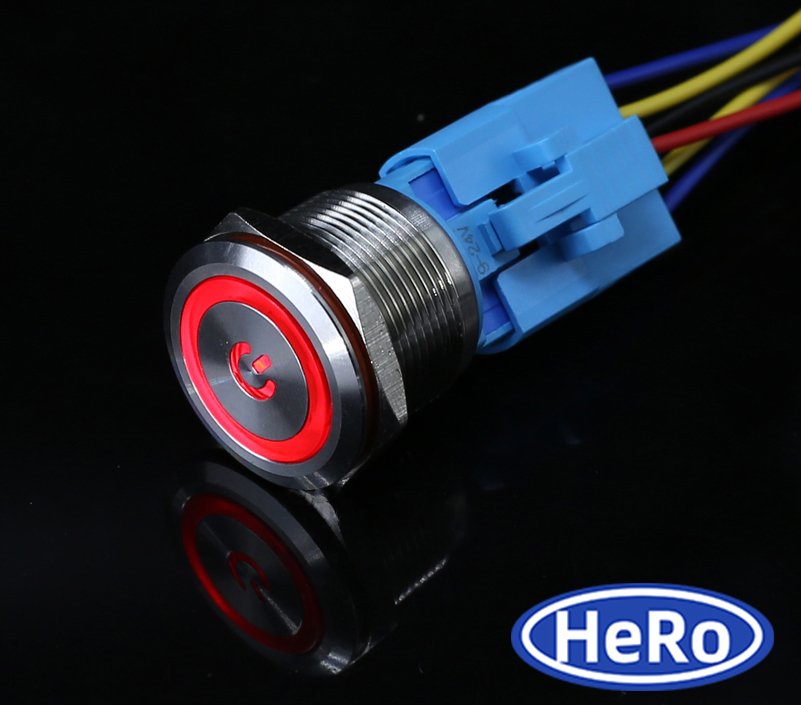

22mm LED Metal Push Button Switch

Product Overview:
The 22mm LED Metal Push Button Switch is a high-performance, durable switch designed for industrial, commercial, and residential applications. Featuring a sleek stainless steel construction, this push button switch combines functionality with aesthetics, making it ideal for use in control panels, machinery, lighting systems, and more. With optional momentary or latching operation, multiple LED colors, and a wide voltage range, this switch offers versatility and reliability for a variety of setups.

Key Features:

• ⚙️ Diameter: 22mm, a standard size for most control panel applications.
• 🔄 Operation Modes: Available in both Momentary and Latching options to suit different functional requirements.
• 💡 LED Illumination:

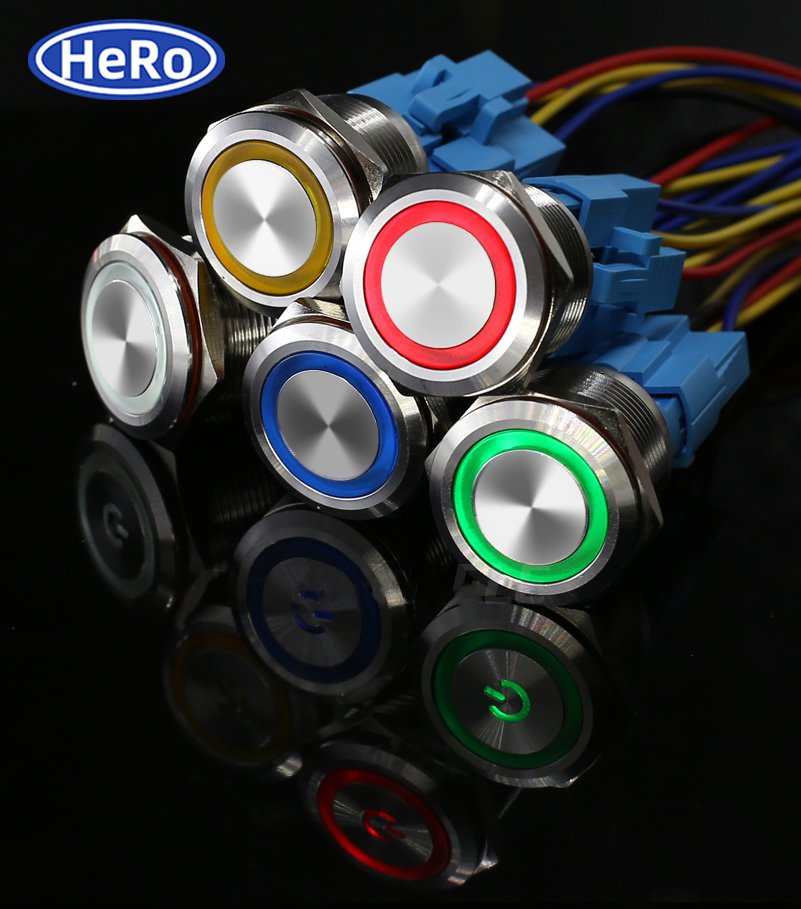

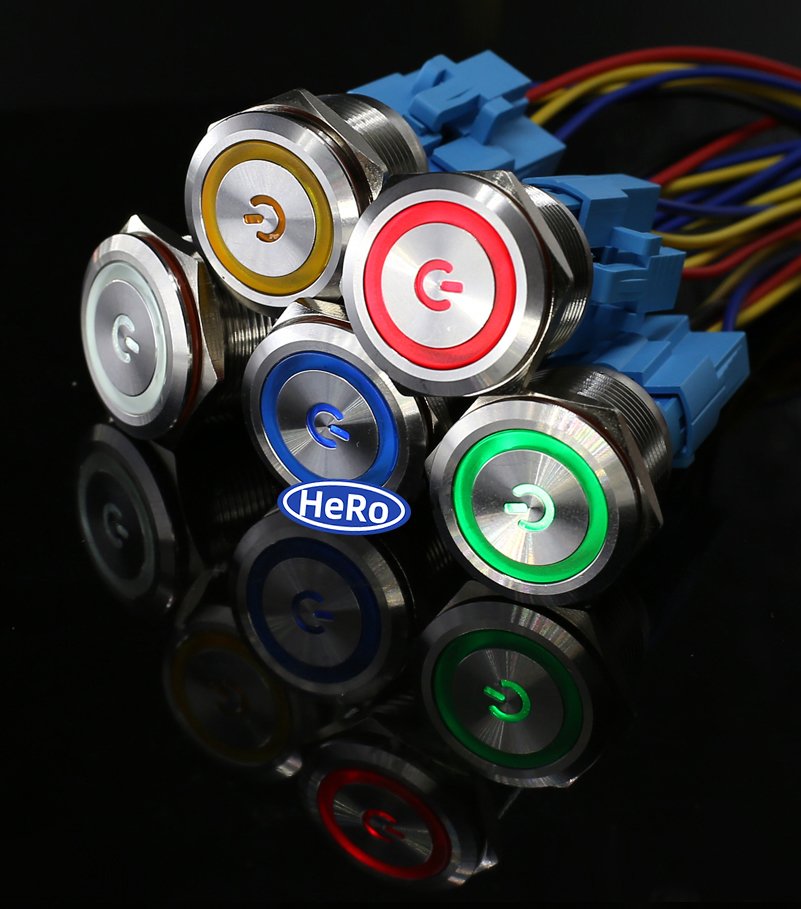

  • Lamp Colors: Red, Green, Yellow, Blue, White
  • Illumination Type: Annular or Dot illumination for enhanced visibility and aesthetic appeal.
  • LED Type: High-brightness cool LED lamp for superior performance.
• ⚡ Voltage Compatibility: Wide voltage range options (3-8V, 9-24V, 25-48V, 110V, 220V) ensure adaptability for various applications.
• 💪 Premium Materials:
  • Body: Stainless steel for durability and corrosion resistance.
  • Contact Components: Aluminum oxide and copper plating for excellent conductivity and longevity.
• 🛡️ High Protection Ratings:
  • IP65: Dustproof and water-resistant, suitable for harsh environments.
  • IK08: Impact-resistant, capable of withstanding mechanical stress.
• 🔧 Contact Configuration: 1 NO + 1 NC (6-pin design) for versatile wiring options.
• 🔍 Front Shape: Domed design for a modern and professional appearance.

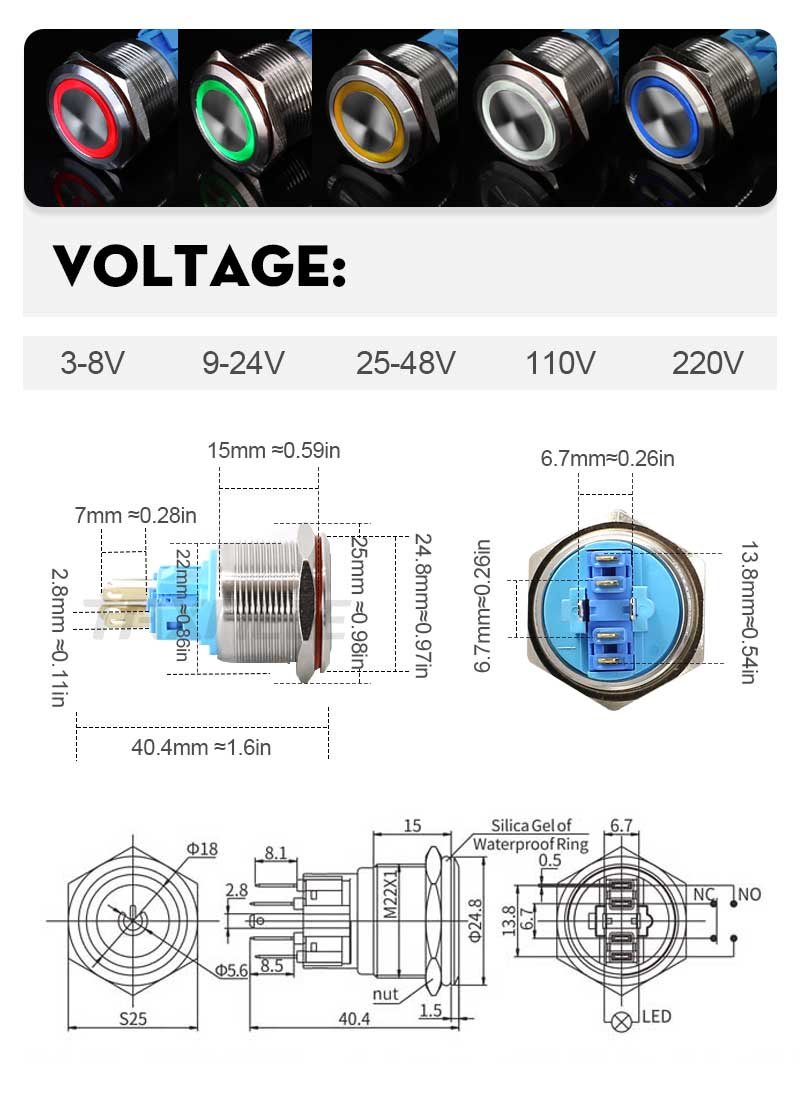

Technical Specifications:

• 📦 Diameter: 22mm
• ⚙️ Type:
  • Momentary or Latching (Optional)
  • 1 NO + 1 NC, 6-Pin Design
• ⚡ Rated Insulation Voltage: AC250V
• 🔥 Fusing Current: 5A
• 💡 Lamp Color Options: Red, Green, Yellow, Blue, White
• 🔍 Illumination Type: Annular or Dot
• 🛠️ Materials:
  • Stainless Steel (Body)
  • Aluminum Oxide and Copper Plating (Contact Components)
• 🛡️ Protection Ratings:
  • IP65: Dustproof and water-resistant
  • IK08: Impact-resistant
• ⚡ Voltage Range (Optional):
  • 3-8V
  • 9-24V
  • 25-48V
  • 110V
  • 220V
• 🔍 Head Type: Flat Head
• 🔍 Front Shape: Domed

Functionality and Operation:

• 🔄 Momentary vs. Latching:
  • Momentary: Activates only when pressed and resets automatically when released. Ideal for reset buttons or temporary operations.
  • Latching: Maintains its state (on/off) after being pressed, requiring another press to toggle the state. Suitable for on/off switches.
• 💡 LED Illumination: Provides clear visual feedback, enhancing usability in low-light environments or for status indication.
• ⚡ Voltage Flexibility: Compatible with a wide range of voltages, ensuring adaptability for both low-voltage and high-voltage systems.
• 🔧 Contact Configuration: 1 NO + 1 NC (6-pin design) allows for versatile wiring options, making it suitable for complex control systems.

Applications:

• 🏭 Industrial Machinery: Perfect for control panels, automation systems, and heavy-duty equipment.
• 💡 Lighting Systems: Use as an illuminated switch for controlling lights, signage, or display panels.
• 🏠 Home Appliances: Suitable for smart home systems, kitchen appliances, or security systems.
• 🎮 Gaming & Custom Projects: Ideal for DIY arcade machines, custom controllers, or hobbyist projects.
• 🚨 Safety Systems: Excellent for emergency stop buttons or alarm systems due to its durability and visibility.

Package Includes:

• 1x 22mm LED Metal Push Button Switch

Important Notes:

• ⚠️ Voltage Selection: Ensure the selected voltage range matches your application’s requirements to avoid overloading or underpowering the switch.
• ⚙️ Installation: Follow proper installation guidelines to ensure secure mounting and reliable operation.
• ⚡ Electrical Load: Verify that the switch is compatible with the electrical load of your system to prevent damage or malfunction.
• 🛡️ Safety Precautions: Always disconnect power before installation or maintenance to prevent electrical hazards.
