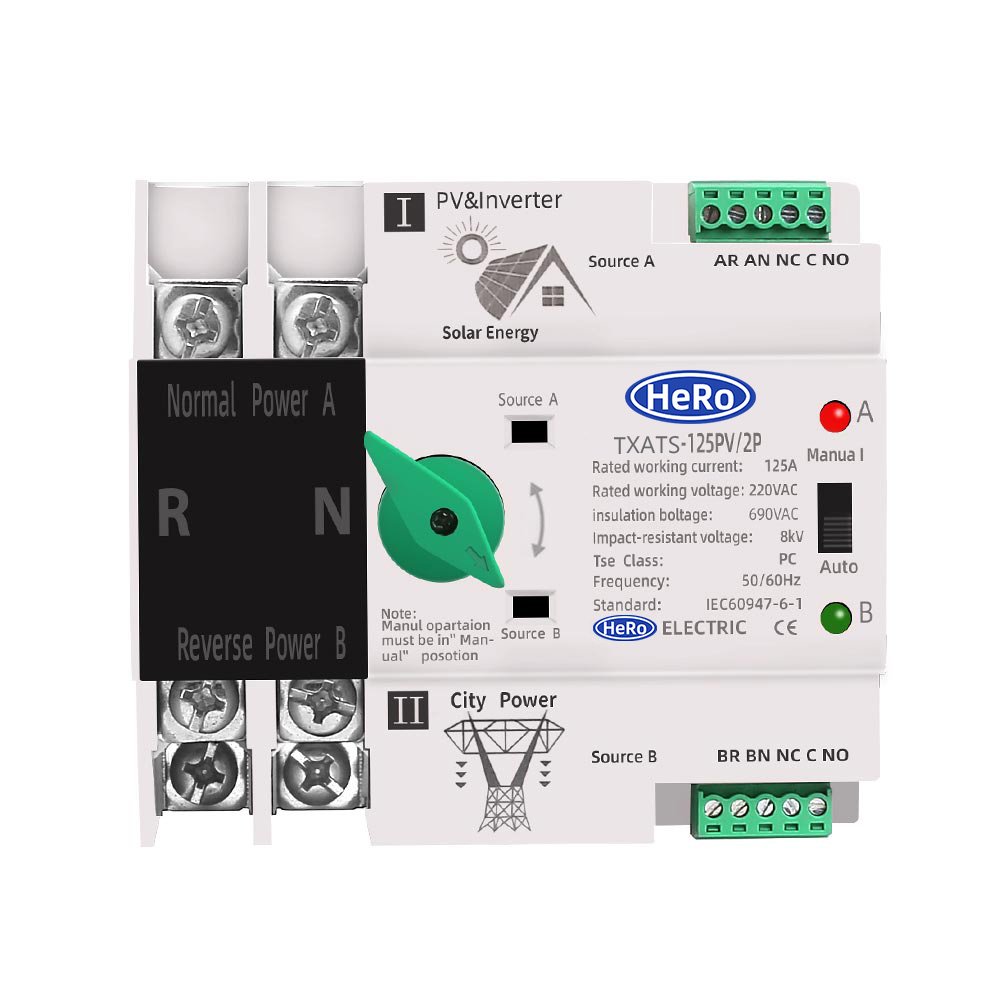

2P 3P 4P Din Rail ATS PV Inverter Dual Power Automatic Transfer Switch
Product Overview:
This specialized Din Rail Automatic Transfer Switch (ATS) is designed specifically for photovoltaic (PV) solar systems and inverters. It allows seamless automatic switching between a solar inverter (Source A) and utility grid power (Source B), ensuring an uninterrupted power supply. Available in 2P, 3P, and 4P versions with current ratings of 63A, 100A, and 125A, this switch is ideal for smart energy management in solar-powered homes and facilities.
Key Features:
- 🔋 Photovoltaic Support: Specifically designed for PV and inverter systems as main power (Source A)
- ⚡ Rapid Switching: PC-level switching with response time < 8ms ensures uninterrupted power delivery

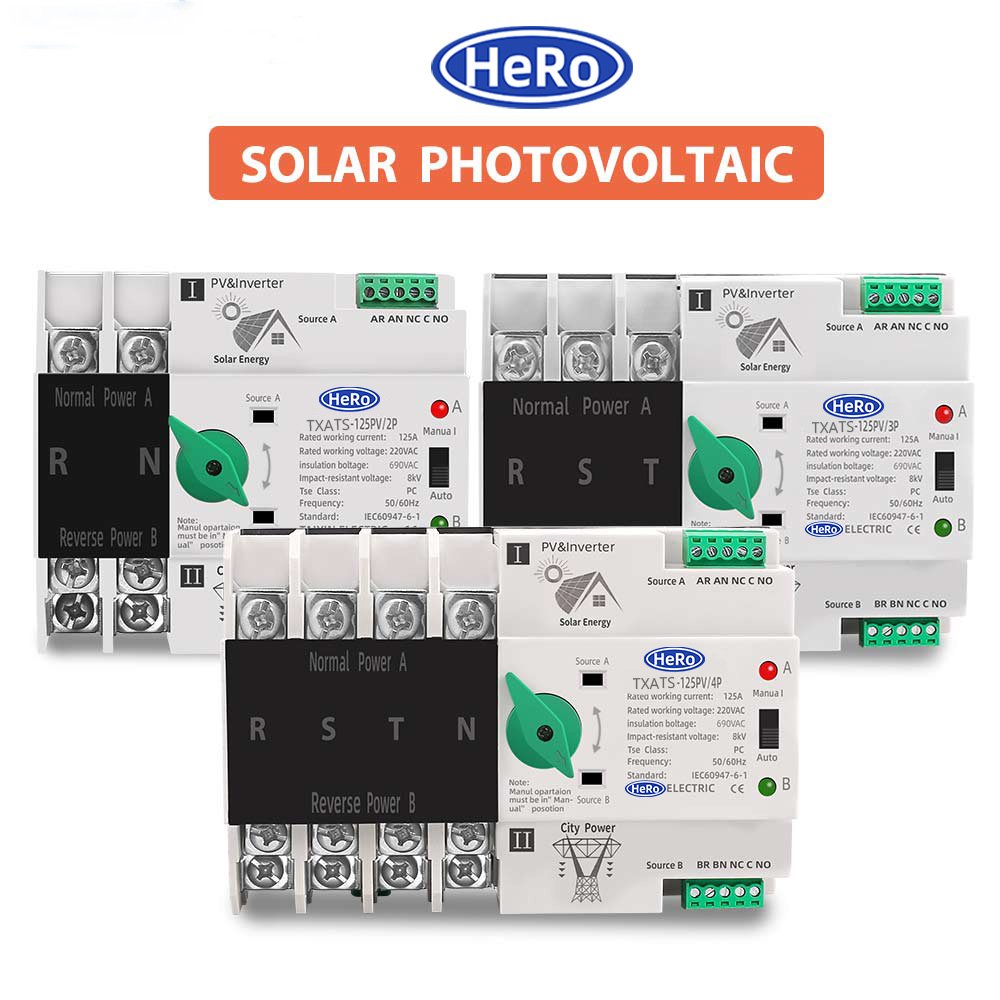

- 🔧 Flexible Configuration: Choose from 2P, 3P, or 4P models with ratings of 63A, 100A, or 125A
- 🌞 Solar-Compatible: Ideal for homes and facilities powered by solar energy and inverters
- 🛠️ Easy Installation: Din rail mounting for quick setup in distribution boxes
Specifications:
- Type: Automatic Transfer Switch (ATS)
- System: PV Inverter to Utility Power
- Pole Options: 2P / 3P / 4P
- Current Ratings: 63A, 100A, 125A
- Switching Time: Less than 8 milliseconds
- Installation: Din Rail
- Application: Photovoltaic solar systems and inverter-based power switching
Important Notes:
- ⚠️ Source B (utility power) must always be active when using the PV type ATS.
- ⚠️ Designed only for inverter (Source A) to utility grid (Source B). Not suitable for city power & generator combinations.
- ⚠️ Ensure stable voltage from the inverter to avoid switching issues.
Applications:
- ✔️ Residential and commercial solar energy systems
- ✔️ Off-grid and hybrid inverter setups
- ✔️ Backup power management in PV-based installations
Package Includes:
- ✅ 1 × PV Inverter Automatic Transfer Switch (model as selected)
Note: For safe operation, ensure Source B is always powered. Not compatible with generator-based configurations.
