2P 4P 16A 20A 25A 32A 50A 40A 63A AC 220V 50 60Hz Din Rail Household Modular AC Contactor Switch Controller DIY Smart Home Hotel

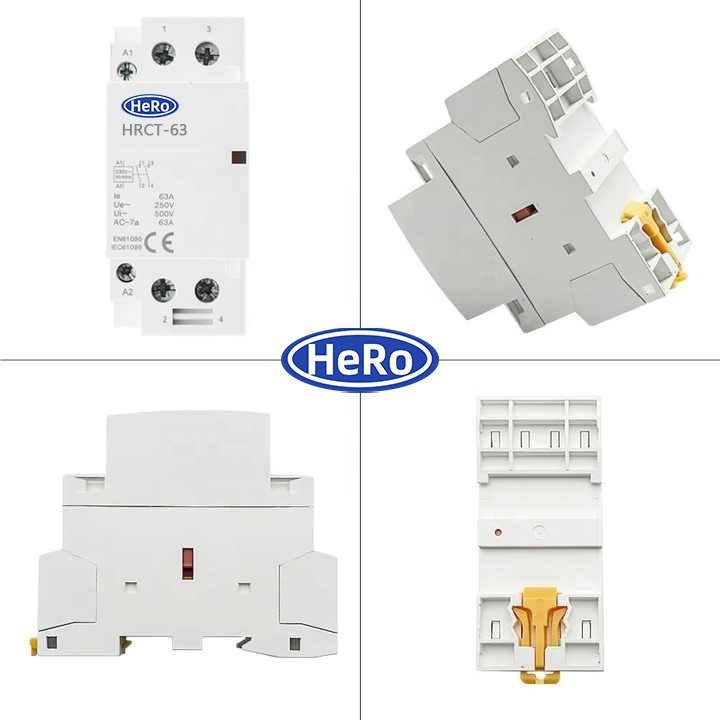

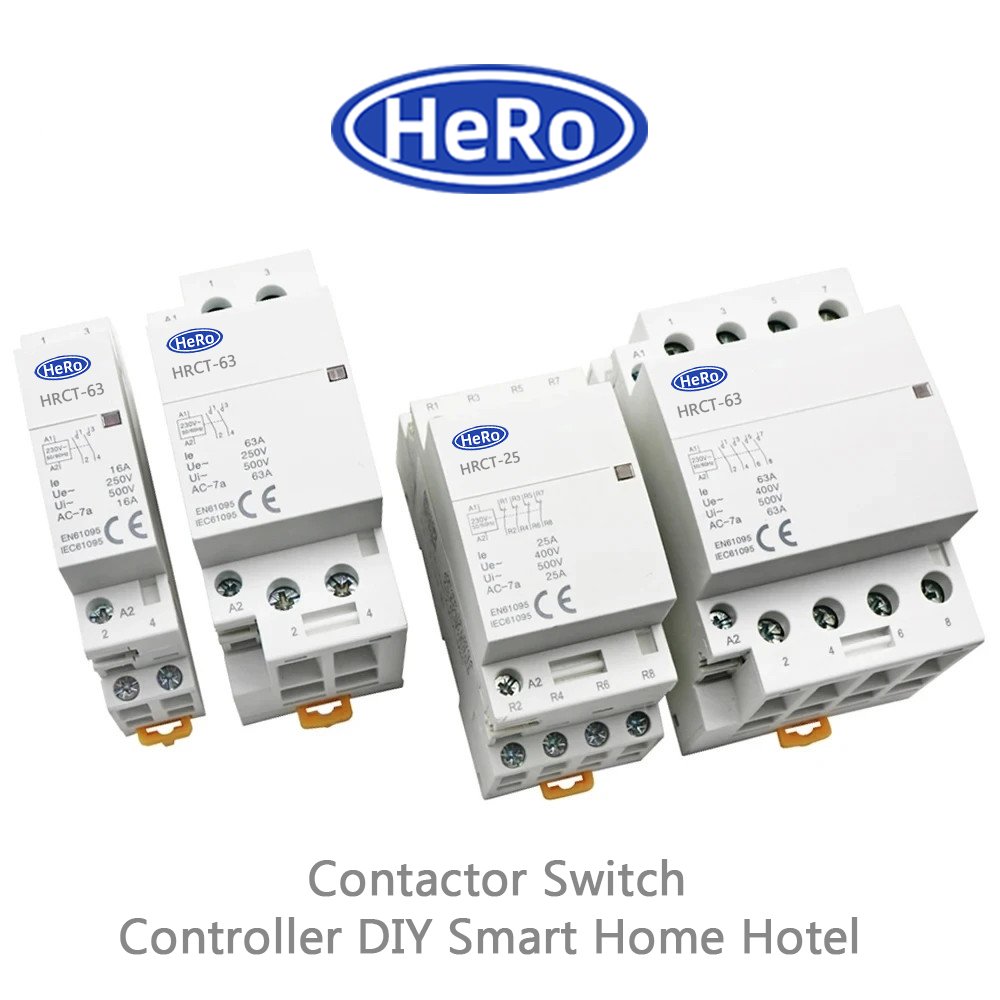

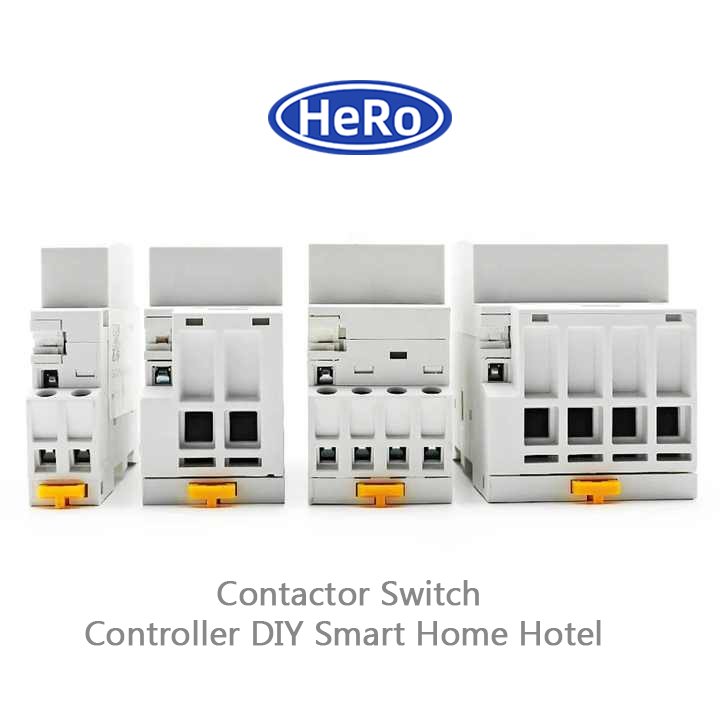

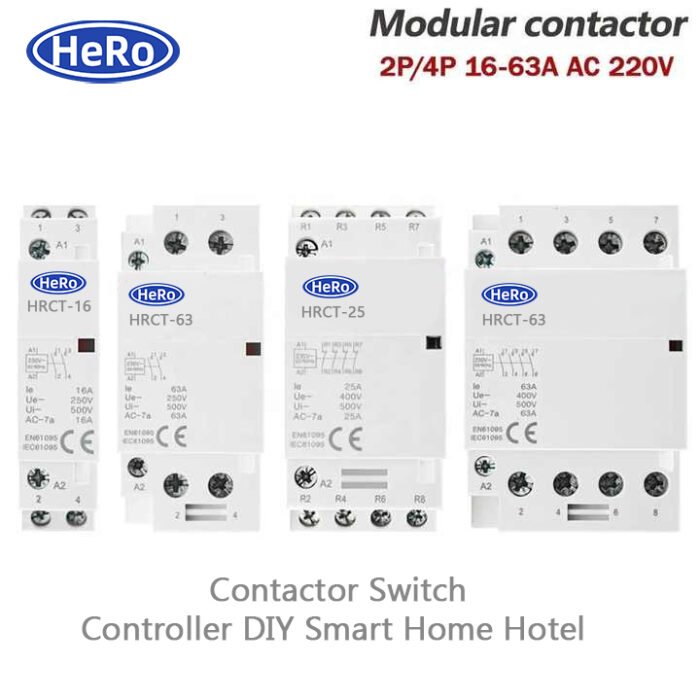

HRCT Household Modular AC Contactor Switch Controller

Product Overview:

The HRCT Household Modular AC Contactor is a versatile and reliable switch controller designed for both single-phase and three-phase applications. With a wide range of current ratings (16A to 63A) and support for 2P/4P configurations , this device is perfect for automating power connections in residential, commercial, and smart home environments. Its compact design, compatibility with DIN rail mounting, and compliance with international standards make it an ideal choice for modern electrical systems.

Key Features:

• ⚡ Versatile Voltage Compatibility: Operates at **AC220V/230V, 50/60Hz**, ensuring compatibility with global power systems.
• ⚙️ Wide Current Range: Available in **16A, 20A, 25A, 32A, 40A, and 63A** versions to meet diverse load requirements.
• 🔌 Multi-Pole Design: Supports **2P (Single Phase)** and **4P (Three Phase)** configurations for flexibility in circuit types.
• 🛡️ Reliable Breaking Capacity: Designed for circuits with a breaking capacity of up to **6kA**, ensuring safe operation under fault conditions.
• 🌍 Global Applications: Suitable for use in homes, apartments, hotels, and other environments requiring automatic power connection or disconnection.
• 📦 Compact and Modular Design: Compatible with DIN rail mounting, making it easy to integrate into electrical panels.

Technical Specifications:

Functionality and Operation:

• ⚡ Automatic Power Control: Designed for remote connection or disconnection of circuits, enabling automation in homes and hotels.
• ⚙️ Flexible Configuration: Supports both **single-phase (2P)** and **three-phase (4P)** applications, ensuring adaptability to various electrical setups.
• 🛡️ Breaking Capacity: Capable of handling circuits with a breaking capacity of up to **6kA**, providing robust protection against overloads and short circuits.
• 🌍 Environmental Adaptability: Operates reliably in ambient temperatures ranging from **-5°C to +40°C** and altitudes up to **2000m**.

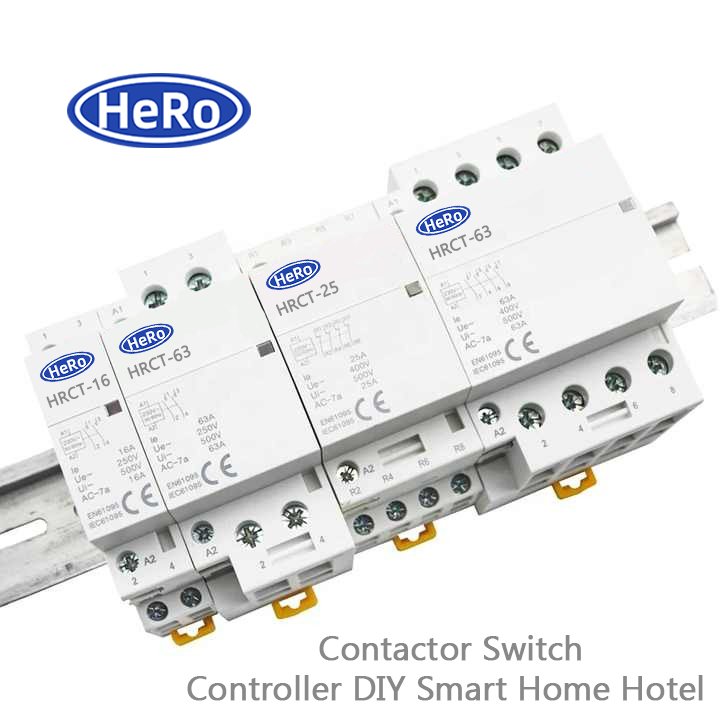

• 🔧 DIN Rail Compatibility: Compact modular design allows for easy installation on standard DIN rails, saving space and simplifying wiring.

Applications:

• 🏠 Residential Use: Ideal for automating lighting, HRAC systems, water heaters, and other household appliances.
• 🏢 Commercial Buildings: Perfect for controlling lighting, elevators, and HRAC systems in offices and hotels.
• 🏭 Industrial Applications: Suitable for small-scale machinery, conveyor systems, and motor controls.
• 🌱 Renewable Energy Systems: Can be used in solar inverters or wind turbines for load management and automation.
• 🌊 Smart Home Integration: Enables remote control of electrical devices, enhancing convenience and energy efficiency.

Normal Working and Installation Conditions:
Ambient Temperature:
Operating range: -5°C to +40°C
Average temperature within 24 hours: ≤ 35°C
Altitude:
Maximum altitude: 2000m
Humidity:
Relative humidity should not exceed 50% at +40°C .
At lower temperatures, higher humidity is allowed.
Monthly average relative humidity in the wettest month should not exceed 90% at +25°C .
Pollution Class: Class 2
Installation Condition: Class II
Application Instructions:
Pre-Installation Check:
Verify that the contactor meets the scope of application and working conditions before installation.
Installation Process:
Pull down the motion-stopping component and place the contactor on the DIN rail.
Push up the motion-stopping component to secure the contactor in place.
Removal Process:
Pull down the motion-stopping component to remove the contactor from the DIN rail.
Package Includes:

• 1x HRCT Household Modular AC Contactor (Model: HRCT 2P/4P, Current Rating: 16A/20A/25A/32A/40A/63A)

Packaging Details:
Single Package Size: To be confirmed by the manufacturer (XX cm).
Single Gross Weight: To be confirmed by the manufacturer (XX kg).
Important Notes:

• ⚠️ Operating Parameters: Ensure the device is used within the specified voltage (AC220V/230V) and current ranges to avoid damage or malfunction.
• 🛡️ Safety Precautions: Always disconnect power before installation or maintenance to prevent electrical hazards.
• 🔧 Installation Guidelines: Follow the manufacturer’s instructions for proper wiring and mounting to ensure optimal performance.
• 🌍 Certification Compliance: Verify that the product meets local regulatory requirements before installation.
