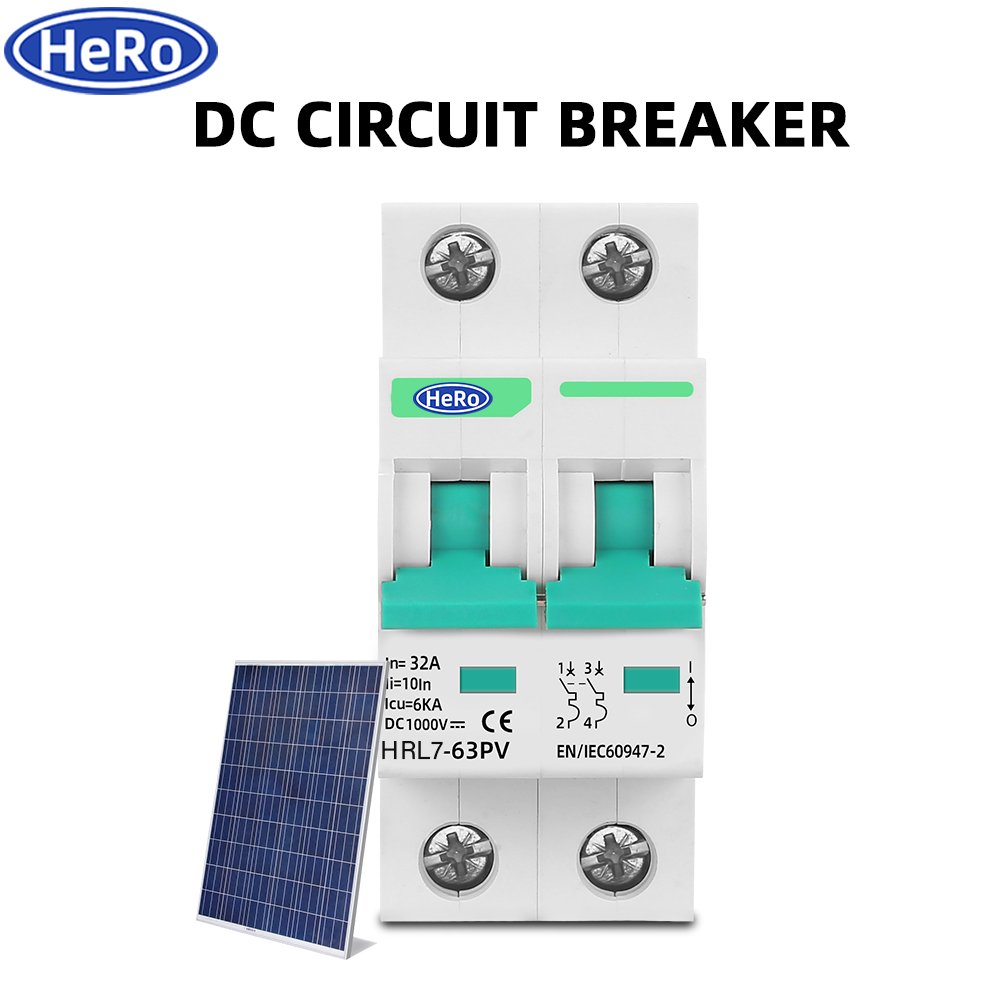

2P DC 1000V L7 MCB Solar Mini Circuit Breaker Overload Protection Battery Switch 10A 16A 20A 25A 32A 40A 50A 63A Photovoltaic PV

Circuit Breaker

Description:

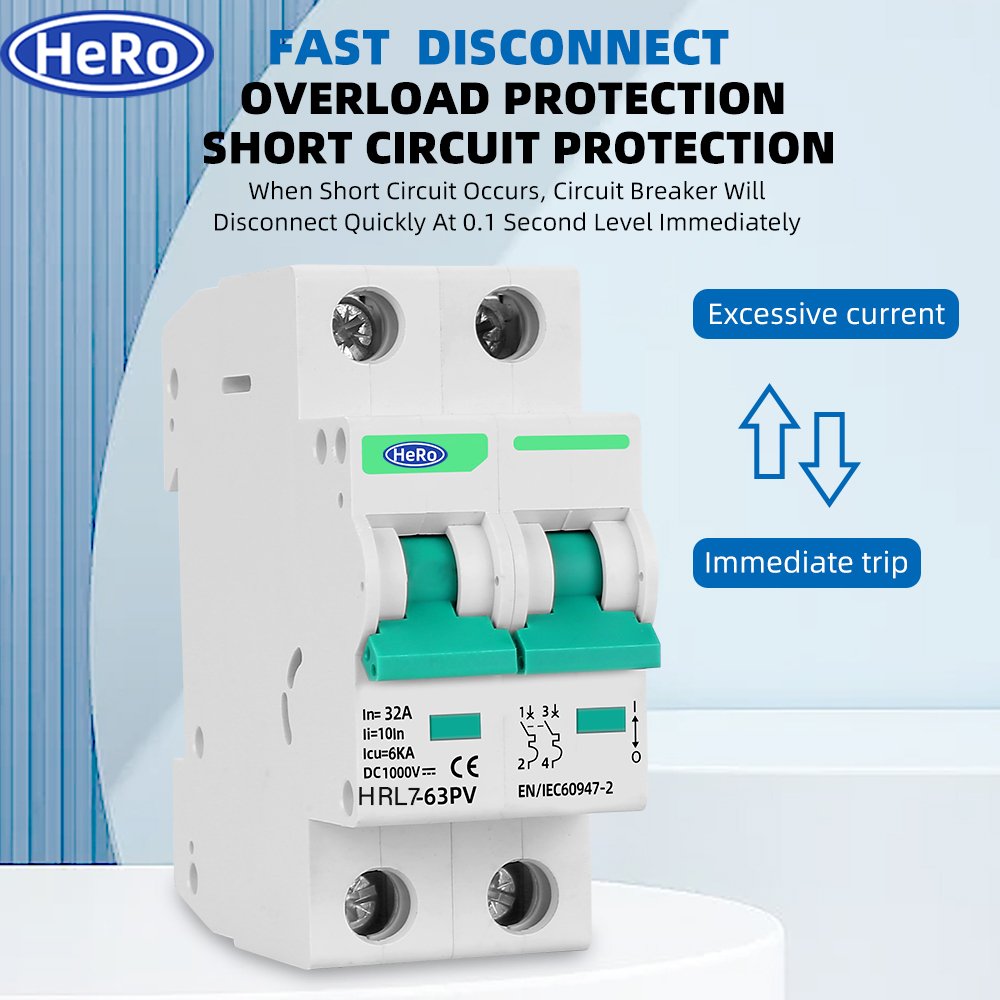

The 2P DC 1000V L7 MCB Solar Mini Circuit Breaker provides essential overload and short circuit protection for DC distribution systems and solar photovoltaic (PV) installations. It is designed to protect solar batteries and components from electrical faults, ensuring safety and longevity in photovoltaic systems. Available in various current ratings (10A-63A) and with a high breaking capacity of 6kA, it’s the ideal choice for modern solar energy systems.

For more inquiries, you can send them via the form.

Category: Circuit Breaker Tags: 2P DC 1000V L7, Battery Switch 10A 16A 20A 25A 32A 40A 50A 63A, MCB Solar Mini Circuit Breaker, Photovoltaic PV Brand: hero

Let's talk

Description
Reviews (0)

2P DC 1000V L7 MCB Solar Mini Circuit Breaker Overload Protection Battery Switch 10A 16A 20A 25A 32A 40A 50A 63A Photovoltaic PV

Product Features:

Rated Operating Voltage: DC 12V-1000V
Rated Current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Overload Protection: Yes
Ultimate Breaking Capacity: 6kA
Curve Type: C
Mechanical Life: 20,000 cycles
Electric Life: 10,000 cycles
Standard: IEC/EN 60947-2
Application: Solar PV Systems, DC Distribution Systems

Technical Specifications:

Rated Insulation Voltage (Ui): 1200VDC
Ultimate Breaking Capacity (Icu): 6kA
Curve Type: C
Mechanical Life: 20,000 cycles
Electric Life: 10,000 cycles

Description:
The 2P DC 1000V L7 MCB Solar Mini Circuit Breaker provides essential overload and short circuit protection for DC distribution systems and solar photovoltaic (PV) installations. It is designed to protect solar batteries and components from electrical faults, ensuring safety and longevity in photovoltaic systems. Available in various current ratings (10A-63A) and with a high breaking capacity of 6kA, it’s the ideal choice for modern solar energy systems.

Efficient protection for your solar systems and DC applications!
