⚡ 2P DC 600V Solar Mini Circuit Breaker Battery Switch 125A 100A DC MCB for Photovoltaic PV System
✔️ Product Features:
- 🔌 Rated Operating Voltage: DC 12V-600V
- ⚡ Rated Current: 1A – 125A
- 🔒 Overload Protection: Yes
- ⚡ Ultimate Breaking Capacity: 10kA
- 🔧 Curve Type: C
- 💡 Mechanical Life: 20,000 cycles
- ⚡ Electric Life: 10,000 cycles
- 🌍 Standard: IEC/EN 60947-2
- ✅ Application: Solar PV Systems, DC Distribution Systems
🔧 Technical Specifications:
- Rated Insulation Voltage (Ui): 800VDC
- Ultimate Breaking Capacity (Icu): 10kA
- Curve Type: C
- Mechanical Life: 20,000 cycles
- Electric Life: 10,000 cycles
🌞 Description:

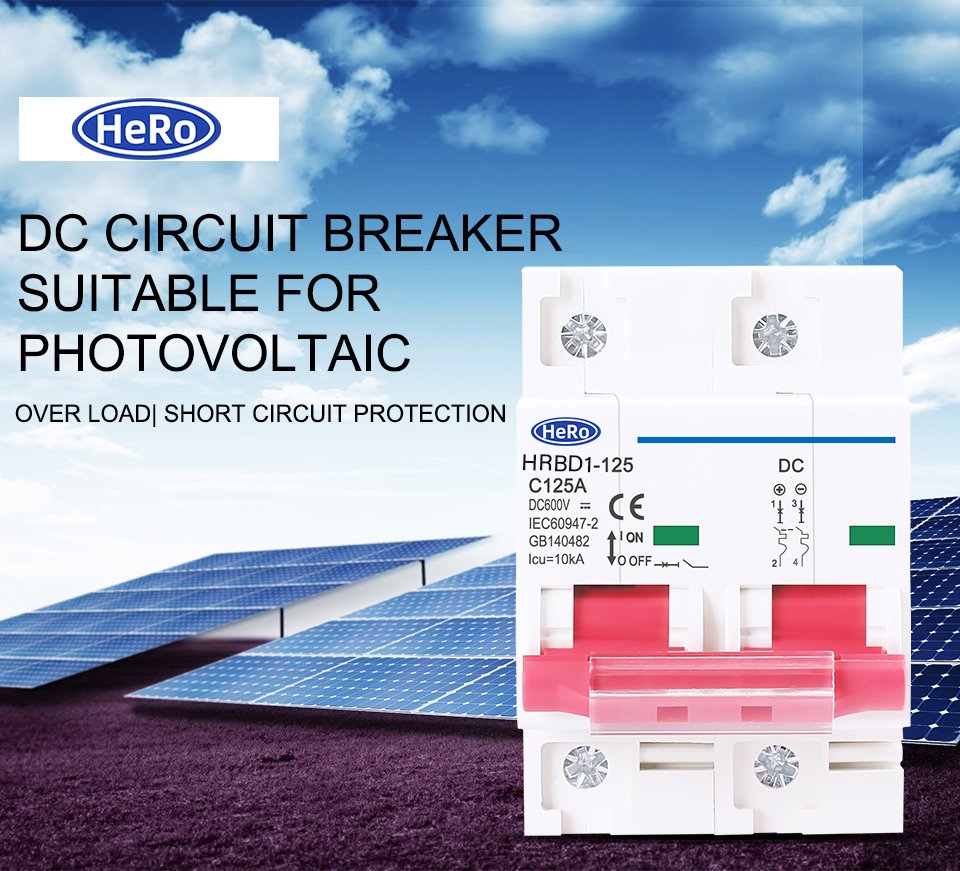

The 2P DC 600V Solar Mini Circuit Breaker is designed for DC distribution systems and photovoltaic (solar) energy installations. It offers essential overload and short circuit protection for solar batteries and equipment, ensuring reliable performance and safety. With a rated current of up to 125A and a high breaking capacity of 10kA, this breaker is an ideal solution for solar power systems. Its compact design and high durability make it a perfect fit for modern photovoltaic systems.
⚡ Reliable protection for your solar systems and DC applications!
