380V 100A 3 Phase 4 Wire Energy Meter – LCD/Analog – TXM303 Series
Product Overview:
This multifunctional 3-phase 4-wire energy meter is available in three variations: digital LCD (TXM303A), analog counter (TXM303B), and full multifunction LCD (TXM303C). Suitable for accurate energy tracking in industrial, commercial, or residential settings, the meter supports active and reactive energy monitoring, voltage, current, power factor, and frequency measurement.

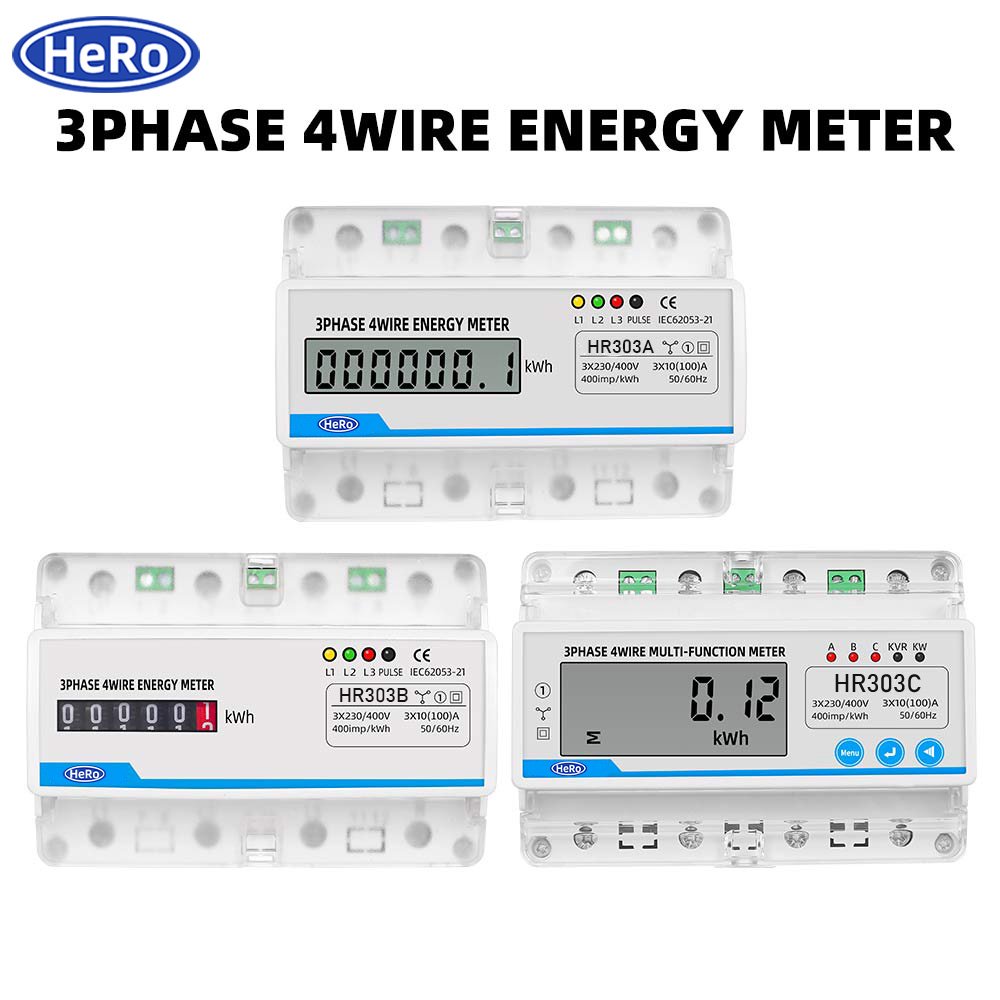

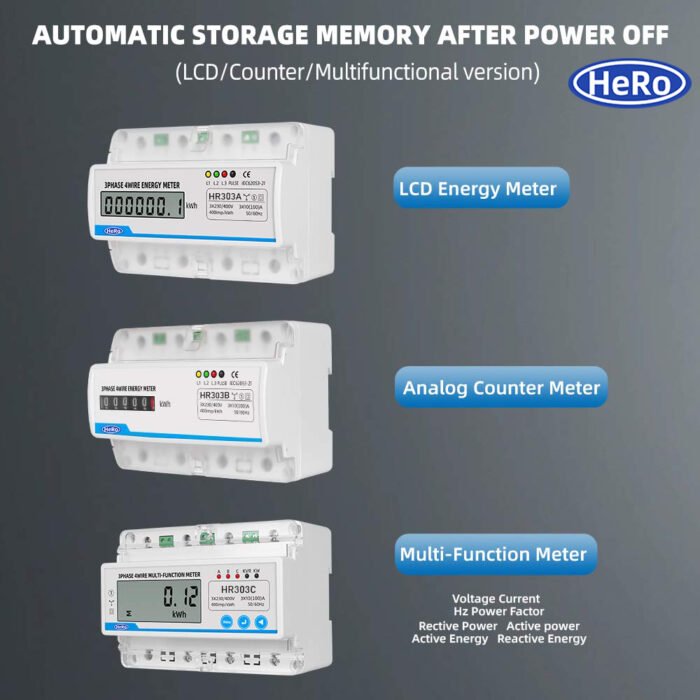

Available Versions:
- TXM303A: LCD Digital Energy Meter – Basic energy measurement only
- TXM303B: Analog Counter Energy Meter – Mechanical display for KWh
- TXM303C: LCD Multifunction Meter – Advanced real-time data including bidirectional energy and power quality metrics
Key Features:
- ⚡ Voltage Range: 3 × 220/380V or 3 × 230/400V
- 🔌 Current Range: 3 × 10(100A)

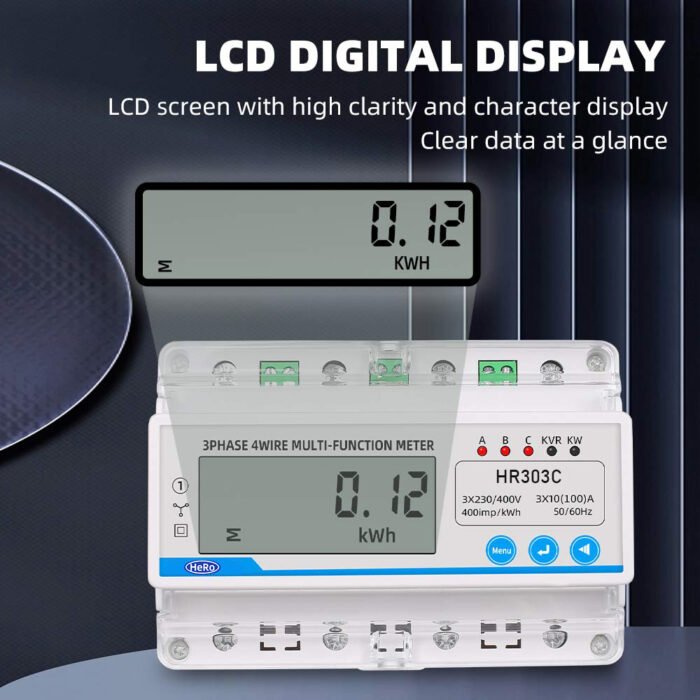

- 📟 Display: LCD (6+1 or 6+2 digits) or Analog Counter (5+1 digits)
- 🔁 Multifunction Version (TXM303C): Shows KWh, voltage, current, power factor, frequency, reactive and active power

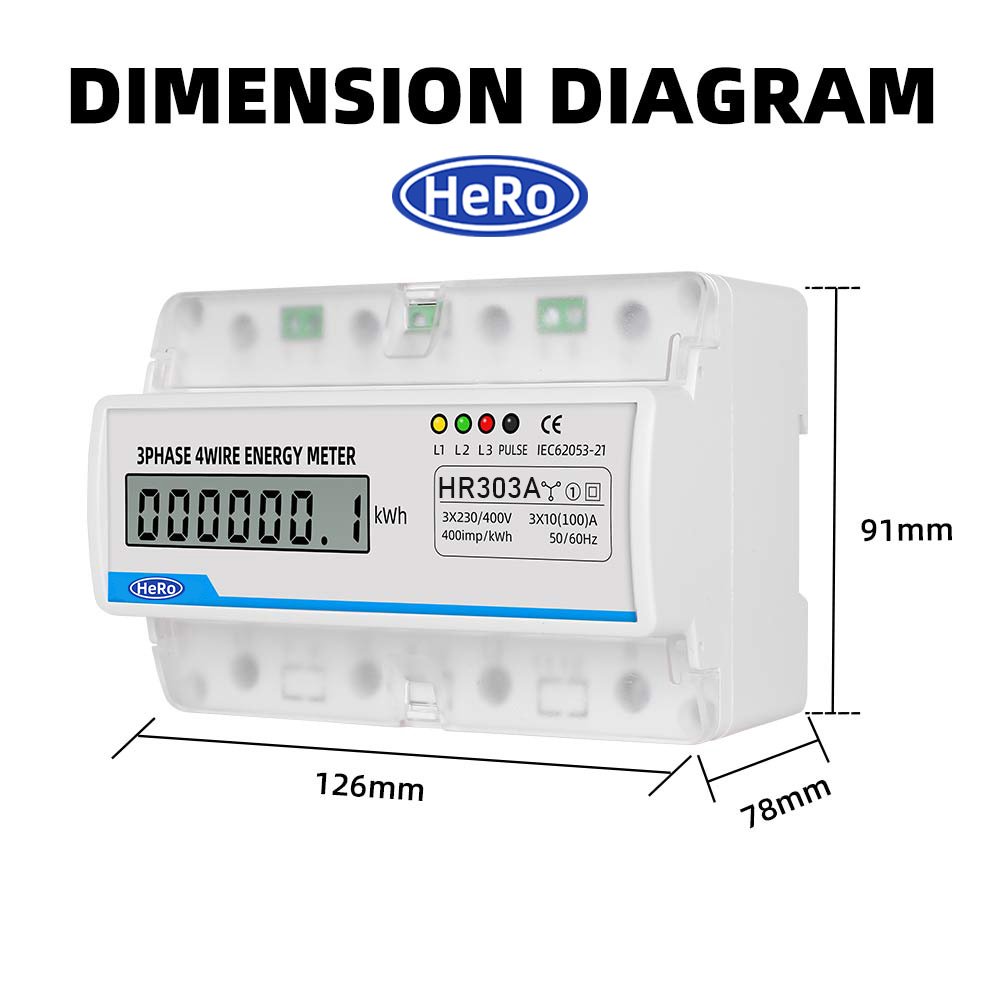

- 🛠️ DIN Rail Installation: Compact design for standard 35mm DIN rail mounting
Technical Specifications (All Models):
| Accuracy Level | Class 1.0 |
| Frequency | 50/60 Hz |
| Constant Pulse | 400 imp/kWh |
| Power Consumption | ≤2W / 10VA |
| Starting Current | 0.004Ib |
| Operating Temp | -20°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Operating Voltage Range | 0.9 – 1.1 Rated Voltage |
| Utmost Voltage | 0.8 – 1.15 Rated Voltage |
Applications:
- 🏢 Commercial and industrial energy monitoring
- 🏠 Residential 3-phase electricity metering
- 🔧 Solar and inverter power systems (TXM303C)
