6IN1 Digital Display Voltmeter Ammeter Current Voltage Frequency Energy Meter AC monitor 100A KWH Signal Light lndicator 22MM

6IN1 Digital Display Voltmeter Ammeter – Current, Voltage, Frequency & Energy Meter

Product Overview:

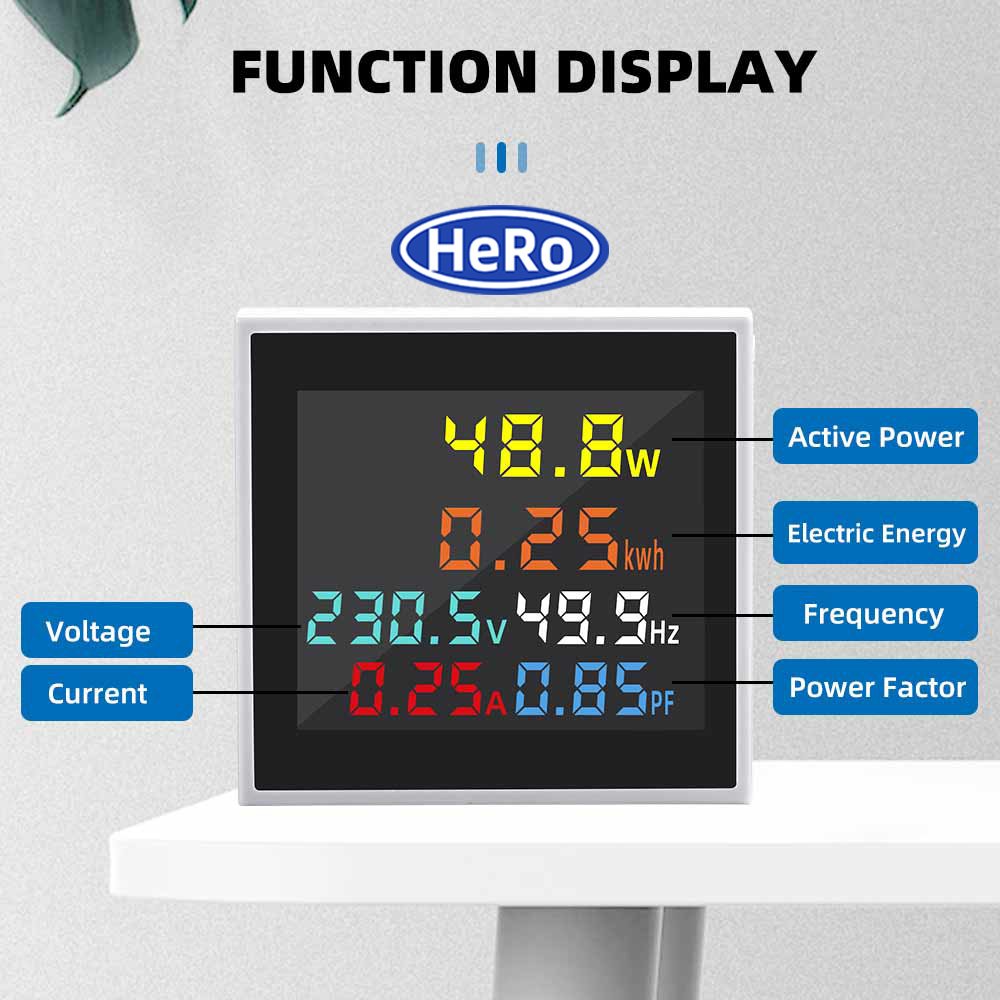

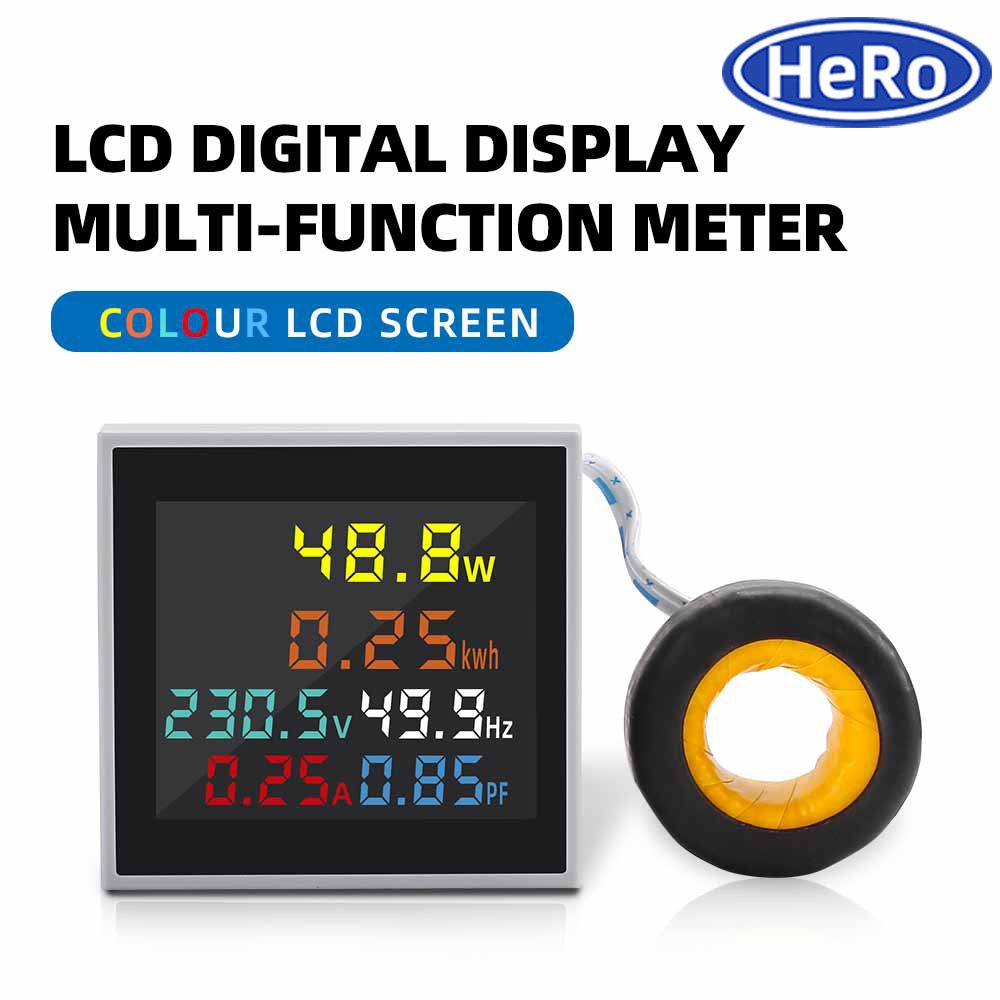

This multifunctional 6-in-1 digital meter allows you to measure and display six crucial electrical parameters in real-time. It supports AC voltage, AC current, active power, power factor, frequency, and electric energy, making it an ideal choice for both home and industrial applications. The high-definition LCD color display ensures that all readings are clear and easy to monitor. With its compact design (22mm hole diameter), this meter is perfect for DIN rail installations and tight spaces.

Key Features:

• ⚡ 6-in-1 Measurement: Simultaneously measures AC Voltage, Current, Active Power, Power Factor, Frequency, and Electric Energy.
• 💡 High-Resolution LCD Display: Clear, high-definition color screen for easy reading.

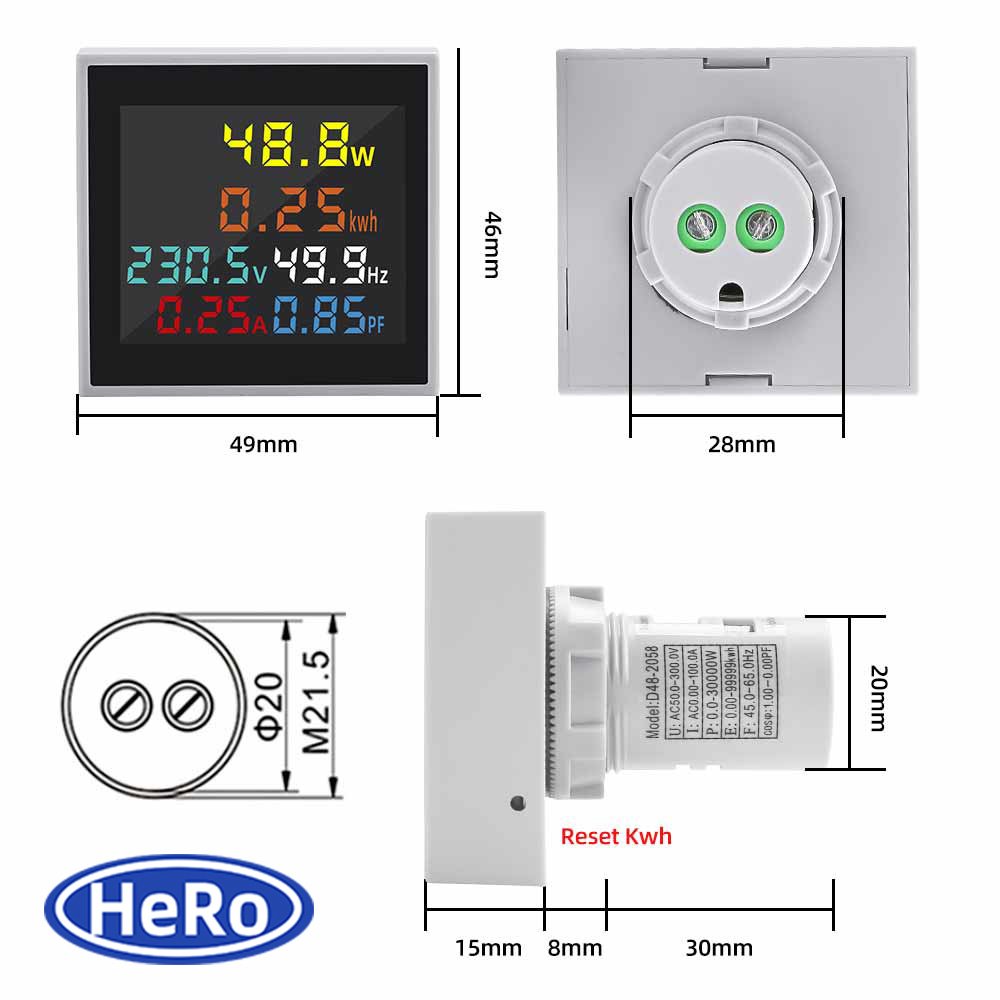

• 🛠️ Compact Design: Fits into a 22mm diameter hole for easy installation.
• 🔋 Energy Monitoring: Tracks electric energy usage with automatic saving and reset functionality.
• 🔧 Multiple Voltage and Current Ranges: Supports AC voltage (50-300V or 250-450V) and current (0.0-99.99A).
• ⏱️ Fast Measurement Speed: Displays readings every 0.5 seconds (2 times per second).

Specifications:

Installation and Application:

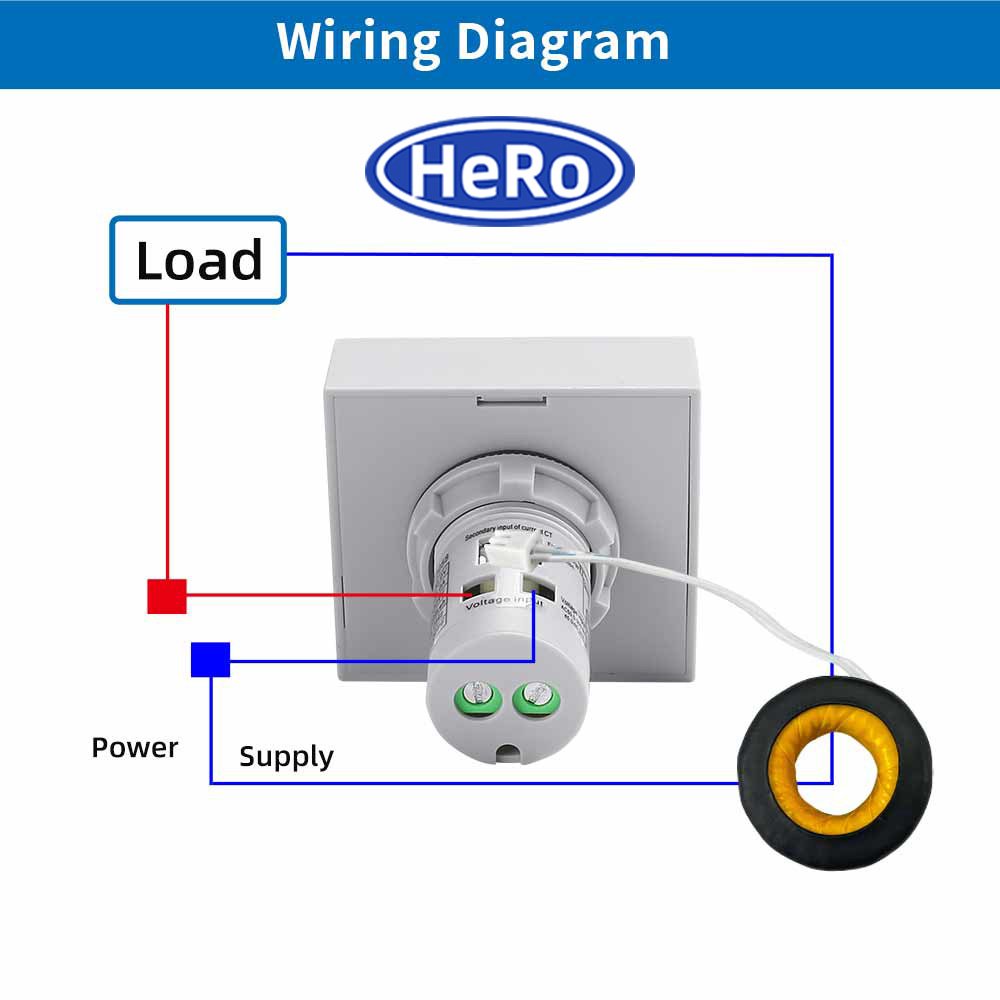

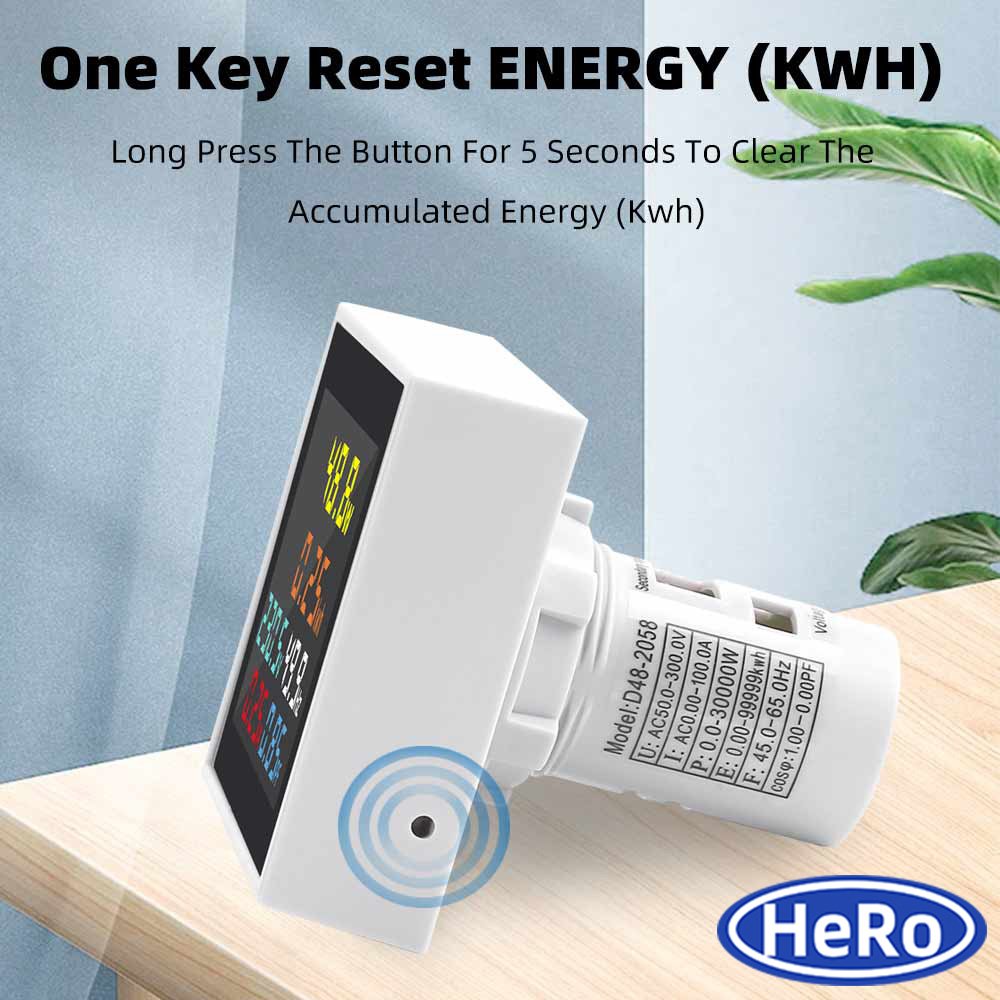

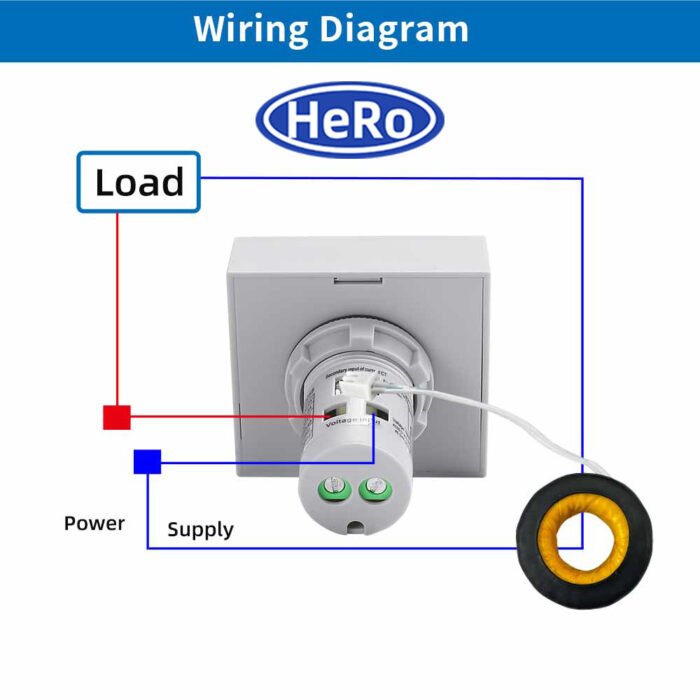

To install, follow the wiring diagram to connect the current transformer’s two-wire plug to the meter’s input terminal. The current conductor should pass through the center of the current transformer. Voltage measurement can be connected to the voltage input terminal. Once powered, the meter will begin displaying the measurements. The energy reset button is located at the right bottom of the meter; press and hold it for 5 seconds to reset the electric energy value.

Package Includes:

• ✔️ 1 × 6-in-1 Digital Display Voltmeter Ammeter
• ✔️ 1 × User Manual (in English)
