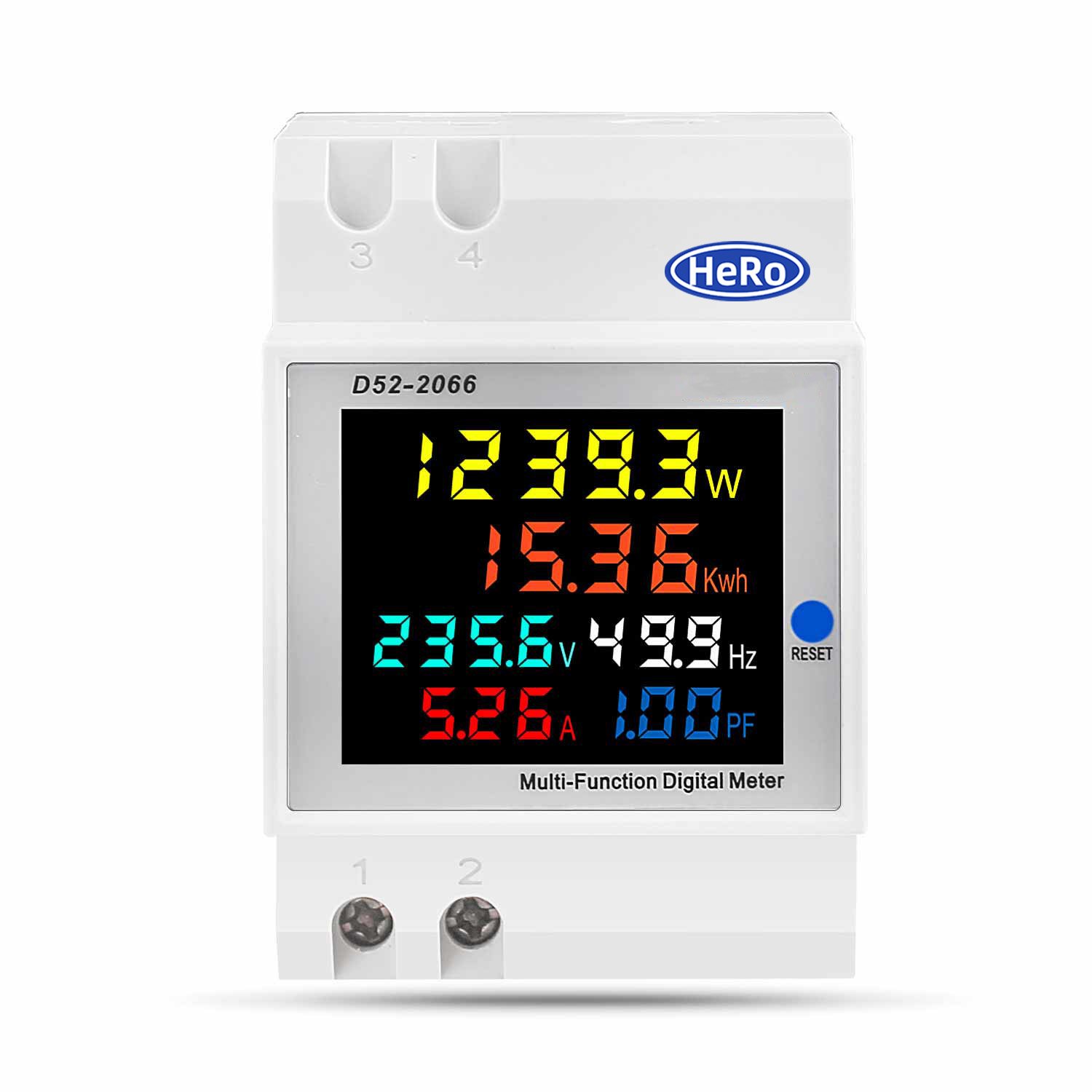

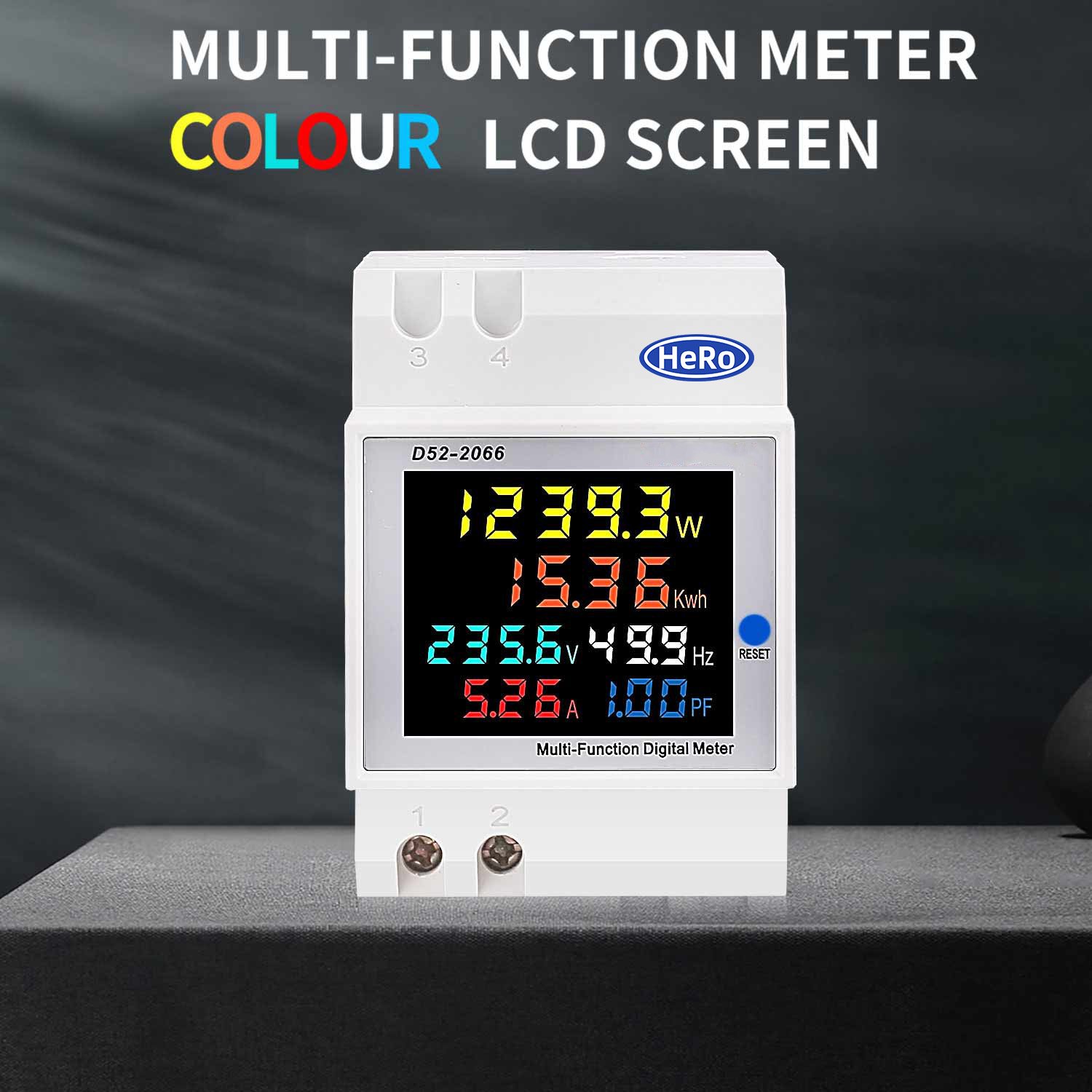

6-in-1 DIN Rail AC Monitor (D52-2066)
Product Overview:
The 6-in-1 DIN Rail AC Monitor is a multifunctional electric meter designed for high-precision monitoring of voltage, current, power factor, frequency, active power (W), and electric energy (kWh). Perfect for grid power, photovoltaic systems, and inverter setups, this unit is reliable, easy to install, and essential for electrical monitoring and management.
Key Features:
- 🔧 6-in-1 Monitoring: Voltage, Current, Power Factor, Frequency, Active Power, and Energy Consumption.
- ⚡ Wide Voltage Range: AC 40.0–300.0V or AC 250.0–450.0V (selectable model).
- 🔌 High Current Capacity: Measures up to 100A with 0.01A resolution.
- 📈 Accurate Readings: 1% ±2 digits measurement accuracy.
- ⚙️ DIN Rail Mountable: Standard size, easy to install in distribution boxes.
- 📊 Fast Measurement Speed: Approx. 2 readings per second.
Technical Specifications:
| Model | D52-2066 |
| Voltage Range | AC 40.0–300.0V or AC 250.0–450.0V (select one) |

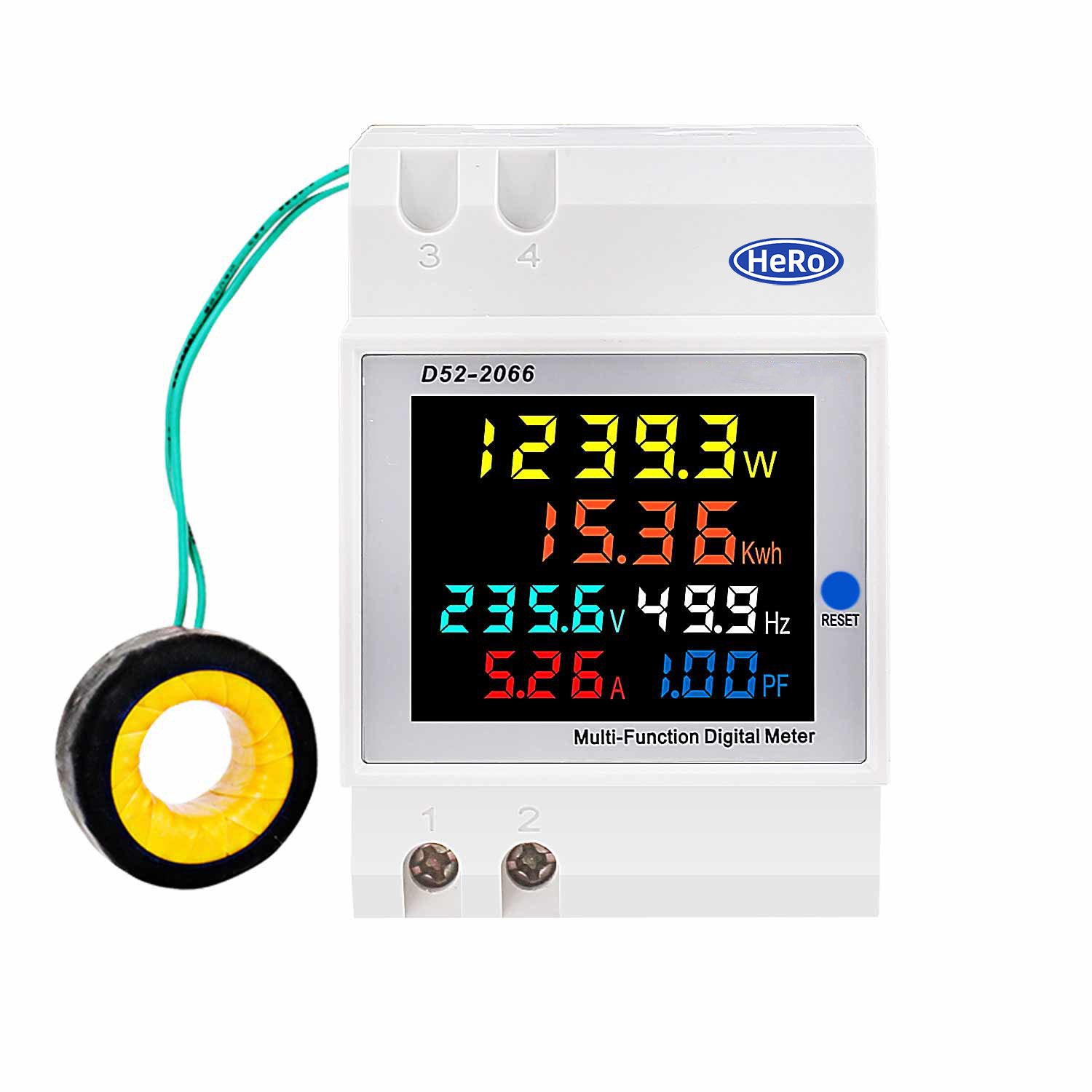

| Current Range | AC 0–100.0A (Resolution: 0.01A) |
| Frequency | 45.0Hz – 65.0Hz |
| Power Factor | 0.00–1.00 PF |
| Active Power | 0–450,000W (0.1W resolution ≤9999.9W) |
| Energy Consumption | 0–99,999kWh (Resolution: 0.01/0.1/1kWh based on range) |
| Measurement Accuracy | ±1% ±2 digits |
| Measurement Speed | Approx. 2 times per second |

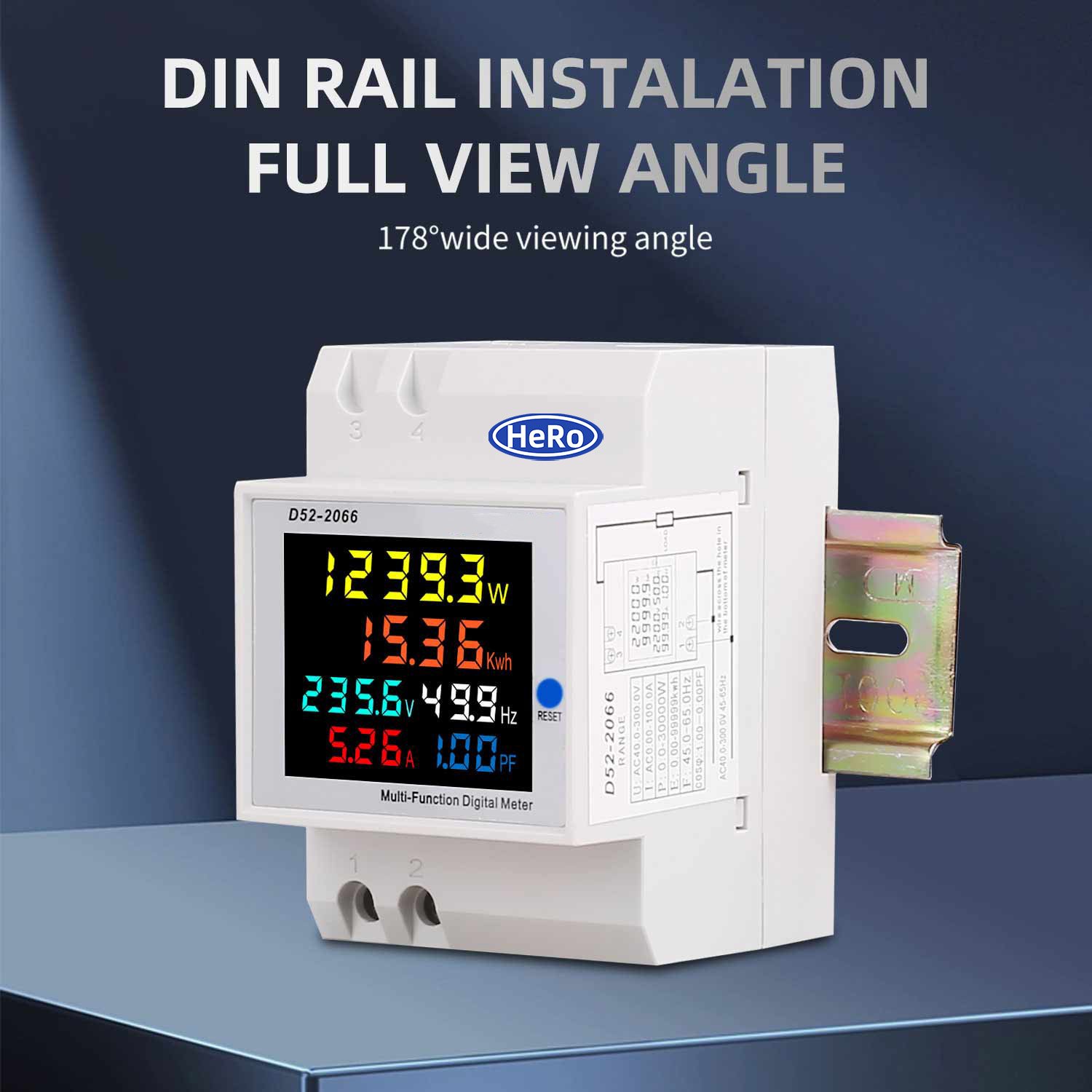

| Installation Type | DIN Rail Mount |
Applications:
- 🏠 Residential Electrical Panels
- ☀️ Solar Energy Monitoring (Photovoltaic)
- ⚙️ Inverter Output Analysis
- 🏢 Industrial & Commercial Load Management
Important Notes:
- ⚠️ Please select the correct voltage range model when ordering.
- 🔧 Designed for monitoring purposes only, not for control switching.
