ATS 2P 4P 63A 125A Dual Power Automatic Transfer Switch AC230V 380V MCB Auto Changeover Switch Circuit Breakers

ATS 2P/4P 63A–125A Dual Power Automatic Transfer Switch – TXATS1 Series

Product Overview:

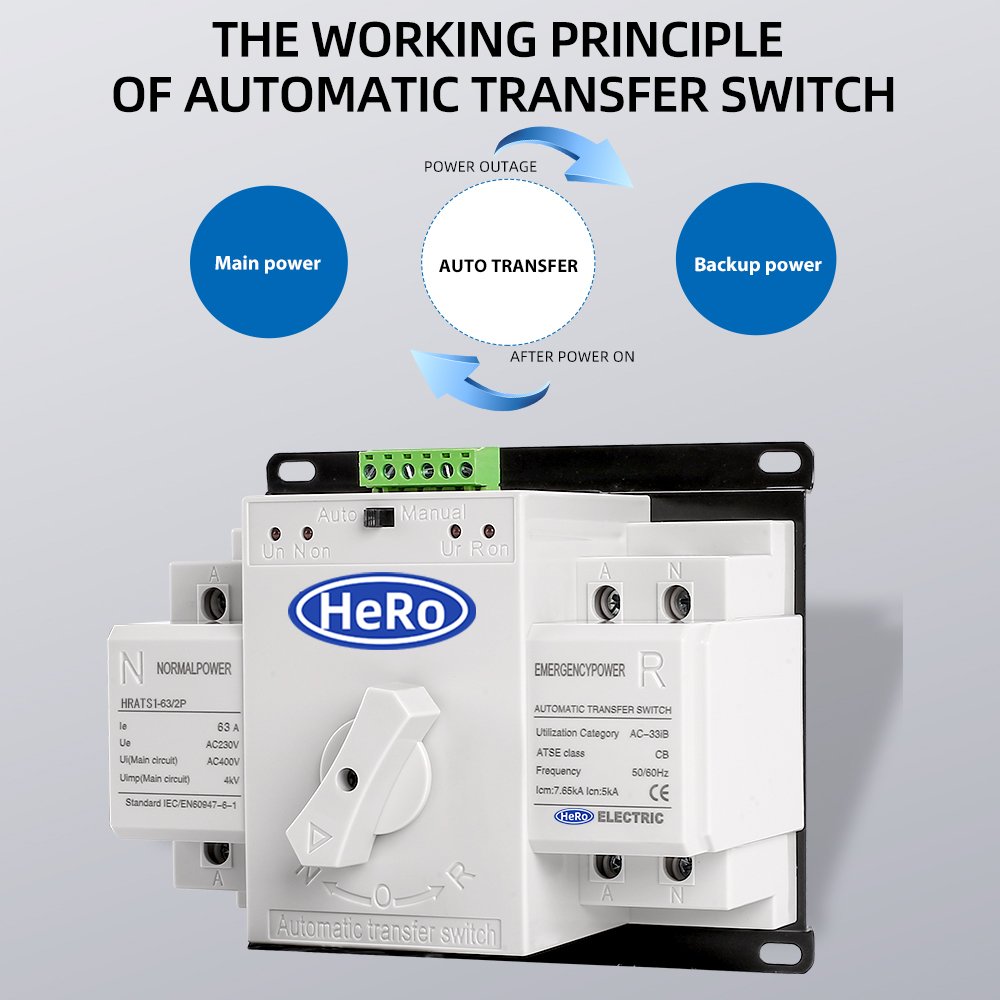

The TXATS1 Series Dual Power Automatic Transfer Switch ensures reliable switching between normal and reserve power sources, minimizing downtime and maintaining the power supply for critical loads. This automatic changeover switch is available in 2P and 4P configurations with current ratings of 63A and 125A, making it suitable for residential, commercial, and industrial applications.

Key Features:

• 🔄 Automatic Switching: Automatically switches between normal and reserve power based on availability.
• ⚡ Voltage Range: 2P: AC 200V–240V | 4P: AC 350V–440V (50/60Hz)
• ⏱️ Fast Switch Time: Less than 4 seconds for seamless transition.
• 🔌 Maximum Current: Available in 63A and 125A models.
• ⚠️ Power Interruption: A brief power interruption occurs during the switching process.
• 🛠️ Dual Operation Modes: Switch between automatic or manual modes with ease.
• 📜 Compliant with Standards: Conforms to IEC60947-6-1 and GB/T14048.11.

Technical Specifications:

• Model: TXATS1 Series
• Pole Options: 2P or 4P
• Rated Current: 63A or 125A
• Rated Voltage (2P): AC 200V–240V
• Rated Voltage (4P): AC 350V–440V
• Frequency: 50/60Hz
• Switching Time: < 4 seconds
• Operation Mode: Automatic or Manual
• Installation: Terminal type, DIN rail mountable

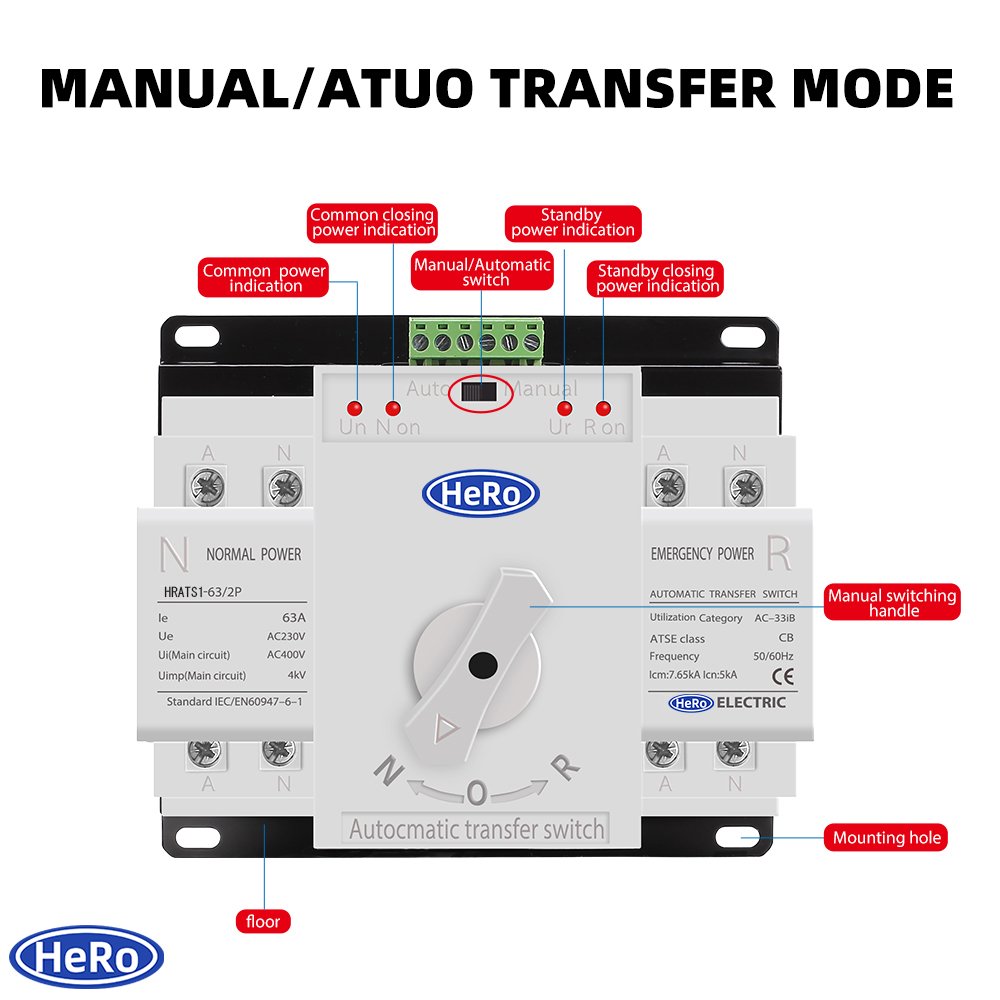

Usage Instructions:

• 🔄 Automatic Mode: Press the AUTO button to enable automatic switching between normal and reserve power.
• 🖐️ Manual Mode: Press the MANUAL button to manually switch between power sources.
• ⚠️ Important Note: This switch cannot control generator power on/off. It will prioritize normal power when available, switching to reserve power if normal power is lost.

Applications:

• ✔️ Residential backup power systems
• ✔️ Commercial buildings and offices
• ✔️ Industrial equipment and critical infrastructure
• ✔️ Off-grid and renewable energy systems

Available Models:

• ✅ 2P 63A
• ✅ 2P 125A
• ✅ 4P 63A
• ✅ 4P 125A

Package Includes:

• 📦 1 × Dual Power Automatic Transfer Switch (TXATS1)

Note: Ensure that the chosen model matches your specific power and current requirements. Installation by a qualified professional is recommended.
