ATS 2P 4P 63A Dual Power Automatic Transfer Switch AC230V 380V MCB Auto Changeover Switch Circuit Breakers

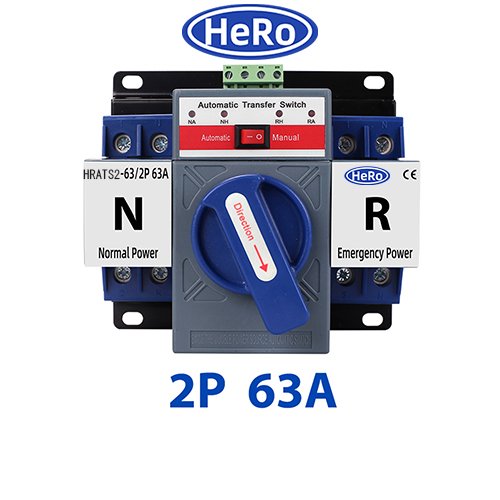

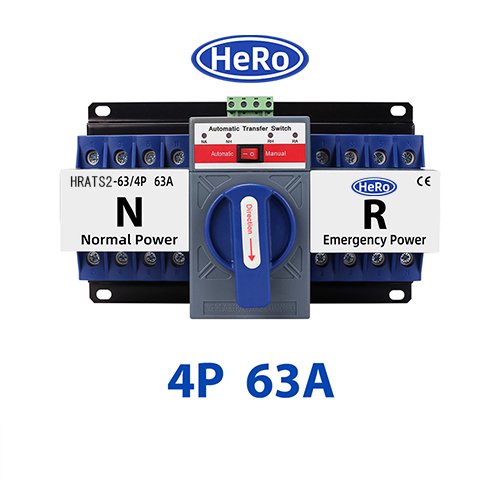

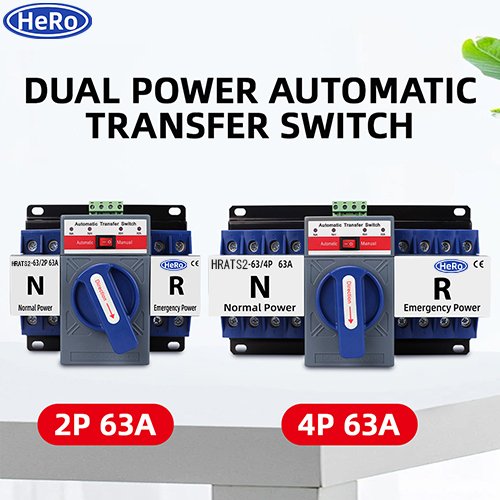

ATS 2P/4P 63A Dual Power Automatic Transfer Switch – TXATS2 Series

Product Overview:

The TXATS2 Series Dual Power Automatic Transfer Switch offers seamless switching between main and backup AC power sources. Available in 2-pole and 4-pole configurations, it supports rated voltages of 230V and 380V respectively, with a maximum current capacity of 63A. Ideal for residential, commercial, and industrial AC power systems.

Key Features:

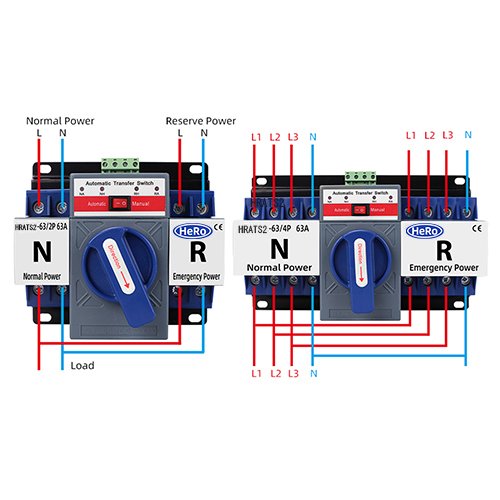

• Dual Power Input: Automatically switches between normal and reserve AC power
• Rated Voltage: 2P: AC 200V–240V, 4P: AC 350V–440V (50/60Hz)
• Switching Delay: Less than 4 seconds
• Manual/Automatic Modes: Toggle between auto-switching and manual control
• MCB Integration: Built-in Miniature Circuit Breaker for safety and control

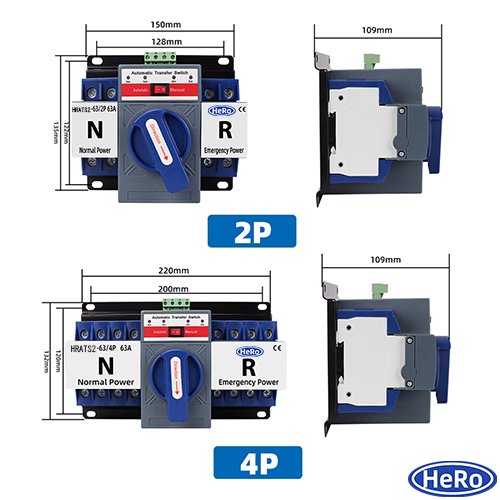

• Compact Design: DIN rail mountable for easy installation

Technical Specifications:

• Product Model: TXATS2 Series
• Rated Current: 63A
• Voltage (2P): AC 200V–240V, 50/60Hz
• Voltage (4P): AC 350V–440V, 50/60Hz
• Max Switching Time: < 4 seconds
• Switching Type: Automatic Transfer (manual override supported)
• Conformity: IEC60947-6-1, GB/T14048.11 standards
• Mounting: DIN Rail

Applications:

• Residential backup power systems
• Small commercial buildings and shops
• Generator/inverter backup solutions
• AC power management in solar setups

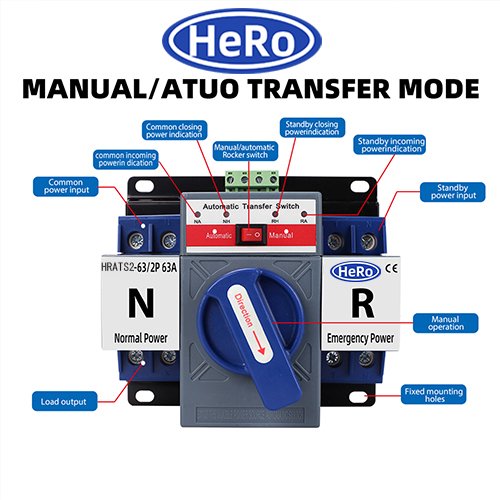

Operation Instructions:

• Automatic Mode: Press AUTO button for automatic switching between power sources.

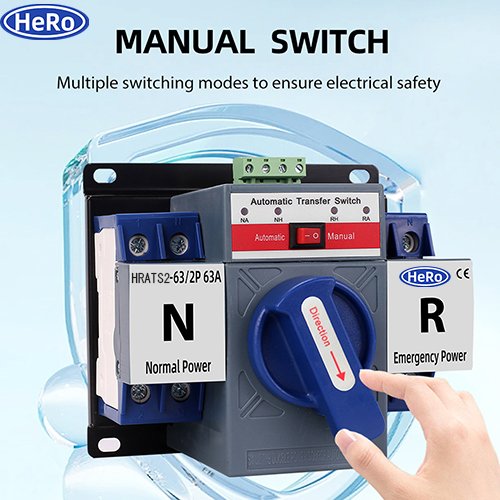

• Manual Mode: Press MANUAL button to manually control switch direction.
• Note: Switching causes brief power interruption. Generator auto-start is not supported.

Package Includes:

• 1 × ATS 2P or 4P Dual Power Automatic Transfer Switch

Note: Professional installation is recommended. Ensure compatibility with your power system before use.
