Digital LCDAmp Volt Watt Kwh Power Factor Meter

Digital LCDAmp Volt Watt Kwh Power Factor Meter

Product Overview:

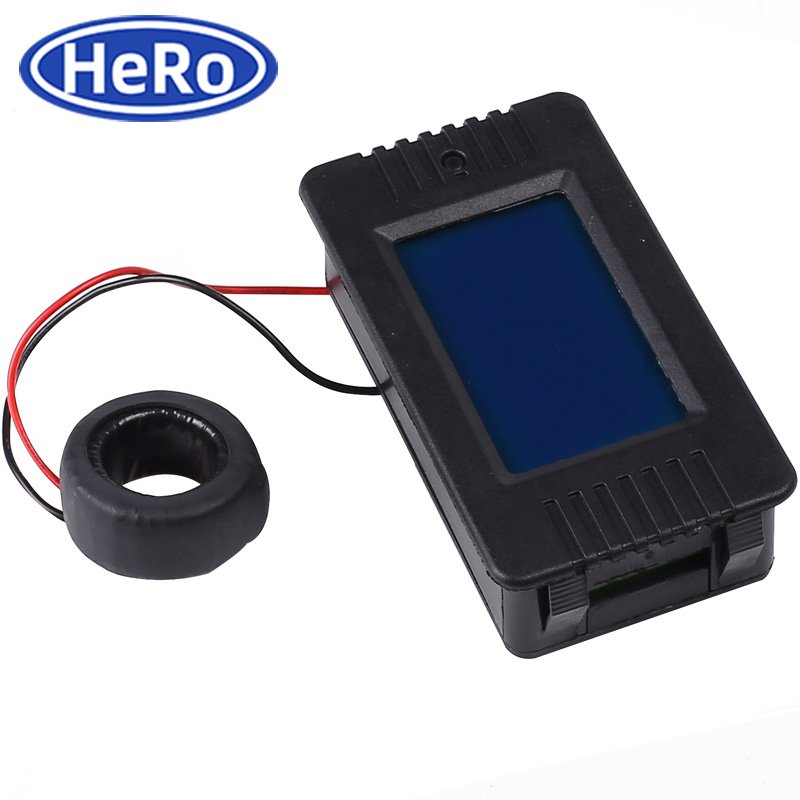

The Digital LCDAmp Volt Watt Kwh Power Factor Meter is an advanced electrical measurement tool designed to measure various parameters such as voltage, current, active power, energy, frequency, and power factor. It features a clear LCD display and includes an overload alarm function to ensure safety. This versatile meter provides precise readings across a wide range of electrical measurements.

Key Features:

• ⚡ Measurement Functions: Voltage, current, active power, energy, frequency, and power factor
• 🔔 Overload Alarm: Alerts with flashing backlight and power when the alarm threshold is exceeded

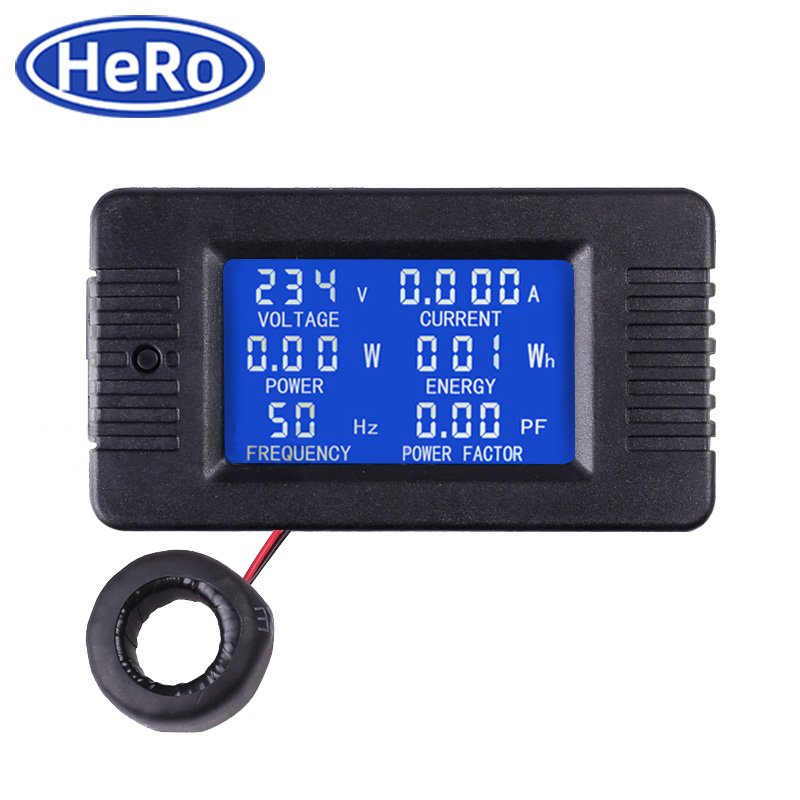

• 💡 Clear LCD Display: Simultaneous display of all important electrical parameters
• ⚙️ Accurate Measurements: Starting measurement power as low as 0.2W and current as low as 0.001A
• 🔋 Energy Display: Measures up to 999kWh with accurate formatting for small and large values

Display Format:

• Power: 0 ~ 22000W (Display formats for 1W to 9.99W, 10W to 99.9W, 100W to 999W, etc.)
• Energy: 0 ~ 999kWh (Display formats for 0~999Wh, 1~9.99kWh, and 10~999kWh)
• Voltage: 80 ~ 260V
• Current: 0 ~ 100A (Display format for <10A: 0.000~9.000A and ≥10A: 10.00~99.99A)
• Frequency: 45 ~ 65Hz
• Power Factor: 0 ~ 1PF (Display format: 0.00~1.00PF)

Specifications:

• Working Voltage: 80 ~ 260VAC
• Test Voltage: 80 ~ 260VAC
• Rated Power: 10A/2300W or 100A/22000W
• Operating Frequency: 45 ~ 65Hz
• Measurement Accuracy: High precision with overload protection
• Alarm Function: Over power alarm threshold with flashing backlight and power

Applications:

• ✔️ Measuring and monitoring energy consumption in electrical systems
• ✔️ Ensuring safe operation with over-power alarms
• ✔️ Suitable for use in various industrial and household electrical appliances

Package Includes:

• ✅ 1 × Digital LCDAmp Volt Watt Kwh Power Factor Meter
