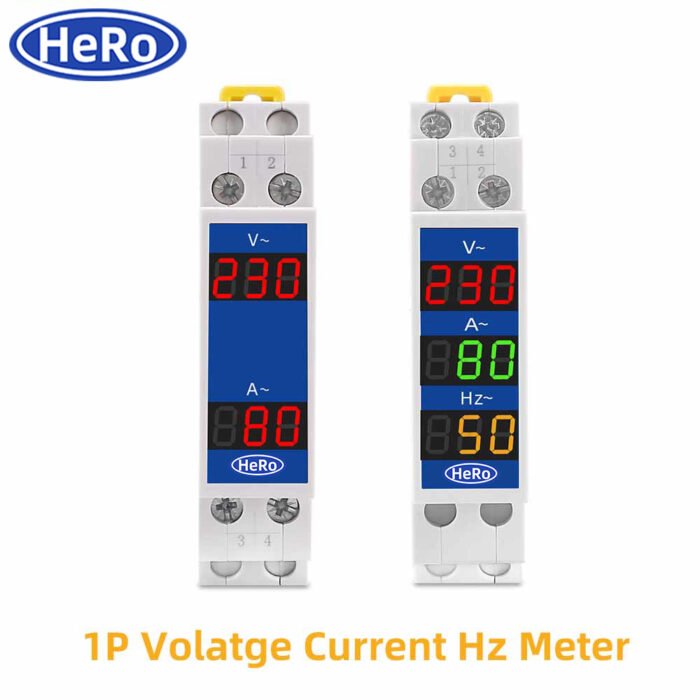

Din Rail 18mm Voltage Current Hz Meter – AC 80-500V, 100A Digital Voltmeter Ammeter
Product Overview:
This compact digital voltmeter ammeter is designed for DIN rail mounting with an 18mm width. It supports wide voltage input from 80V to 500V AC and current monitoring up to 100A. Ideal for monitoring power systems in homes, industrial setups, and solar installations. It also includes frequency measurement (Hz) and LED digital display for clear and immediate readings.
Key Features:
- ⚡ Voltage Range: AC 80V – 500V (suitable for 220V / 380V systems)
- 🔌 Current Range: 1 – 100A
- 📟 Frequency Measurement: 0 – 99Hz
- 🔧 Compact Size: Only 18mm wide – perfect for modular panel integration

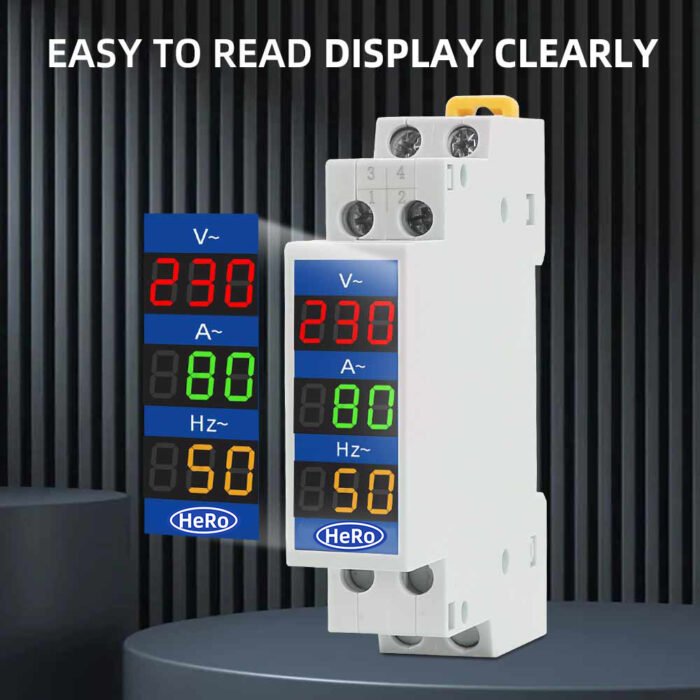

- 💡 LED Display: Clear digital readout for voltage, current, and frequency

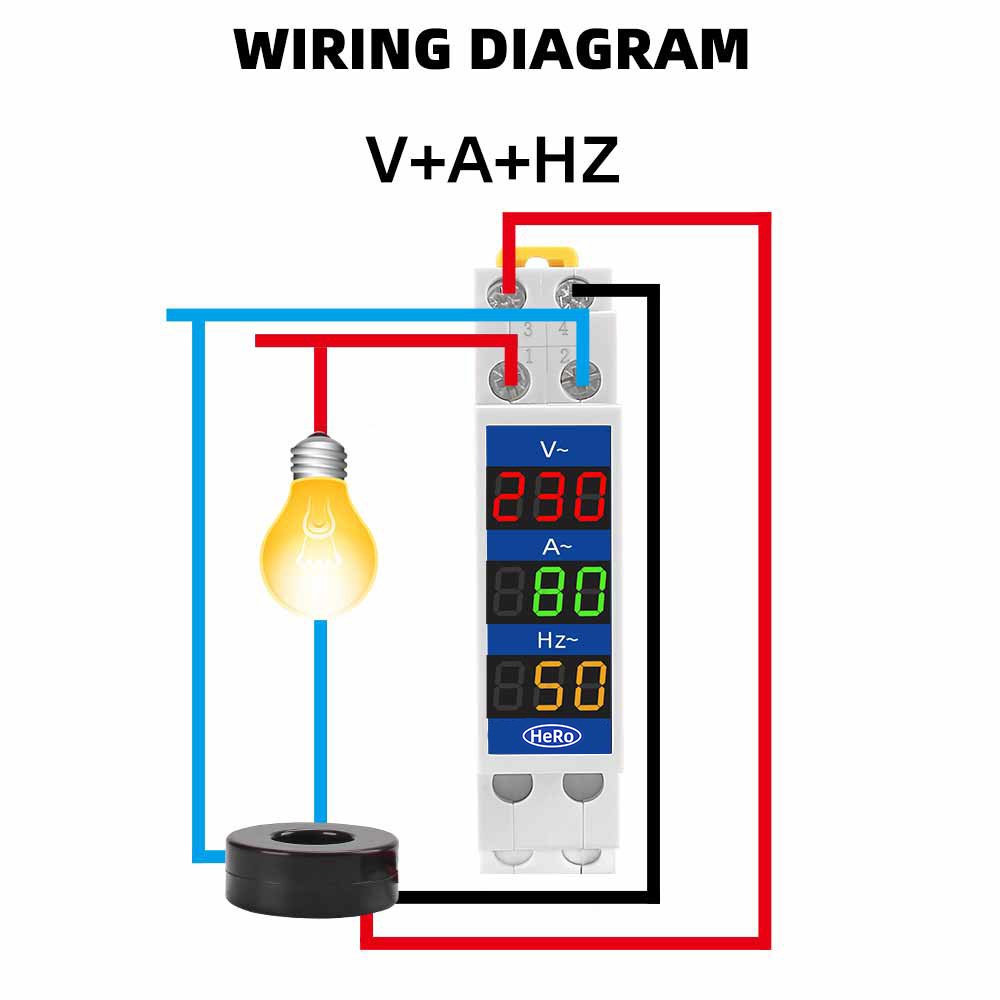

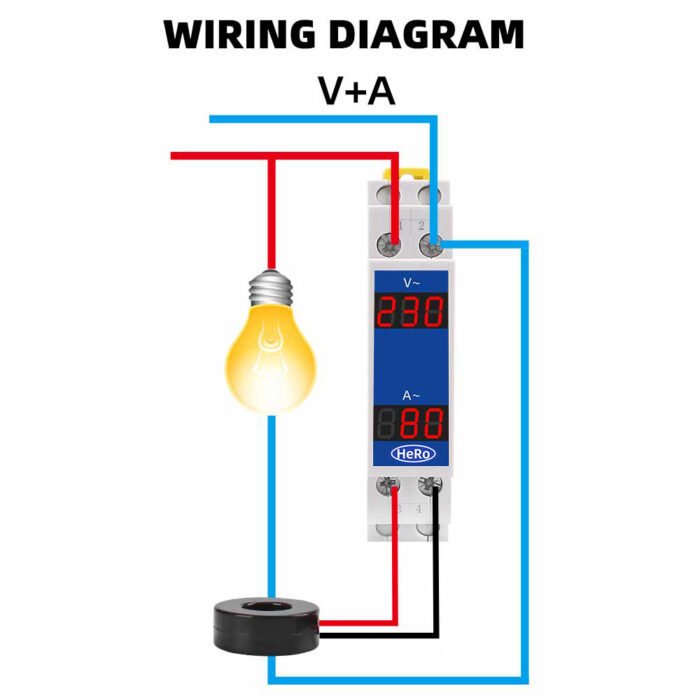

- 🛠️ Easy Installation: Standard 35mm DIN rail mount with included transformer
Specifications:
| Dimensions | 18 × 81 × 66 mm |
| Voltage Range | AC 80 – 500V |
| Current Range | 1 – 100A |
| Frequency Range | 0 – 99Hz |
| Accuracy | ±1% (±2 digits) |
| Installation | DIN Rail 35mm Mount |
Package Includes:
- ✔️ 1 × Digital Voltmeter Ammeter (with Current Transformer)
- ✔️ 1 × Digital Voltmeter Ammeter Hz (with Current Transformer)
Applications:
- 🏠 Household AC power monitoring
- ⚙️ Industrial equipment voltage & current diagnostics
- ☀️ Solar PV system monitoring
