3 Phase 4 Wire Din Rail Energy Meter – 100A AC 380V 50/60Hz | LCD Backlight
Product Overview:
This advanced 3-phase 4-wire electronic energy meter is designed to accurately measure active power consumption in industrial and commercial applications. Conforming to IEC62053 standards, it offers a compact DIN rail mountable design with a 6+1 digit backlit LCD display. Capable of measuring up to 100A per phase, this meter provides high precision, excellent stability, and strong anti-interference capabilities.
Key Features:
- 📟 6+1 Digit Backlit LCD Display: Clearly shows total kWh consumption.
- ⚡ 3 Phase, 4 Wire Input: Designed for AC 380V/400V (3×220/380V or 3×230/400V).
- 🔒 Anti-Tamper Design: Enhanced resistance to electromagnetic interference and energy theft.
- 🛠️ DIN Rail Mounting: Compact size fits standard 35mm DIN rails.
- 🔥 High Overload Protection: Up to 100A reference current capacity per phase.
Technical Specifications:
| Reference Voltage | 3 × 220/380V or 3 × 230/400V |
| Reference Current | 3 × 10(100A) |
| Accuracy Class | Class 1.0 |
| Frequency | 50Hz / 60Hz |
| Constant Pulse | 400 imp/kWh |
| Power Consumption | ≤2W / 10VA |
| Starting Current | 0.004Ib |
| Operating Temp | -20°C ~ +55°C |
| Storage Temp | -25°C ~ +70°C |
| Humidity | ≤95% (non-condensing) |

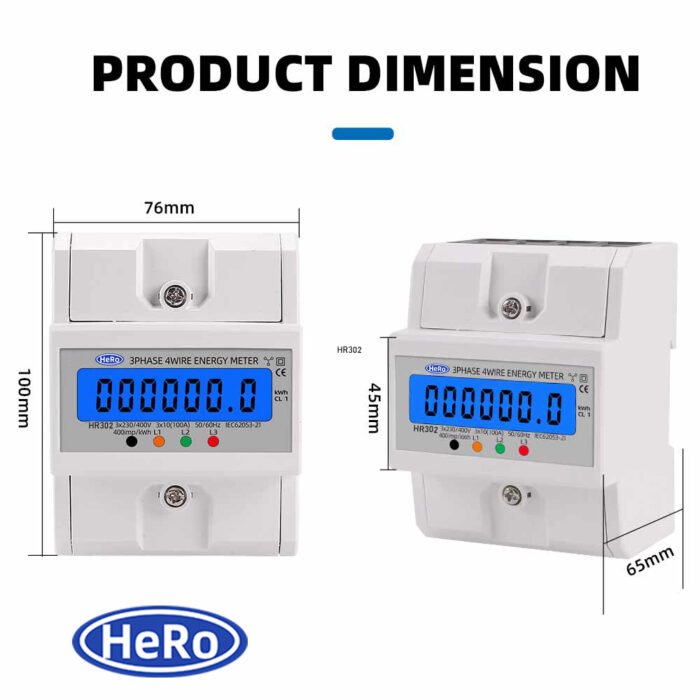

| Dimensions | Approx. 10.0 x 7.6 x 6.5 cm |
Applications:
- 🏭 Industrial Power Monitoring
- 🏢 Commercial Energy Management
- 🔌 Electrical Panels with 3-Phase Supply
