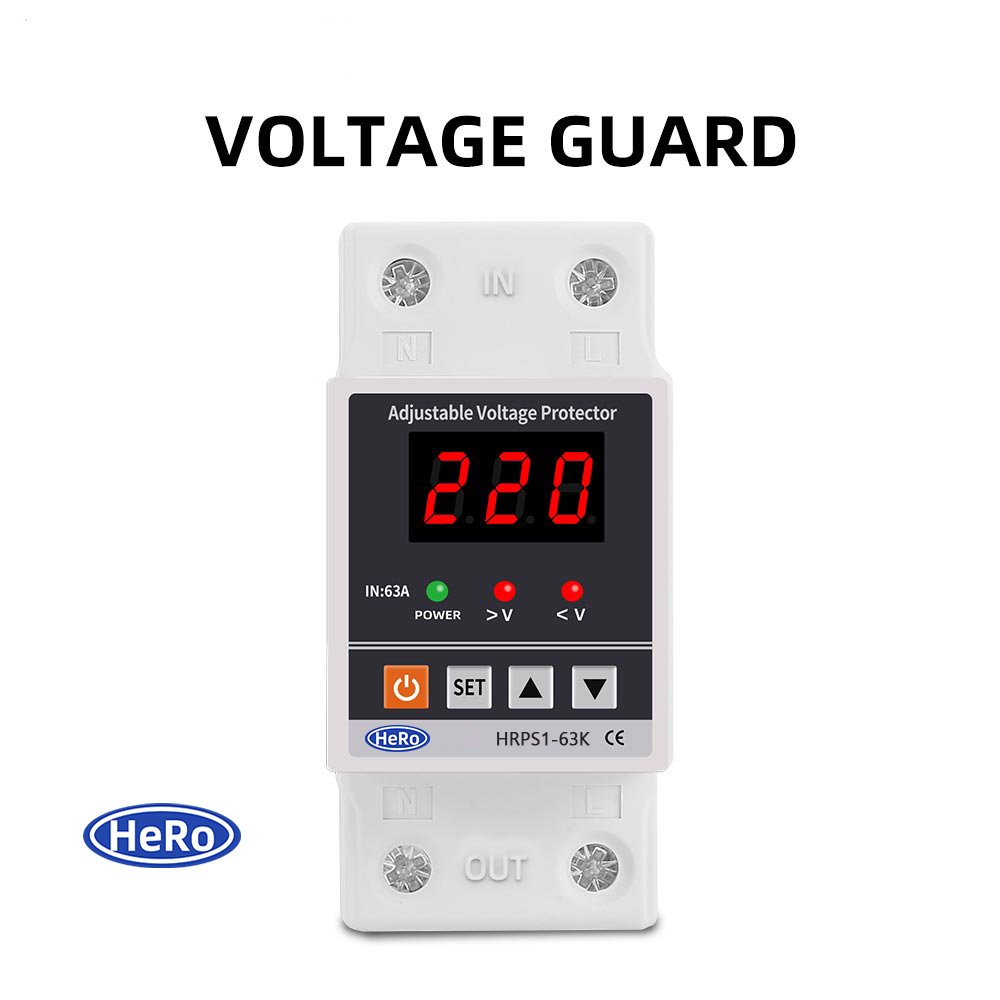

63A 220V Din Rail Adjustable Recovery Reconnect Over and Under Voltage Protective Device Protector Relay Over Voltage Protection

• 🛡️ Adjustable Over/Under Voltage Protective Relay
• 📦 Model: TVPS1-40K / TVPS1-63K
• 🔌 Power Supply: 230VAC, 50/60Hz
• ⚡ Max Loading Power:
  • 40A (TVPS1-40K)
  • 63A (TVPS1-63K)

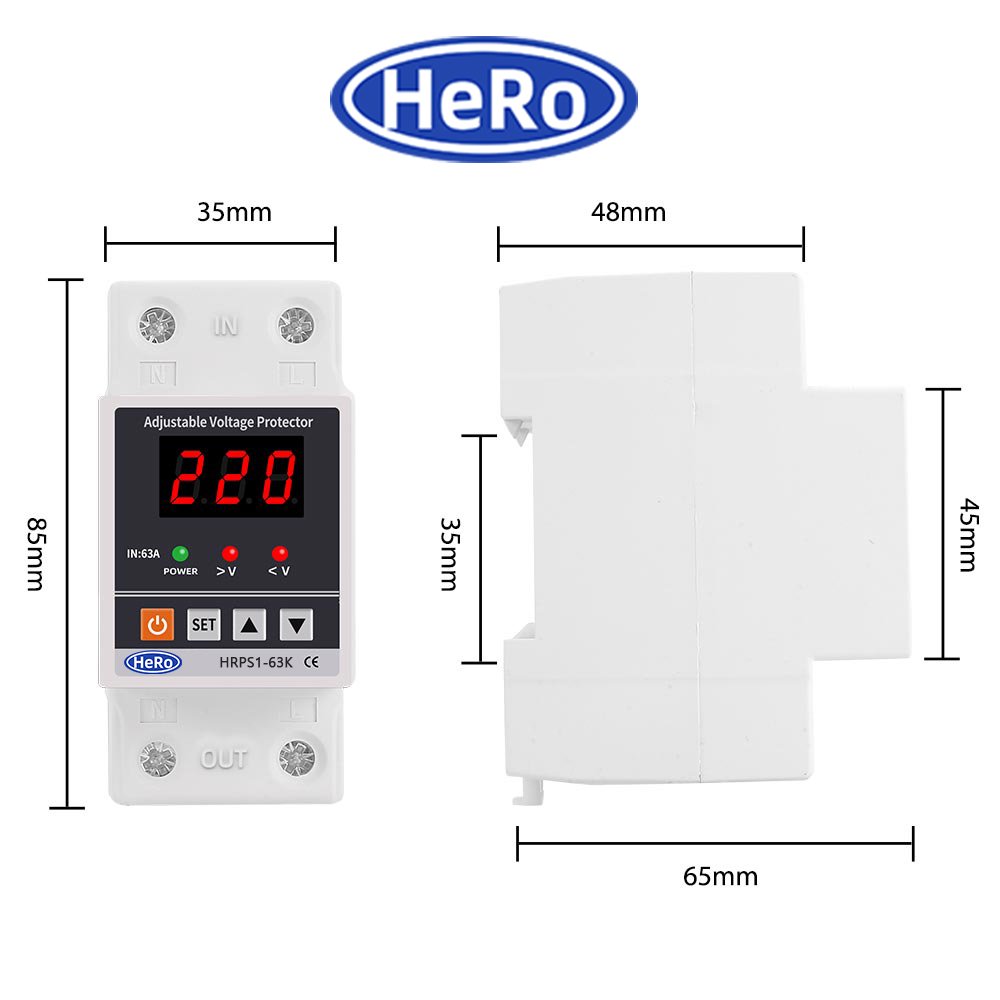

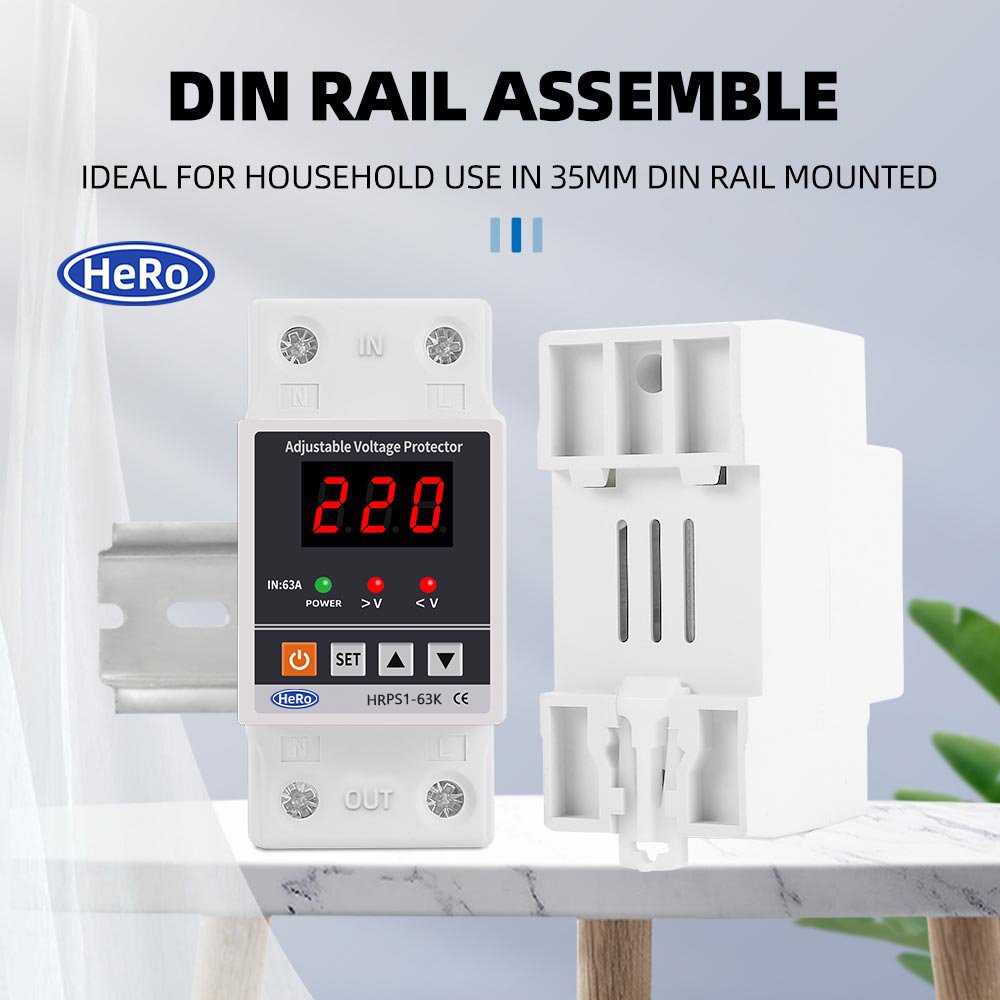

• 📏 Installation: 35mm DIN Rail
• 💡 Power Consumption: <2W
• 🔁 Mechanical Life: 100,000 cycles

🔧 Key Protection Features:

• ⚡ Over-voltage Protection:
  • Protection Range: 230V–300V–OFF
  • Recovery Voltage: 225V–295V
  • Action Time: 0.1s–30s (Default: 0.5s)
  • Recovery Delay Time: 1s–500s (Default: 30s)
• ⚠️ Under-voltage Protection:
  • Protection Range: 140V–210V–OFF (Default: 170V)
  • Recovery Voltage: 145V–215V (Default: 190V)
  • Action Time: 0.1s–30s (Default: 0.5s)
  • Recovery Delay Time: 1s–500s (Default: 30s)
• ♻️ Automatic Recovery: Restores power automatically after stabilization.

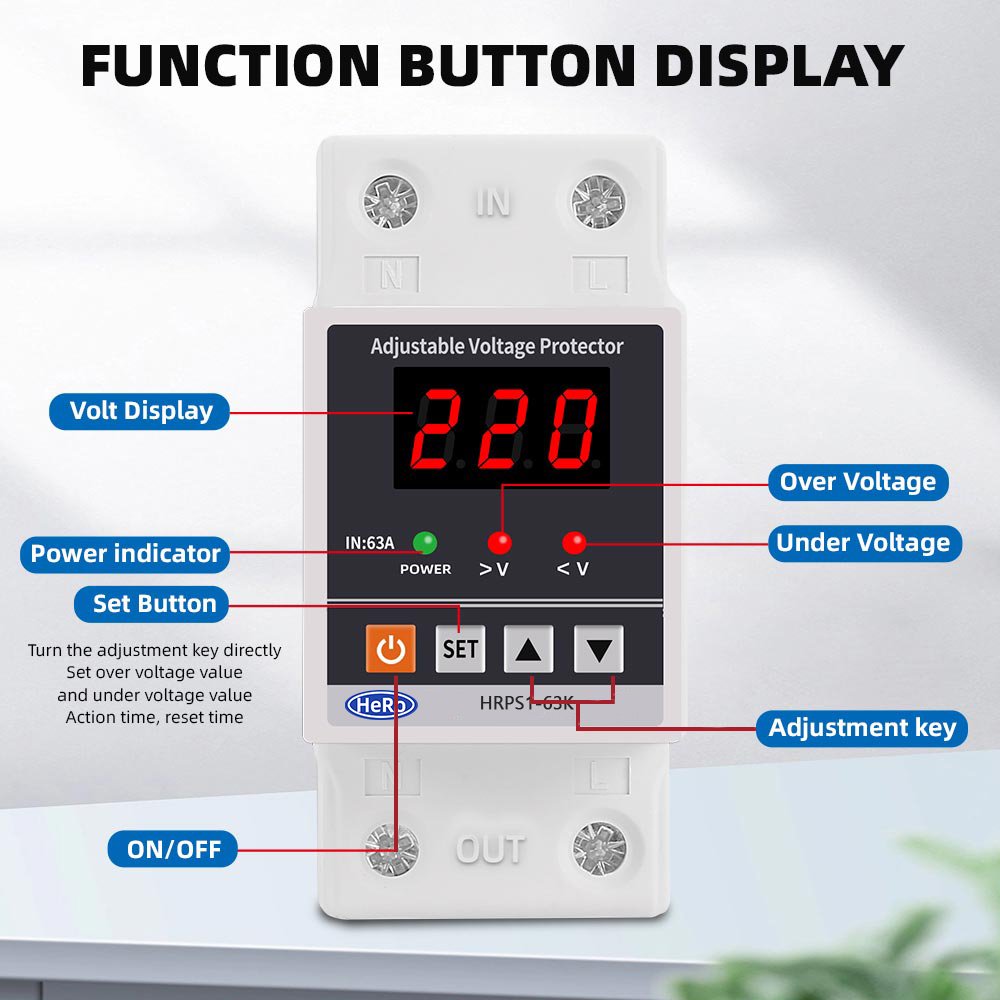

• 🔋 Voltage Display: Real-time voltage measurement and monitoring.
• 🛠️ Voltage Correction: Ensures accurate voltage detection and protection thresholds.

⚙️ Additional Features:

• ⏱️ Power-on Delay Time: 1s–500s (Default: 10s)
• 🔄 Initial Setup Note: When first connecting the product, wait approximately 10 seconds (Power-on delay time: 1s–500s, Default: 10s). The red light will turn off, indicating the product is ready to operate.

💡 Ideal For:

• Protecting sensitive appliances such as refrigerators, air conditioners, washing machines, and other high-power devices.
• Ensuring safe and stable operation of household and industrial electronics during voltage fluctuations.
