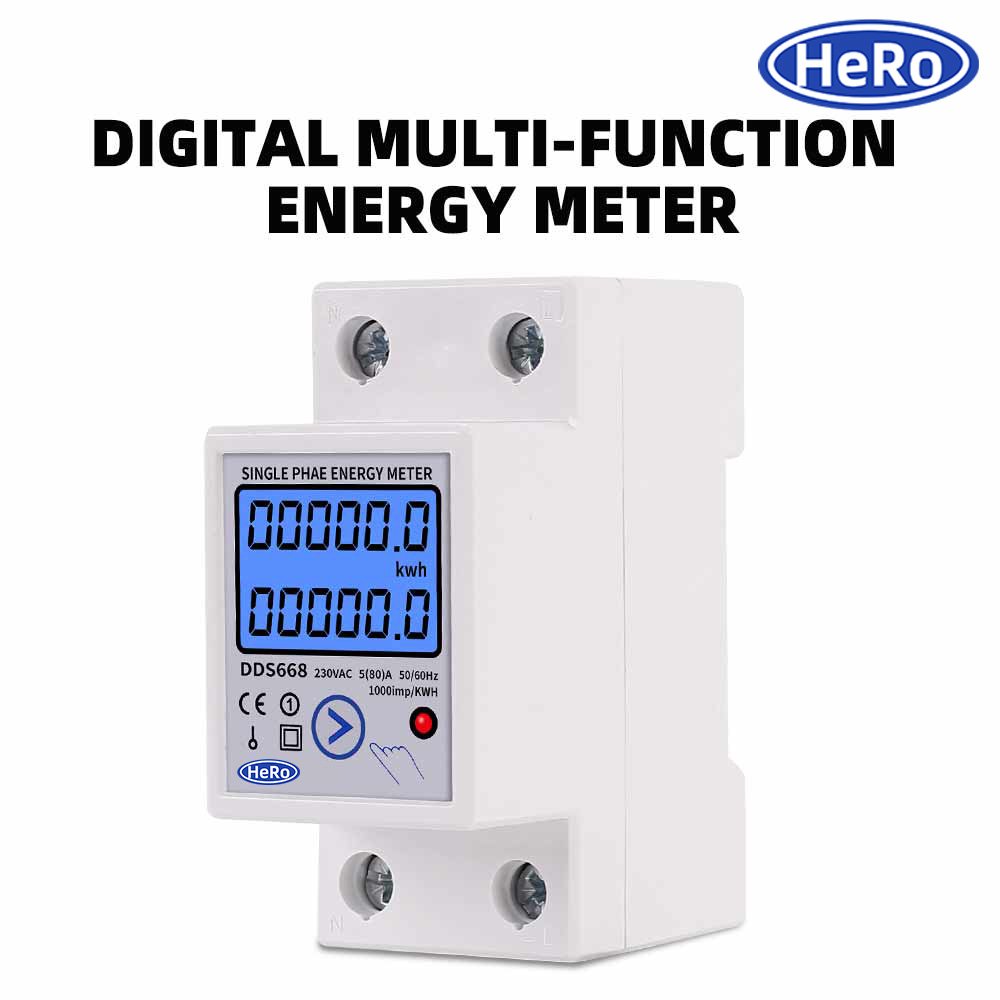

Din Rail Digital Single Phase Energy Meter – 110V/220V AC, 80A, Resettable kWh, Power & Voltage Monitor
Product Overview:

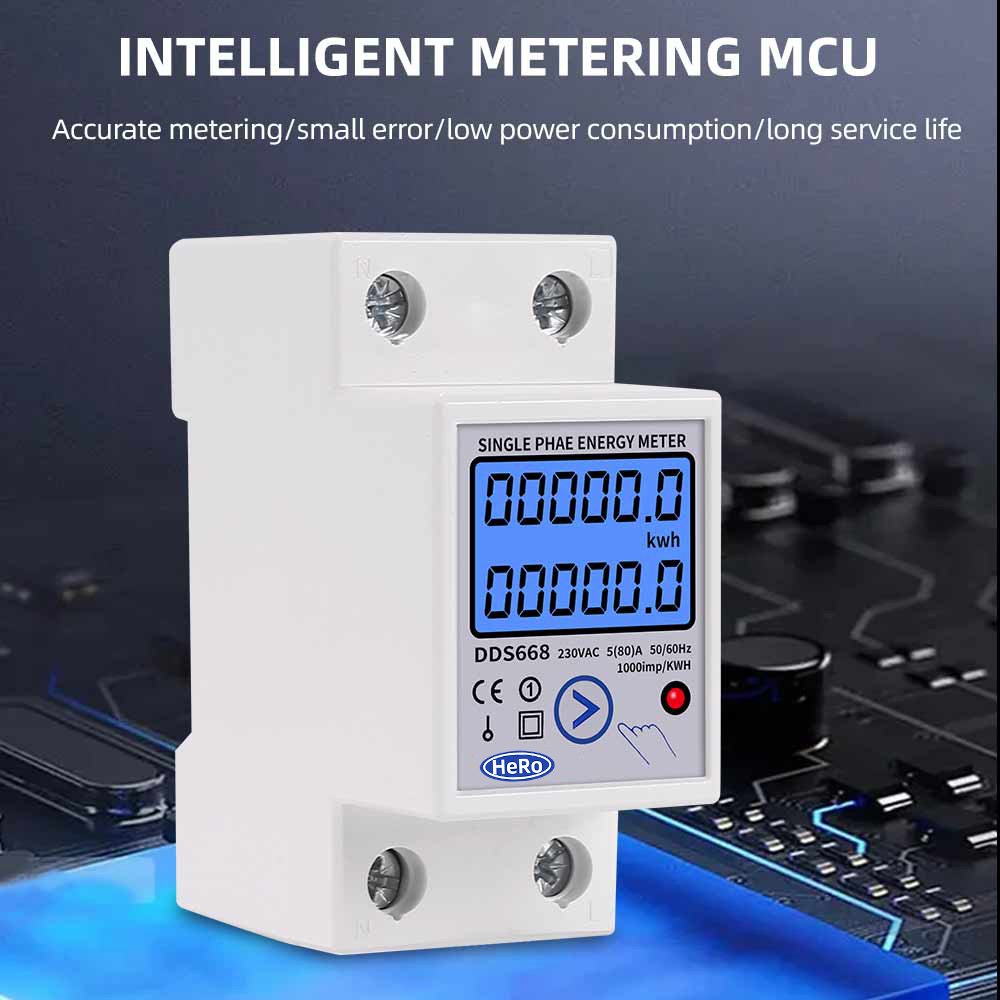

This compact DIN rail-mounted single-phase energy meter offers real-time monitoring of energy consumption with advanced functions including voltage, current, power, frequency, power factor, and energy (kWh). It features a resettable temporary kWh counter, making it ideal for managing partial energy use while preserving total usage records.
Key Features:
- 🔌 Voltage: AC 110V / 220V compatible
- ⚡ Maximum Current: 80A
- 📟 LCD Display: With backlight for clear readings

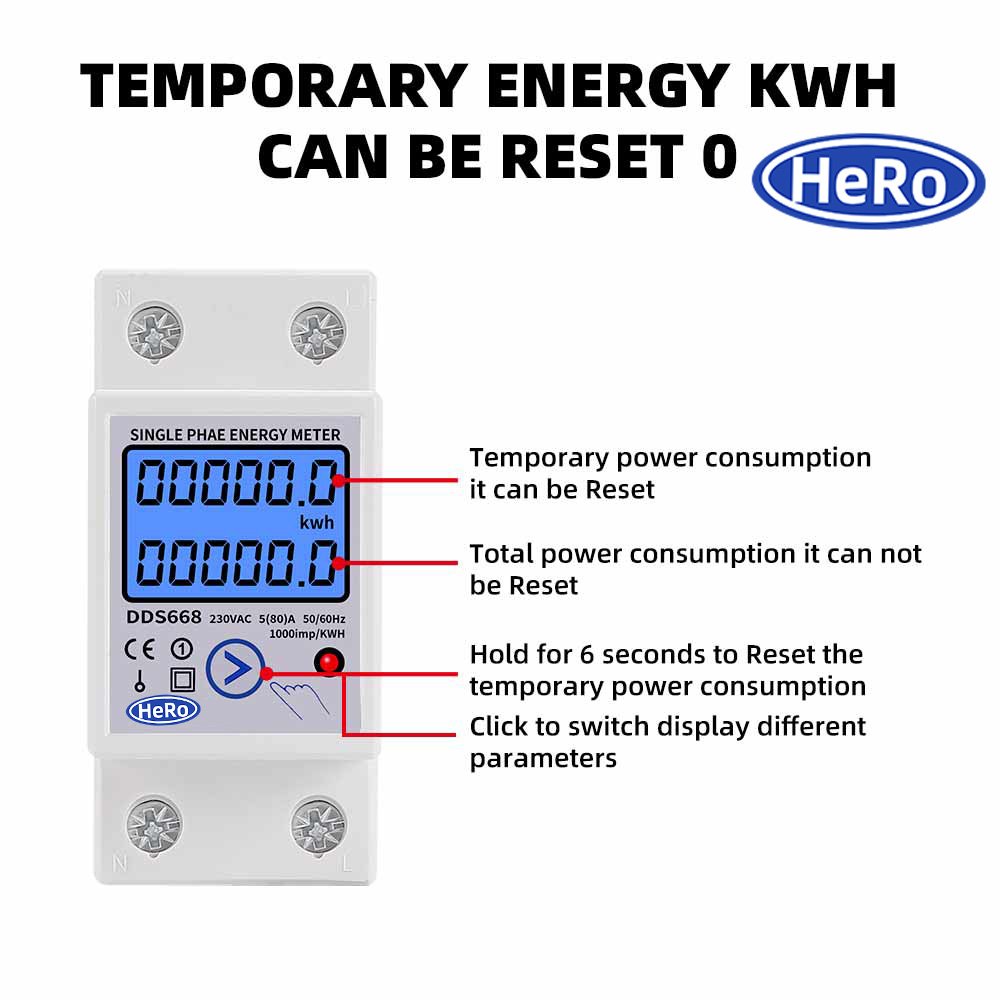

- 🔄 Resettable Temporary kWh: Reset with 6-second button press (Total kWh is non-resettable)
- 📈 Multifunction Monitoring: Voltage, Current, Power, Frequency, Power Factor, Energy (kWh)

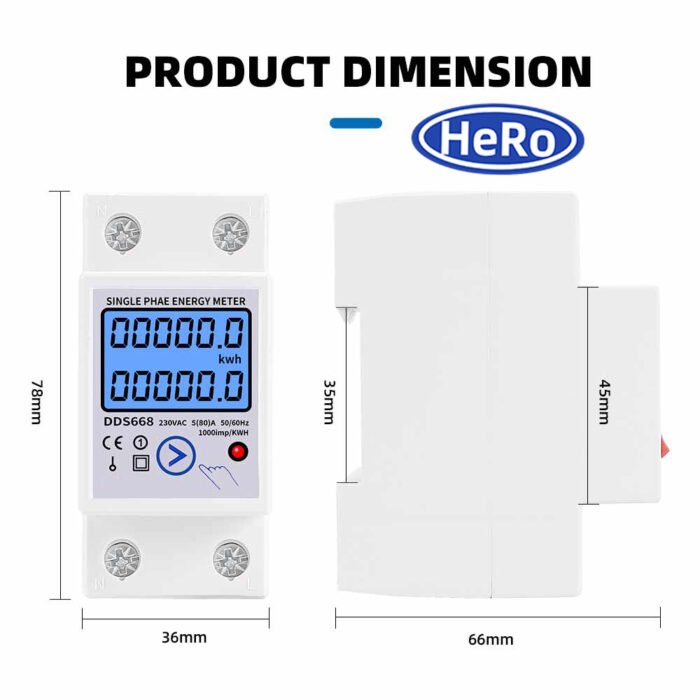

- 🔧 Installation: 35mm standard DIN rail mount
- 💡 Pulse LED: Indicates working status and pulse frequency (1000imp/kWh)
Specifications:
| Voltage | AC 110V / 220V |
| Maximum Current | 80A |
| Pulse Frequency | 1000imp/kWh |
| Resettable Temporary kWh | Yes (via long press) |
| Total kWh Reset | No (non-resettable) |
| Display Type | LCD with Backlight |
| Mounting | DIN Rail 35mm |
Package Includes:
- ✔️ 1 × Energy Meter
- 📘 1 × English Instruction Manual
Ideal Applications:
- 🏠 Home power monitoring
- 🔋 Solar or backup power usage tracking
- ⚙️ Workshop or industrial machine energy management
