Din Rail Electricity Digital Power Energy Meter Single Phase 1P 2 Wire kWh AC 230V Voltmeter Ammeter LCD Analog Counter Display

Din Rail Electricity Digital Power Energy Meter – Single Phase 1P 2 Wire, 230V

Product Overview:

This single-phase 1P 2-wire digital energy meter series is designed for accurate and efficient power monitoring in residential or industrial environments. Installed on a DIN rail, these compact meters provide real-time energy measurement with clear LCD or analog counter displays. Available in three models—TXM13A, TXM13B, and TXM16—each offering distinct features for different monitoring needs.

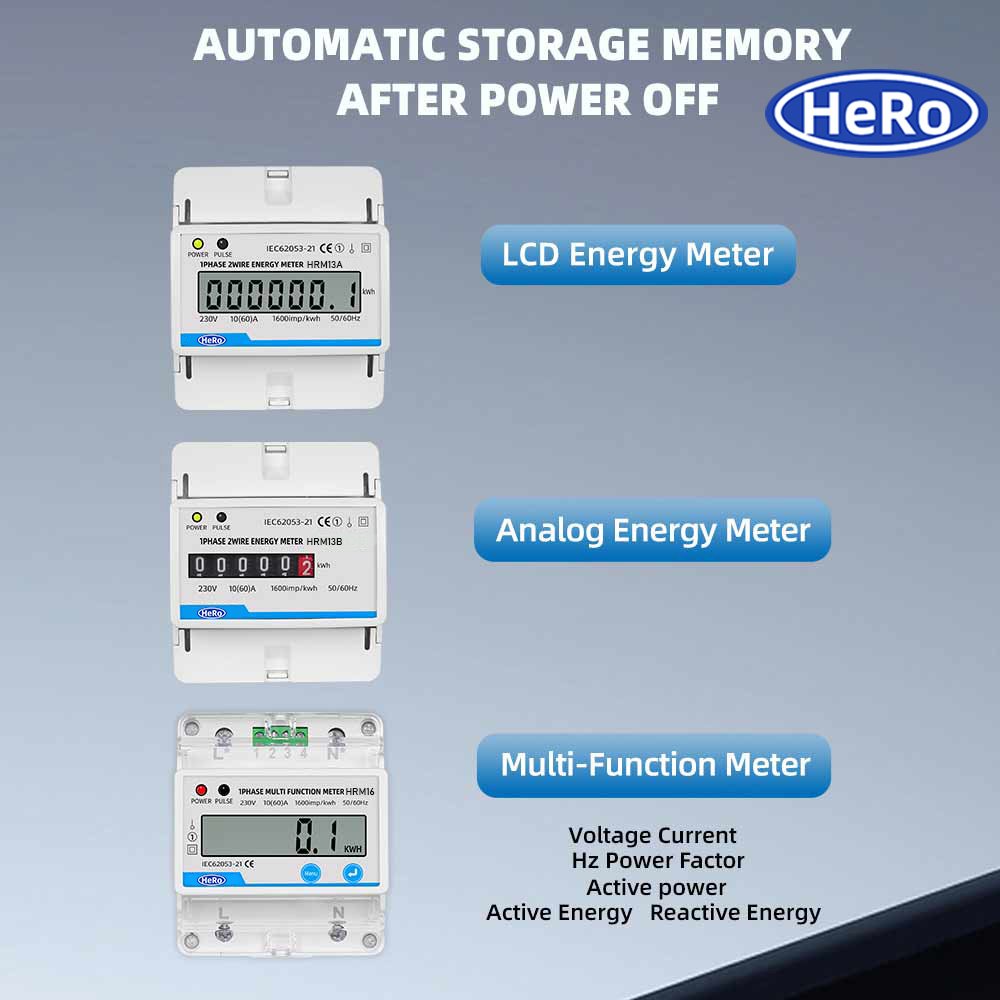

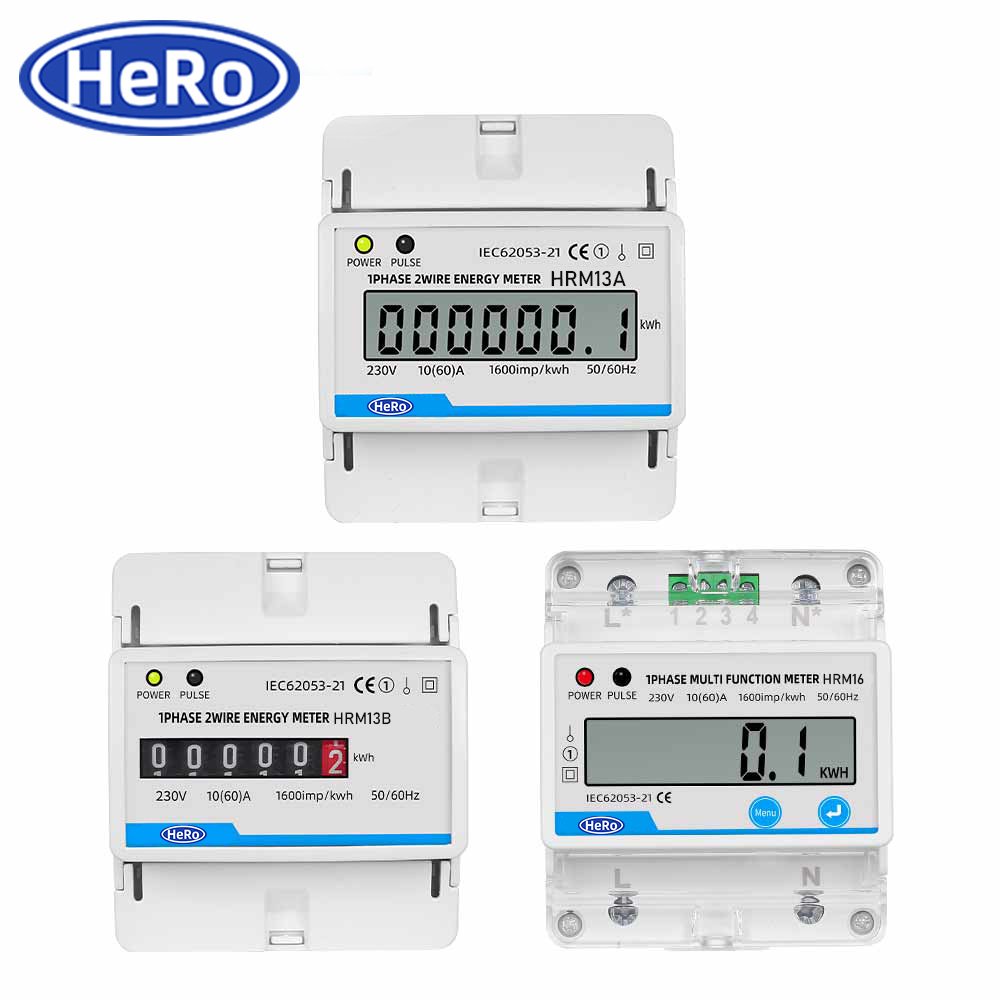

Available Models & Key Features:

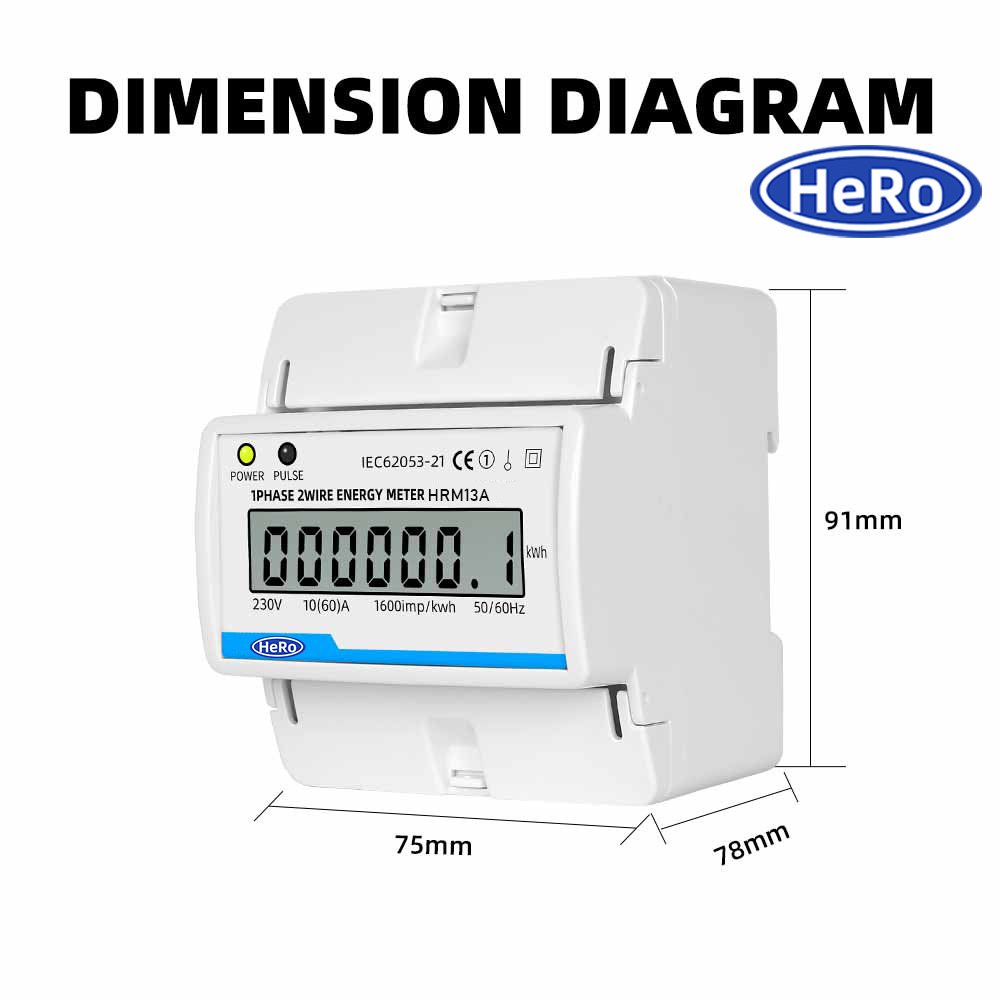

TXM13A – LCD Digital Energy Meter

• ✅ Measures Total kWh only
• 🔋 Reference Voltage: 230VAC (170-250VAC)
• ⚡ Current: 10(60)A
• 📟 LCD Display: 6 + 1 digits

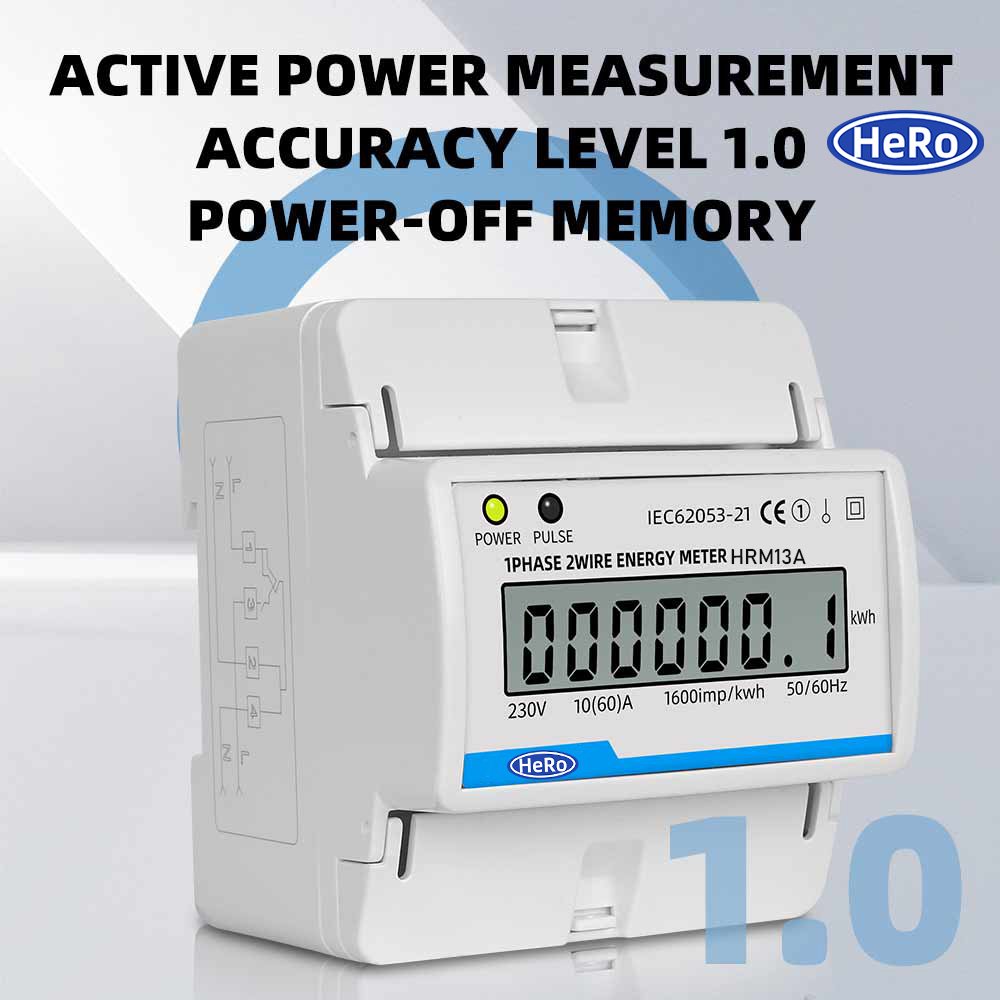

• 🎯 Accuracy: Class 1.0
• 🌐 Frequency: 50-60Hz
• 💡 Pulse Rate: 1600 imp/kWh

TXM13B – Analog Counter Energy Meter

• ✅ Measures Total kWh only
• 🔌 Analog Display: 5 + 1 digits (mechanical counter)
• Same electrical specs as TXM13A

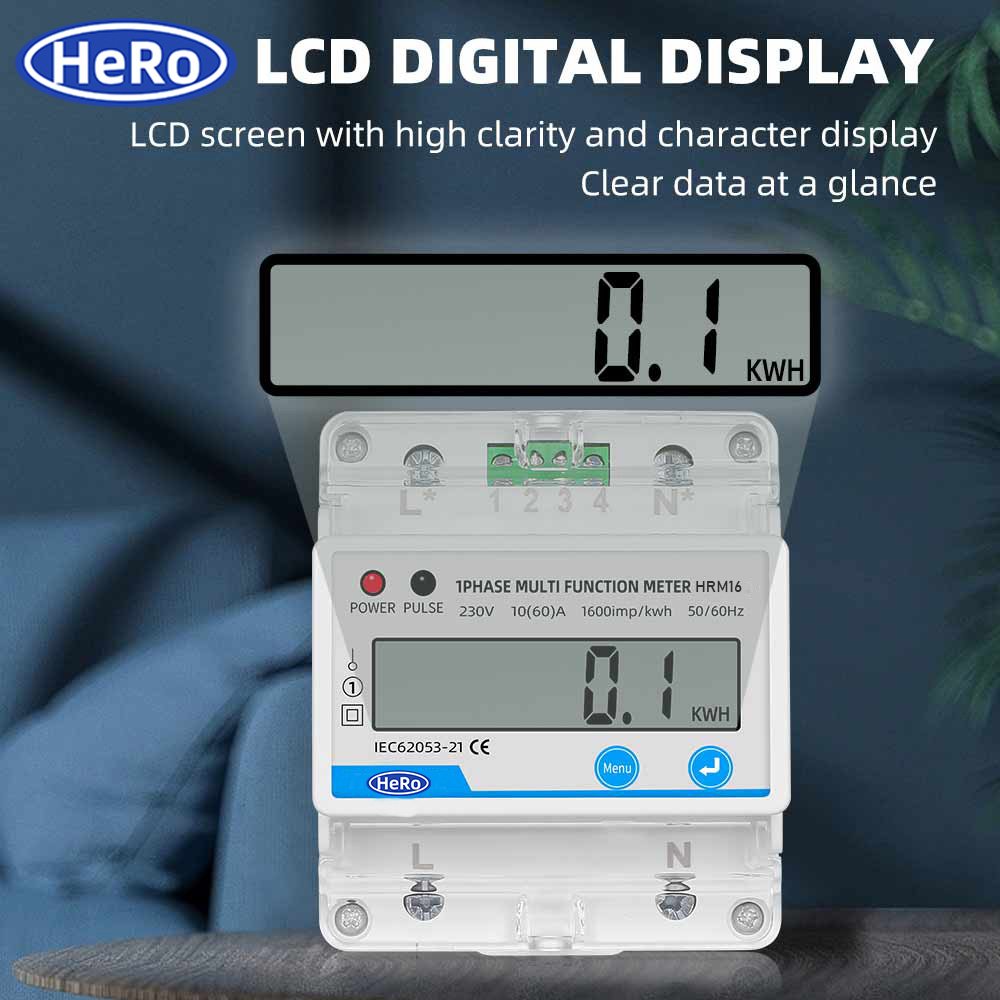

TXM16 – LCD Multifunction Energy Meter

• ✅ Displays Total, Positive, Negative & Reactive Energy (kWh)
• 📊 Shows Voltage, Current, Active Power, Power Factor, Frequency
• 📟 LCD Display: 6 + 2 digits
• ⚡ Current: 10(60)A
• 💡 Pulse Rate: 400 imp/kWh

Technical Specifications (All Models):

Applications:

• 🏠 Household electricity usage monitoring
• 🏢 Office or shop load tracking
• ⚙️ Industrial single-phase energy tracking

Package Includes:

• ✔️ 1 × Energy Meter (choose model)
• 📘 1 × Instruction Manual
