Din Rail Mount LED Signal Lamp 18mm – AC/DC 220V-230V Indicator Light (Red, Green, Blue, Orange, White)

Din Rail Mount LED Signal Lamp 18mm – AC/DC 220V-230V Indicator Light (Red, Green, Blue, Orange, White)

Product Overview:

The TX18 Din Rail LED Signal Lamp is designed for status indication in AC/DC 220V–230V electrical systems. This compact and reliable 18mm pilot light is ideal for use in control panels, electrical cabinets, industrial automation, and telecommunication systems. With multiple color options, it clearly signals power status, alarms, or operation conditions.

Key Features:

• 💡 Bright LED Indicator: Delivers clear and visible status feedback.

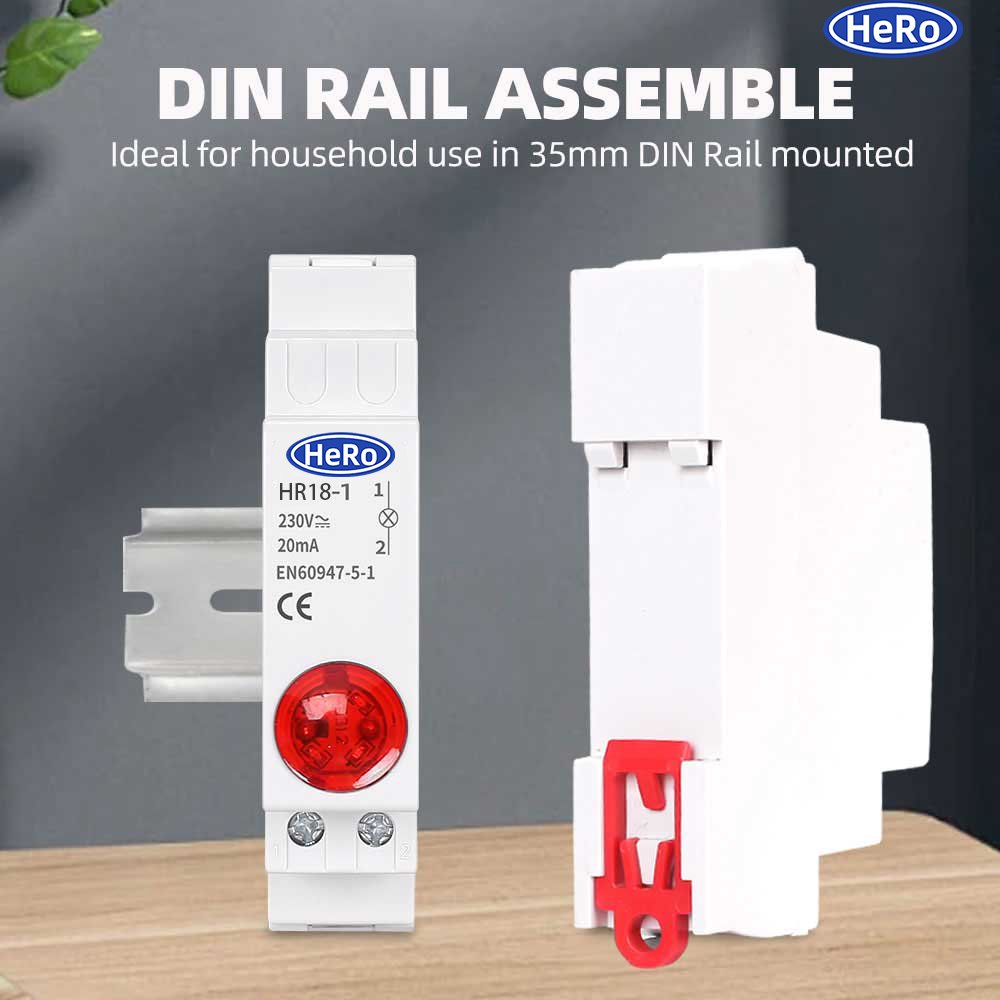

• 🔧 DIN Rail Mounting: Quick and secure installation in industrial control panels.
• 🔋 Wide Voltage Compatibility: Operates with both AC and DC voltages (220V–230V).
• 🕒 Long Working Life: Rated for up to 30,000 hours of continuous operation.
• 💪 Compact 18mm Size: Space-saving design for crowded electrical enclosures.
• 🌈 Color Options: Red, Green, Blue, Orange, White, or Multi-Color Combinations (Red+Green / Red+Green+Orange).

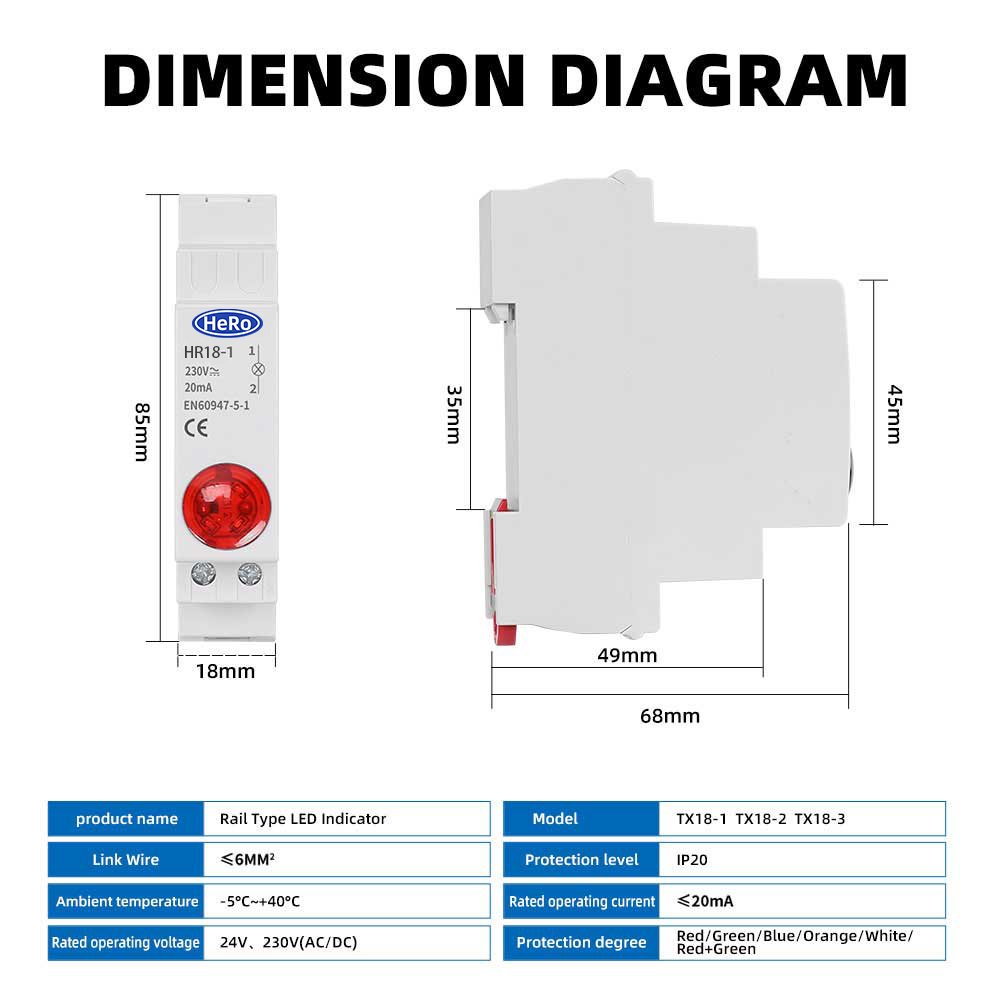

Technical Specifications:

• Model: TX18
• Mounting Type: DIN Rail
• Hole Diameter: 18mm
• Rated Voltage: AC/DC 220V – 230V
• Rated Current: ≤ 20mA
• Working Life: 30,000 hours
• Wire Capacity: ≤ 6mm²
• Tightening Torque: 0.8 N·m
• Protection Rating: IP20 (indoor use only)

Available Colors:

• 🔴 Red
• 🟢 Green
• 🔵 Blue
• 🟠 Orange
• ⚪ White
• 🔴🟢 Red + Green
• 🔴🟢🟠 Red + Green + Orange

Applications:

• ✔️ Control Panels & Distribution Boards
• ✔️ Telecommunication Racks
• ✔️ Factory Automation Systems
• ✔️ Electrical Equipment Status Indication
• ✔️ Alarm or Fault Indication Systems

Package Includes:

• 📦 1 × TX18 Din Rail LED Signal Lamp (Color as selected)

💡 Note: Ensure compatibility with your panel cutout size (18mm) and voltage range (220–230V AC/DC) before installation.
