Din Rail Mount LED Signal Lamp AC DC 220V 230V Indicating Pilot Lights Lamp Red Green Blue Orange White 9mm

Din Rail Mount 9mm LED Signal Lamp – AC/DC 220V-230V Indicator Light (Red, Green, Blue, Orange, White)

Product Overview:

The TX09 Din Rail LED Signal Lamp is a compact and reliable 9mm indicator light designed for industrial control systems, telecommunication panels, and automation equipment. Operating on AC/DC 220V–230V, this pilot lamp is perfect for visual alerts such as status signals, fault indications, or process confirmations in electrical systems.

Key Features:

• 💡 Clear Visual Indication: High-brightness LED with fast response and low power consumption.

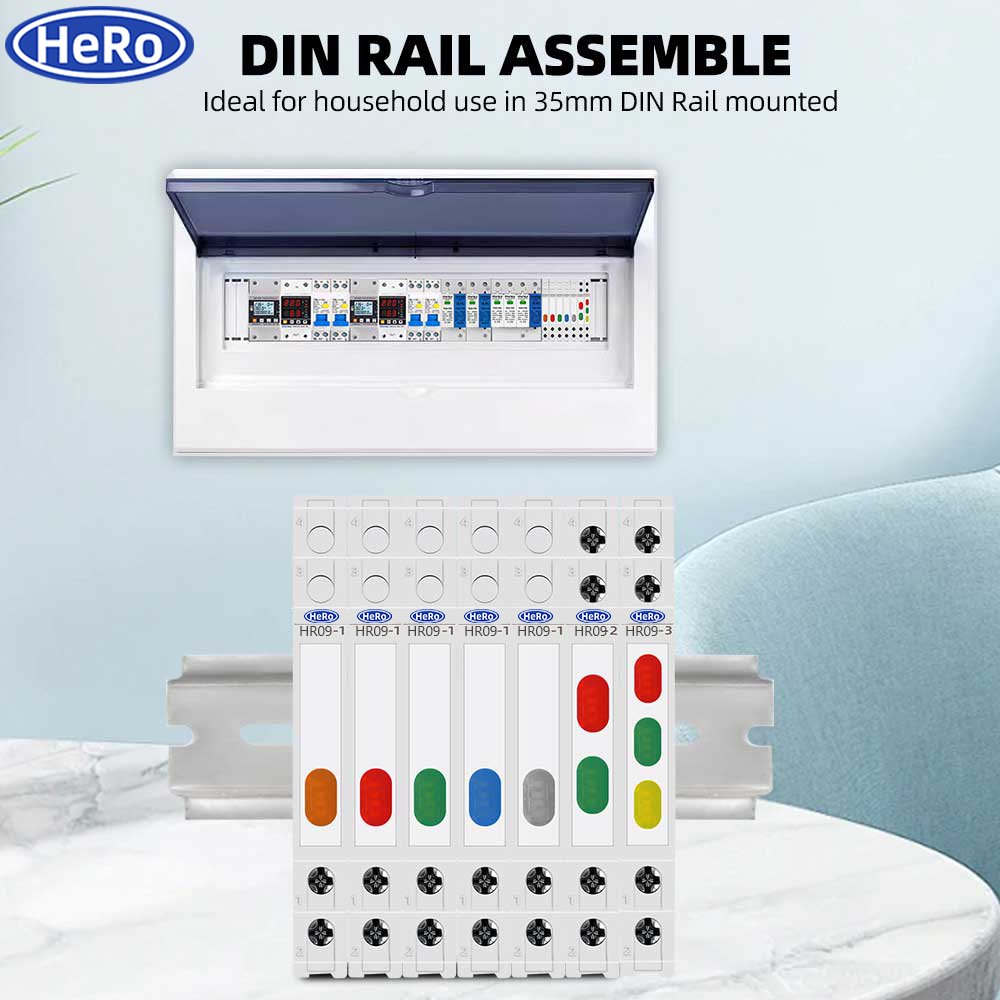

• 🔧 DIN Rail Mounting: Fast installation with standard rail compatibility.
• 🔋 Wide Voltage Support: Compatible with AC and DC systems up to 230V.
• 🕒 Extended Life: Reliable operation up to 30,000 hours.
• 🧩 Compact Size: 9mm design ideal for tight spaces in control cabinets.

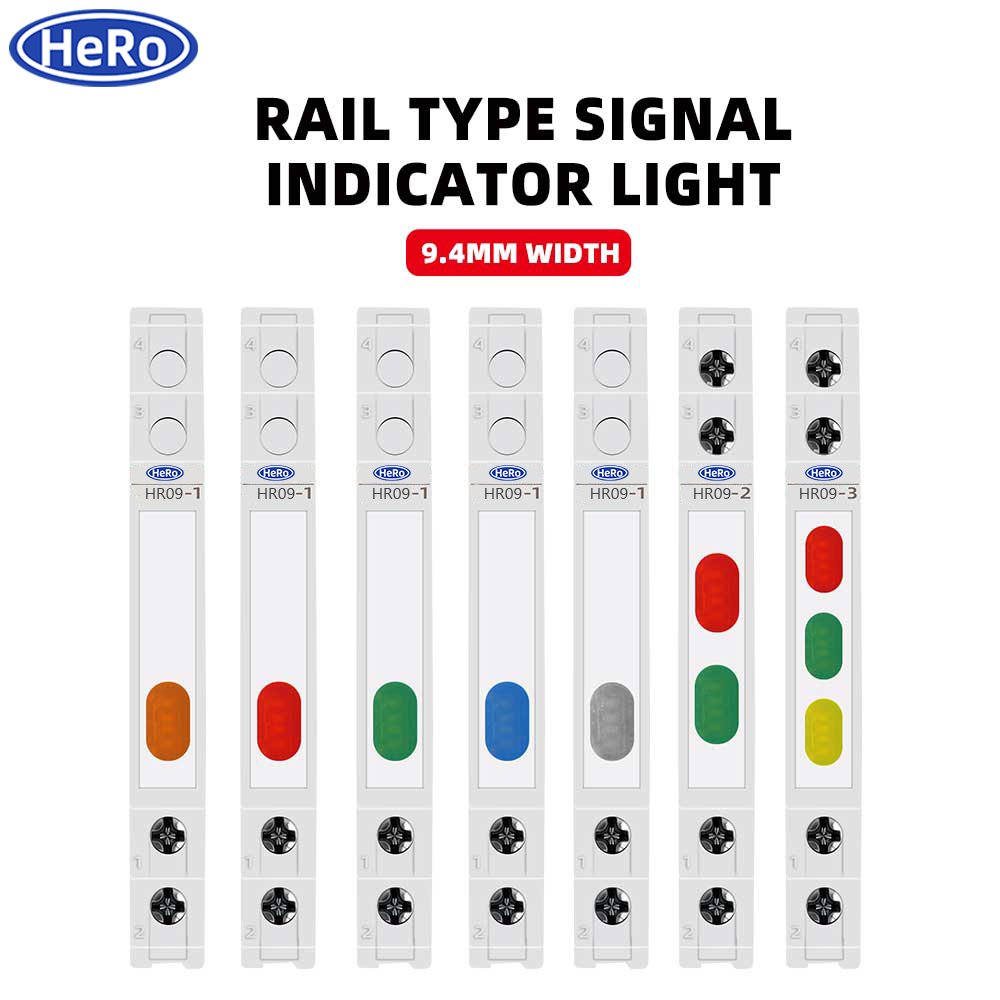

• 🌈 Multiple Color Options: Choose from Red, Green, Blue, Orange, White, or multi-color combinations.

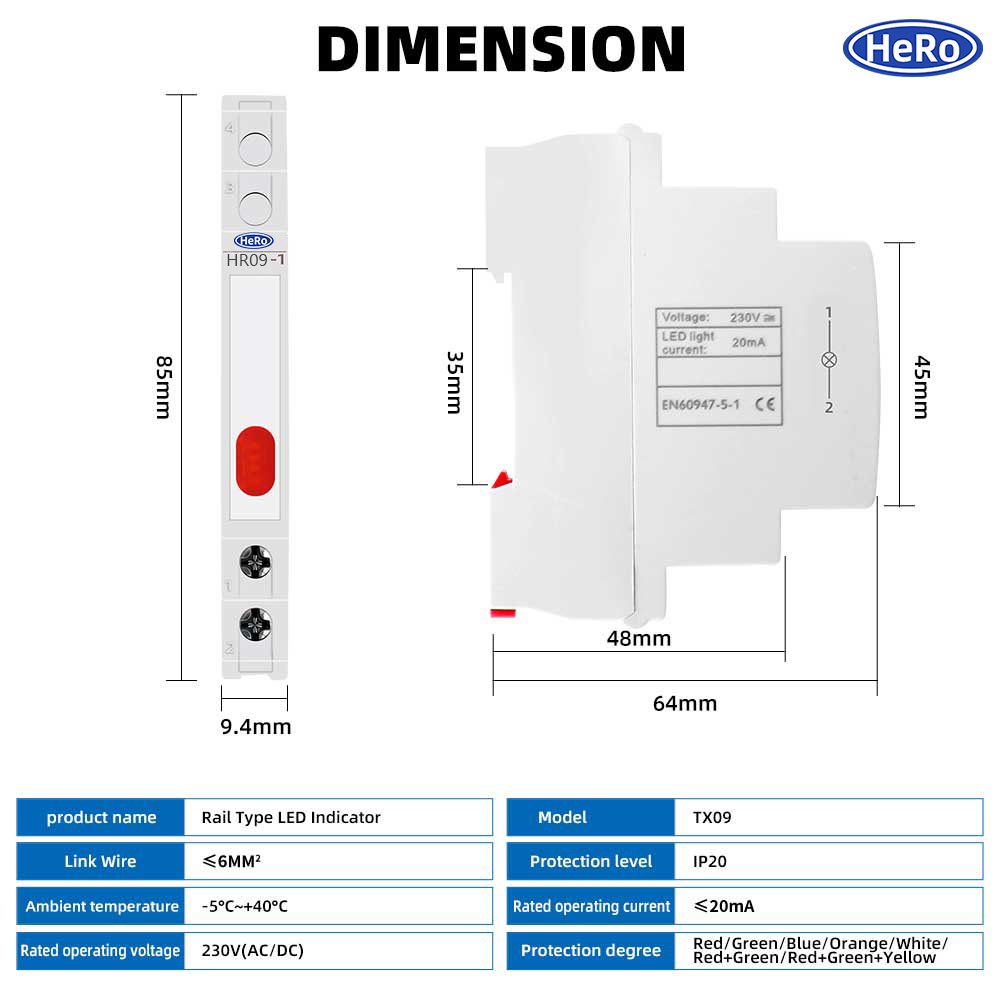

Technical Specifications:

• Model: TX09
• Mount Type: DIN Rail
• Diameter: 9mm
• Rated Voltage: 220V–230V AC/DC
• Rated Current: ≤ 20mA
• Working Life: 30,000 hours
• Wire Size: ≤ 6mm²
• Torque: 0.8 N·m
• Protection Level: IP20 (indoor use)

Available Colors:

• 🔴 Red
• 🟢 Green
• 🔵 Blue
• 🟠 Orange
• ⚪ White
• 🔴🟢 Red + Green
• 🔴🟢🟠 Red + Green + Orange

Applications:

• ✔️ Electrical Panels & Automation Systems
• ✔️ Control & Distribution Boards
• ✔️ Fault & Alarm Indication
• ✔️ Telecommunication Cabinets
• ✔️ Industrial Equipment Monitoring

Package Includes:

• 📦 1 × TX09 LED Signal Lamp (Color as selected)

💡 Note: Ensure your panel supports 9mm indicator holes and DIN rail installation before purchase.
