DL85 Voltage, Current & Frequency Meter – LED Digital Display
Product Overview:
The DL85 is a compact, multi-function panel meter designed for accurate monitoring of voltage, current, and frequency in electronic and electrical applications. It is ideal for power grids, control rooms, and small to medium transmission and distribution systems. Featuring a bright LED digital tube display and high measurement accuracy, this meter supports embedded installation for seamless integration.
Key Features:

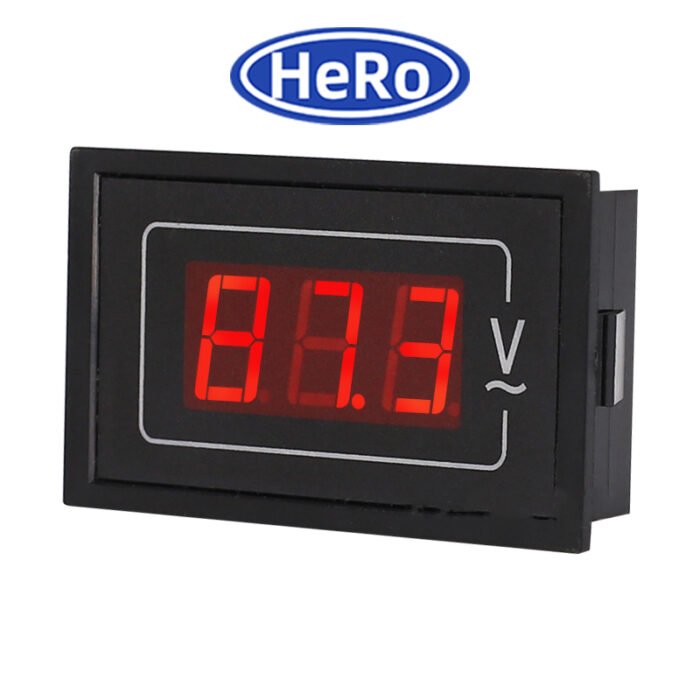

- 🔌 Voltage Range: 80–500 VAC (Voltage-Only Mode)

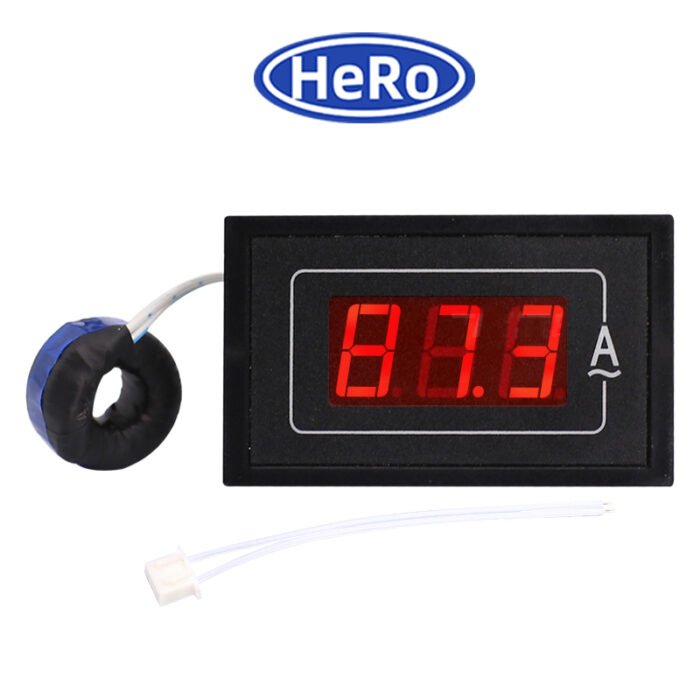

- ⚡ Current Range: 0–60A (Current-Only Mode)

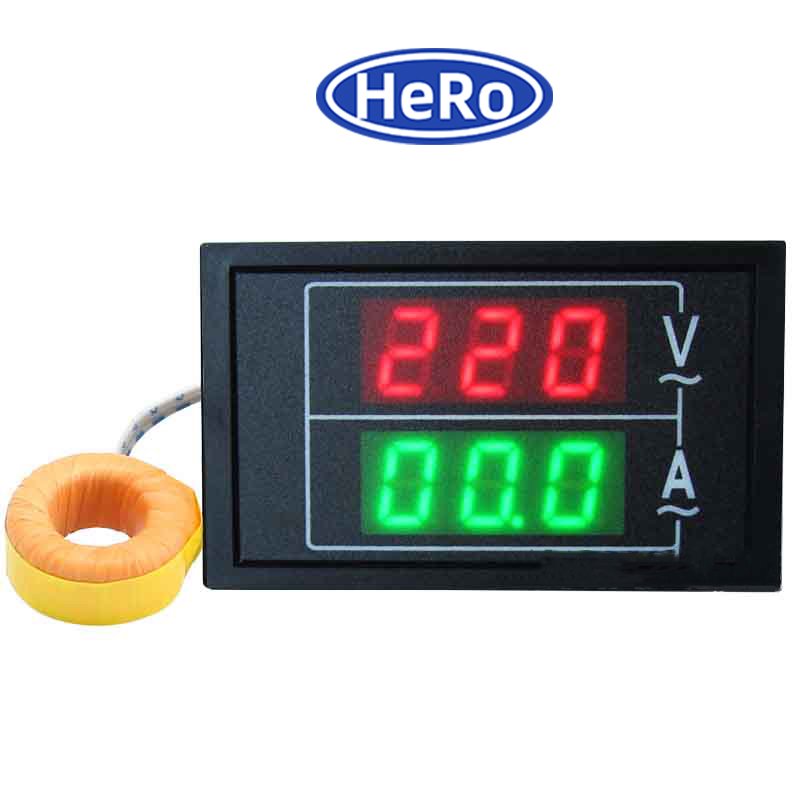

- 📊 Combined Voltage + Current Range: 100–300 VAC / 0–100A

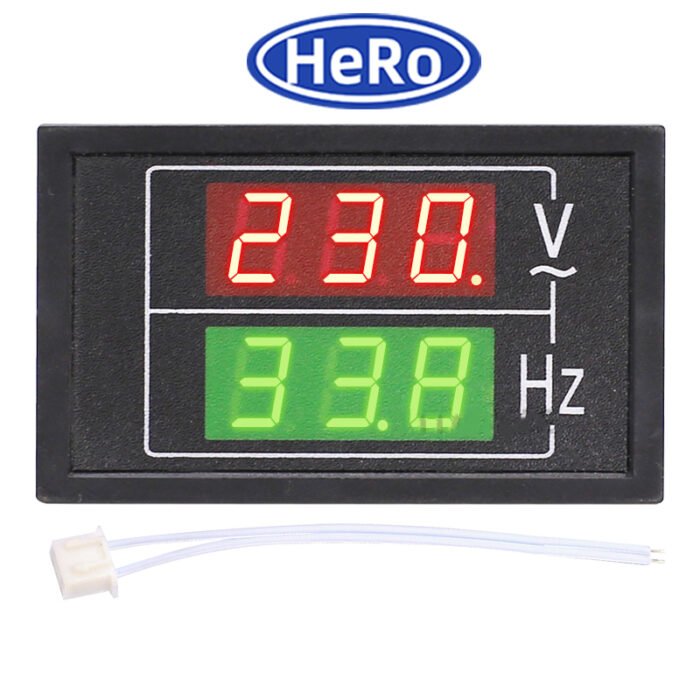

- 📈 Combined Voltage + Frequency Range: 100–300 VAC / 10–100 Hz
- 💡 Display Type: LED digital tube – bright and easy to read
- ✅ Accuracy: ±1% ±2 digits
- 🔧 Installation: Embedded panel mount
Specifications:
| Dimensions | 70 × 42 × 20 mm |
| Voltage Range | 80–500 VAC (V), 100–300 VAC (V+I/F) |
| Current Range | 0–60A or 0–100A (mode dependent) |
| Frequency Range | 10–100 Hz (V+F mode) |
| Power Supply | 220 VAC |
| Power Consumption | < 3VA |
| Material | Plastic |
| Display | LED digital tube |
| Installation Type | Embedded |
Applications:
- ✔️ Electrical panels and switchboards
- ✔️ Power grid and distribution systems
- ✔️ Industrial automation and control
Package Includes:
- ✅ 1 × DL85 Voltage/Current/Frequency Meter
