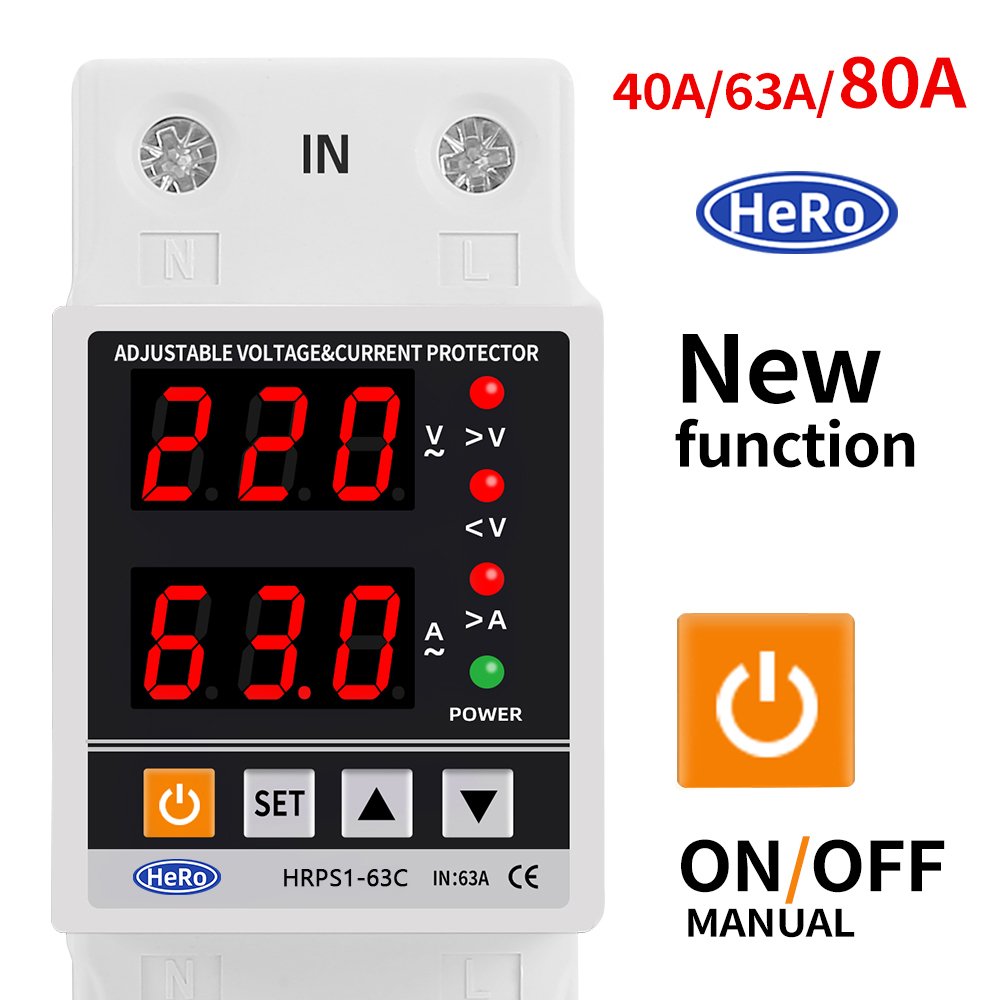

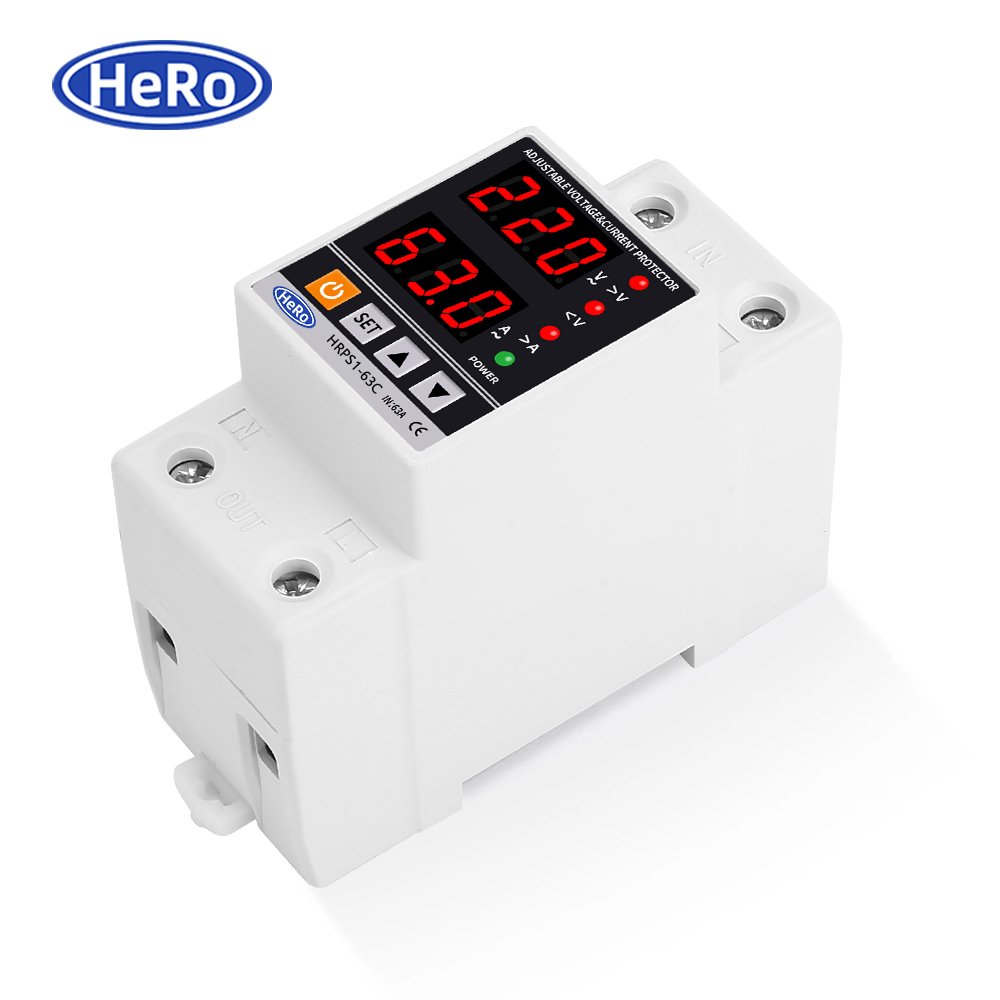

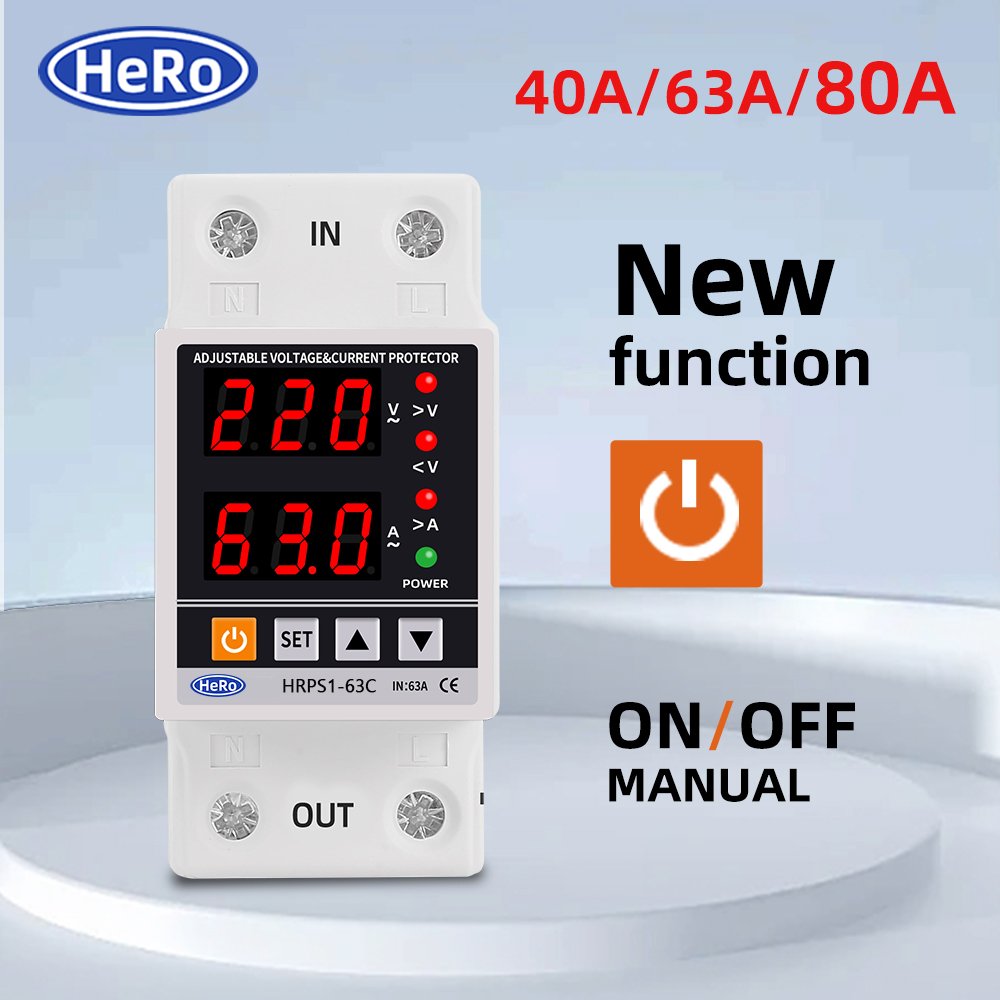

- 🛡️ Dual Display Adjustable Over/Under Voltage & Current Relay Protector
- 📦 Model: TVPS1-40A / TVPS1-63A
- 🔌 Power Supply: 230VAC, 50/60Hz
- ⚡ Max Loading Power:
- 40A (TVPS1-40A)
- 63A (TVPS1-63A)

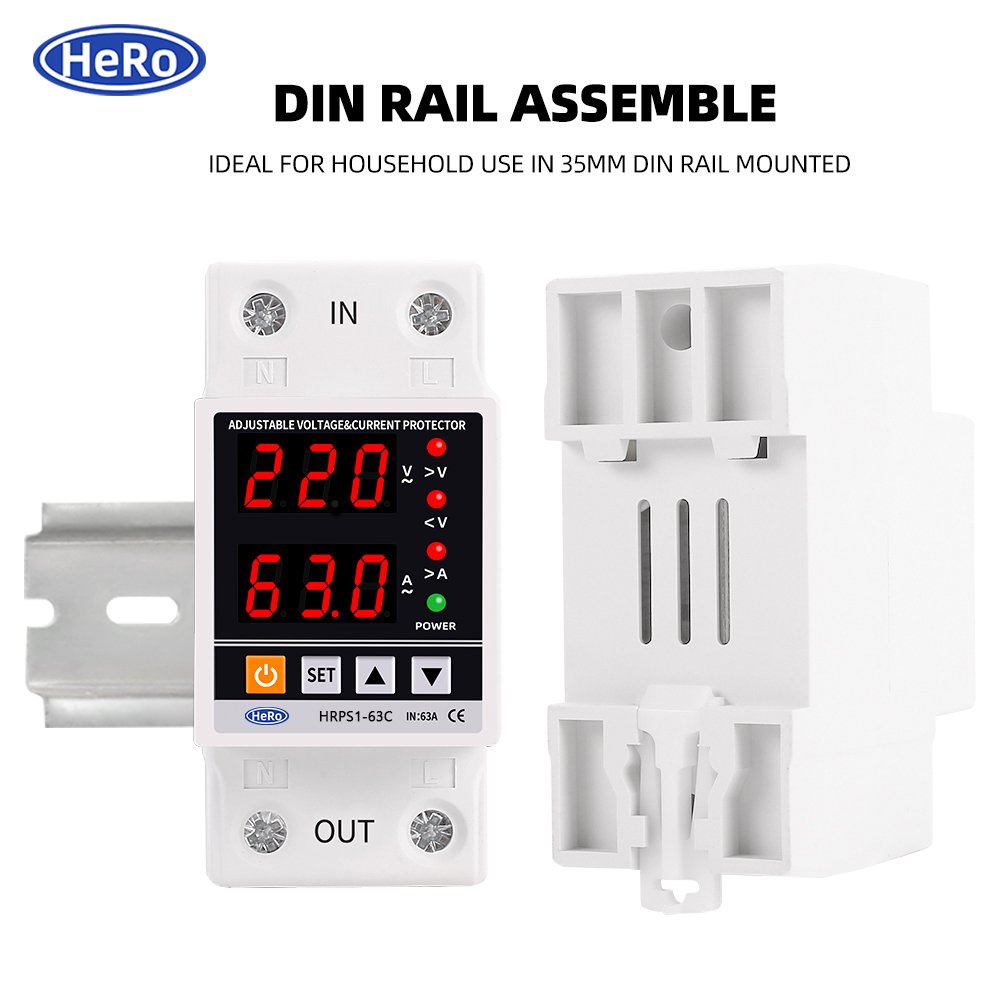

- 📏 Installation: 35mm DIN Rail
🔧 Key Protection Features:
- ⚡ Over-voltage Protection: Automatically cuts off power during voltage surges to protect connected devices.
- ⚠️ Under-voltage Protection: Safeguards appliances by disconnecting power during low voltage conditions.
- 🔥 Over-current Protection: Prevents damage caused by excessive current flow.
- ♻️ Automatic Recovery: Restores power automatically after voltage or current stabilization.
- ⏱️ Voltage Calibration: ±10% adjustable for precise voltage detection.
- 🔄 Current Calibration: ±9.5% adjustable for accurate current measurement.
📊 Monitoring Features:
- 🔋 Voltage Display: Real-time voltage measurement and monitoring.
- 🔌 Current Display: Real-time current measurement and monitoring.
⚙️ Additional Functions:
- 🔄 Restore Factory Settings: Press the “DOWN” button for more than 12 seconds.
- ❗ Fault Inquiry: Press the “UP” button for more than 12 seconds to check fault details.
💡 Ideal For:
- Protecting sensitive appliances such as refrigerators, air conditioners, washing machines, and other high-power devices.
- Ensuring safe and stable operation of household and industrial electronics during voltage and current fluctuations.
📝 Important Notes:

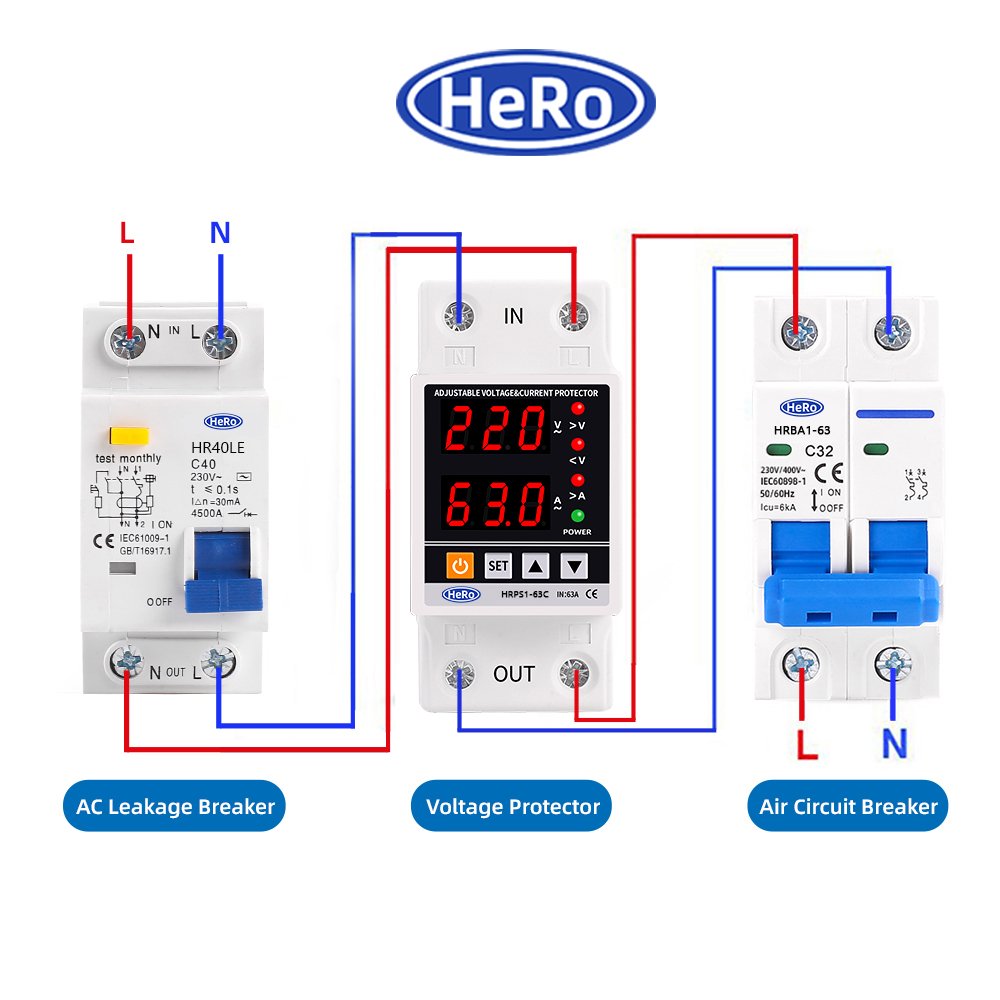

- ⏳ Initial Setup: Ensure proper wiring and configuration before use. The device will calibrate itself automatically upon first connection.
- 🛠️ Calibration: Use the voltage and current calibration features to fine-tune the device for optimal performance.
