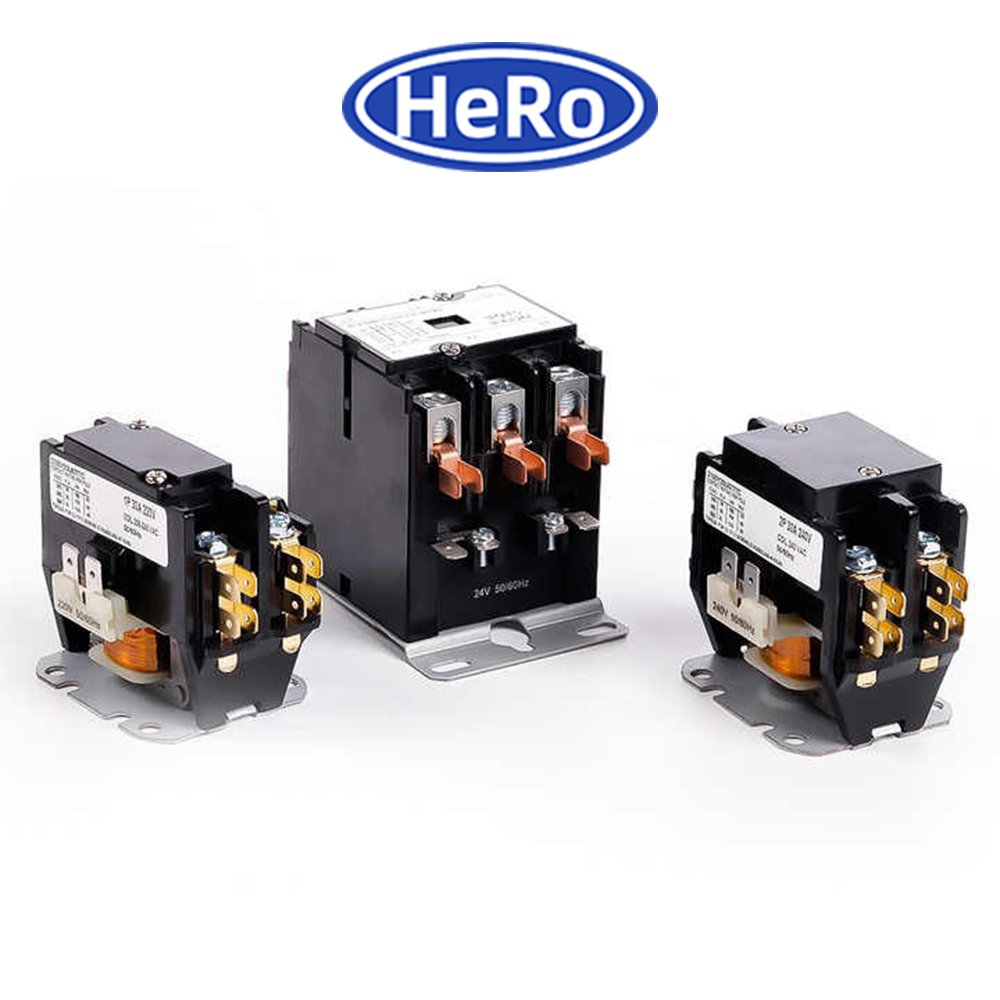

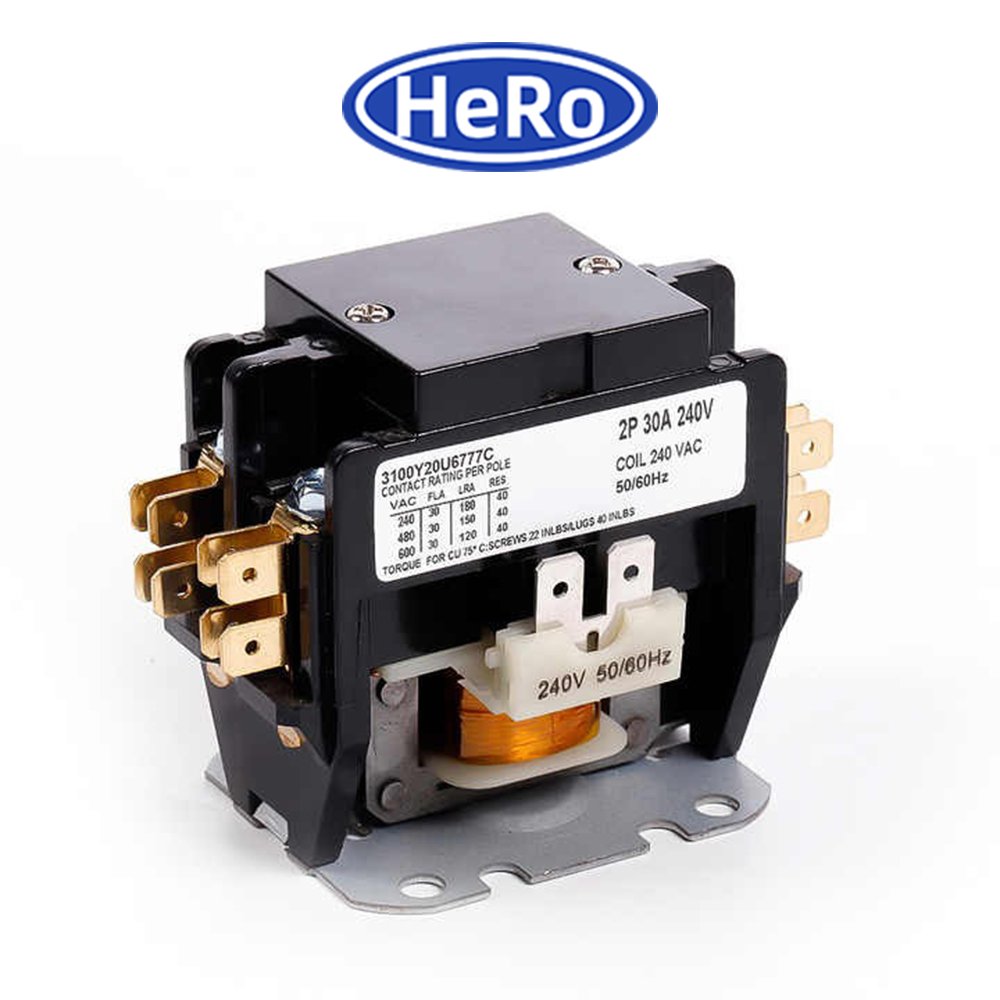

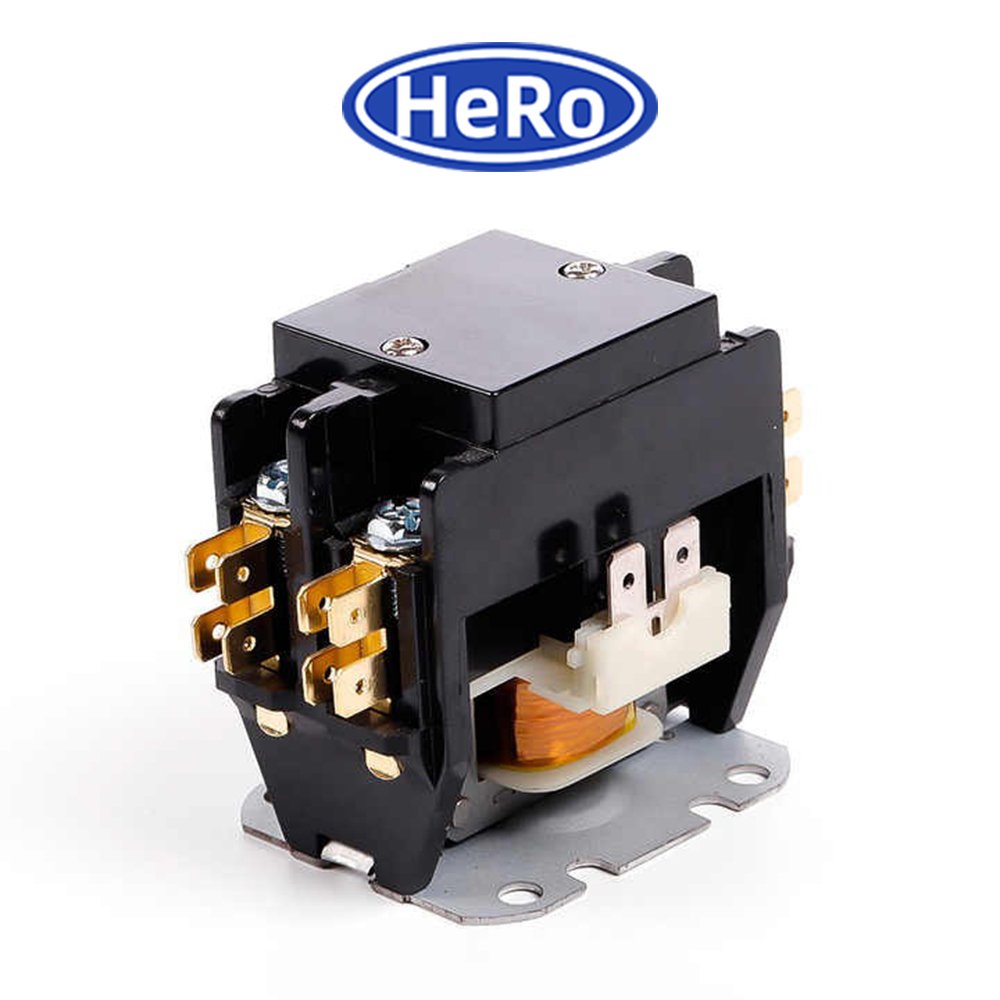

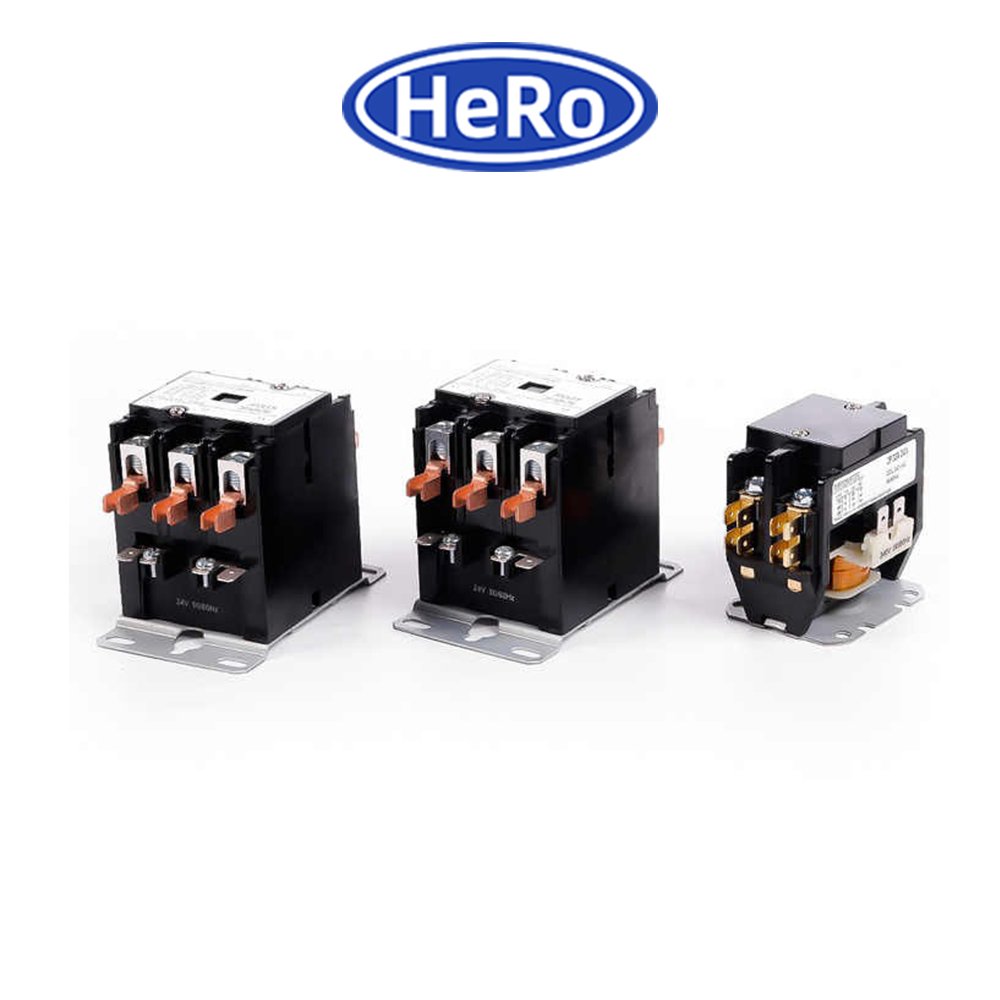

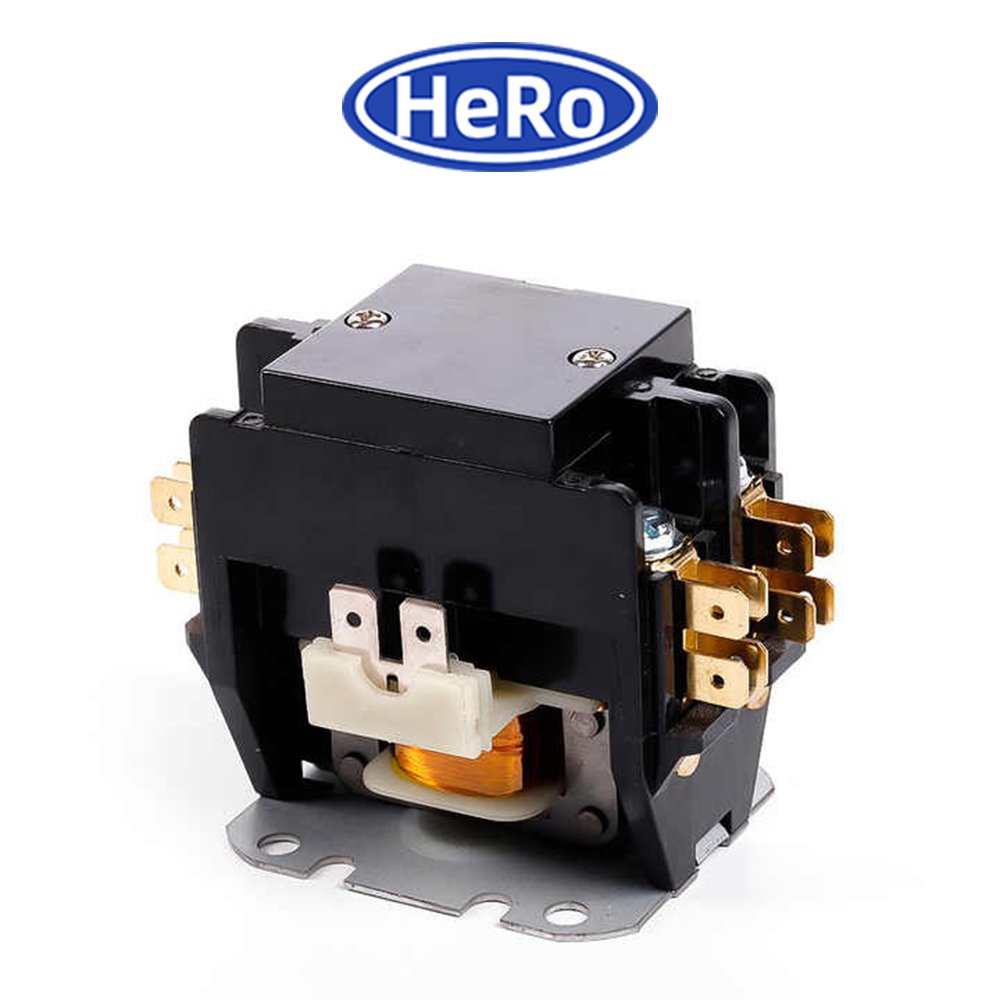

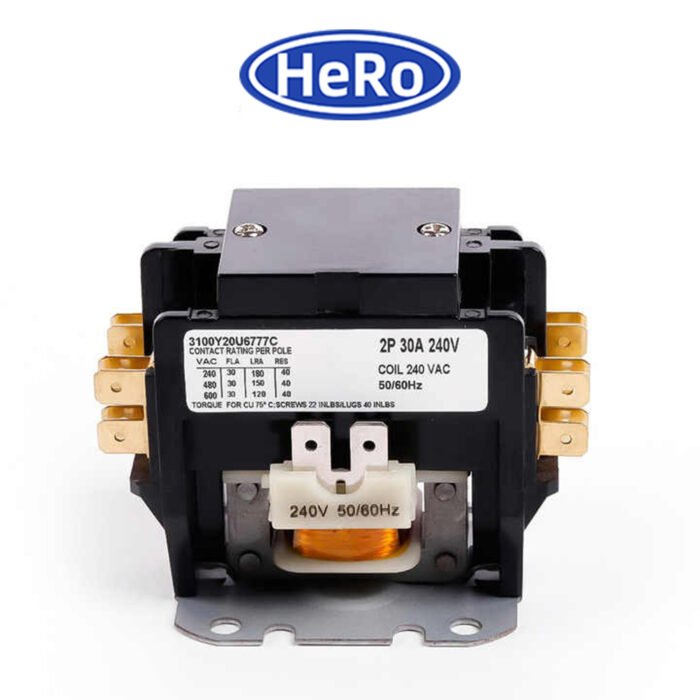

Electric AC 220V Contactors for 1P 2P 3P Air Conditioners HVAC Systems Parts
| Item | Value |
|---|---|
| Product Type | AC Contactor |
| Application | HVAC Systems / Apartment |
| Material | ABS Plastic |
| Feature | Flexible |
| Installation | Wall Mounted |
| Shape | Square |
| Electricity Type | 1P, 2P, 3P |
| Phase | 1 and 2 |
| Full Load Amps | 20A, 25A, 30A, 40A |
| Coil Voltage (50/60Hz) | 24V, 120V, 208V, 240V, 277V |
| Line Voltage | 240V, 277V, 480V, 600V |
| Locked Rotor Amps | 120A / 100A / 80A |
| Color | Black |
| Package | Carton Box |
| Dielectric Strength | 2200 VAC (contacts, coils, poles) |
| Insulation System | Class B (130°C) |
| Temperature Range | -40°C to +65°C |
| Certifications | TUV, UL, CE, RoHS |
| Packaging Size | 10×10×8 cm |
| Gross Weight | 1.000 kg |
