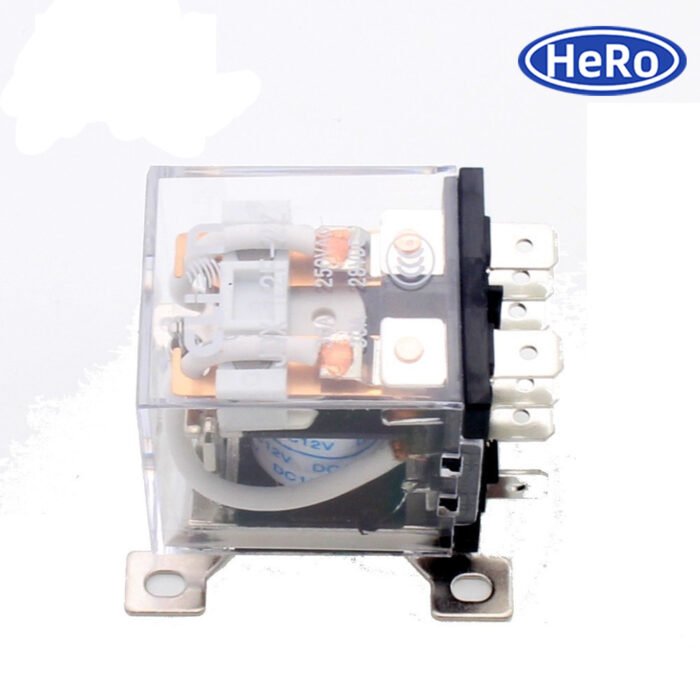

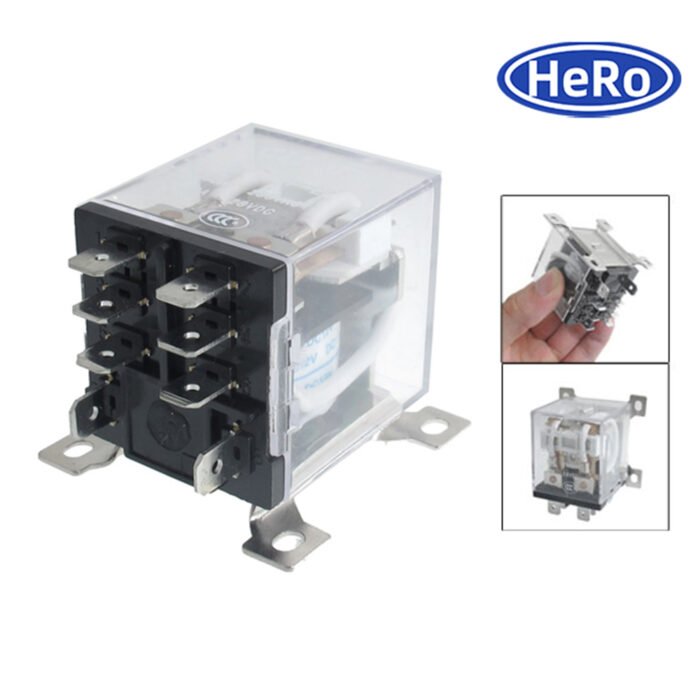

JQX-12F Power Relay Product Description
The JQX-12F Power Relay is a high-performance, versatile relay designed for reliable switching in both AC and DC applications. Featuring an SPDT (Single Pole Double Throw) contact configuration and a robust contact rating of 30A at 250V AC / 28V DC , this relay is ideal for heavy-duty industrial, commercial, and DIY projects. With multiple coil voltage options and a compact, durable design, the JQX-12F is a flexible and dependable solution for a wide range of electrical systems.
Key Features
- ⚡ High Contact Rating: Supports up to 30A at 250V AC / 28V DC , ensuring reliable performance in demanding applications.

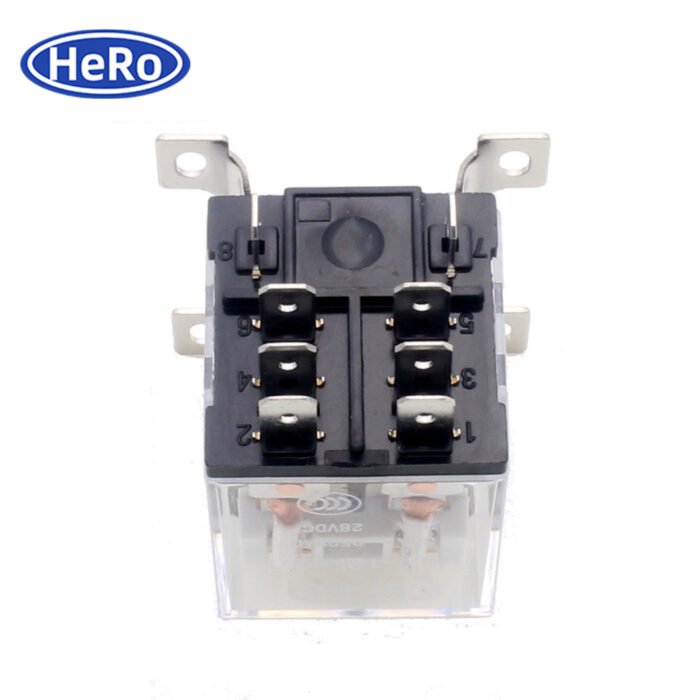

- 🔌 8-Pin Design: Standard 8-pin configuration for easy integration into control panels and circuits.
- 🌟 Multiple Coil Voltages: Available in DC 12V, DC 24V, 220V AC, and 380V AC , providing flexibility for different systems.
- 📏 Compact Size: Body dimensions (excluding pins): 3.5 x 3.3 x 4cm (1.4″ x 1.3″ x 1.6″) , with a total height of 4.8cm (1.6″) .
- 💪 Durable Construction: Made from high-quality plastic and metal , ensuring long-lasting performance and durability.
- 🔧 Easy Installation: Pre-drilled mounting holes with a center-to-center distance of 3.85 x 3.78cm (1.52″ x 1.49″) for secure placement.
Technical Specifications
Applications
- 🏭 Industrial Automation: Ideal for controlling motors, pumps, and other heavy machinery.
- 💡 Lighting Systems: Perfect for switching high-power lighting setups in commercial or residential spaces.
- 🚗 Automotive Systems: Suitable for automotive applications requiring high-current switching.
- 🎮 DIY Projects: Great for custom controllers, power distribution systems, or hobbyist projects.
- 🏠 Home Appliances: Reliable for appliances like air conditioners, water heaters, and refrigerators.
Package Includes
- 1x JQX-12F Power Relay
