K J type probe Thermocouple

• 🌡️ K/J Type Thermocouple Probe
• ⚙️ Type: K-Type or J-Type (Optional)

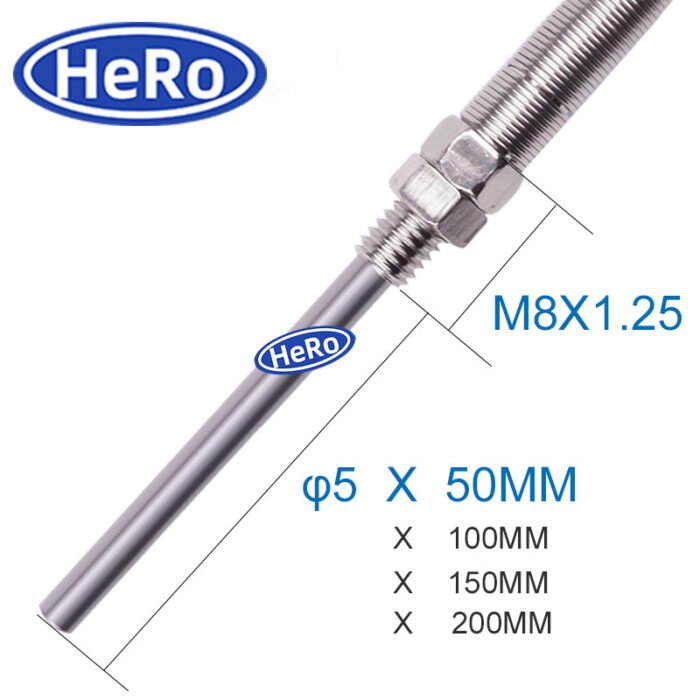

• 📏 Probe Length Options: 50mm, 100mm, 150mm, 200mm
• 📦 Probe Diameter: 5mm
• 🔒 Thread Size: M8
• ⚡ Cable Length: 2 meters
• 🔥 Operating Temperature Range: 0°C to 400°C

🔧 Key Features:

• 🌡️ Precise Temperature Measurement: Available in both K-Type and J-Type thermocouples for accurate temperature sensing.
• 🔥 High-Temperature Resistance: Designed with fiberglass internal insulation for durability and performance in high-temperature environments.
• 💪 Durable Construction: Stainless steel probe ensures resistance to corrosion and wear.

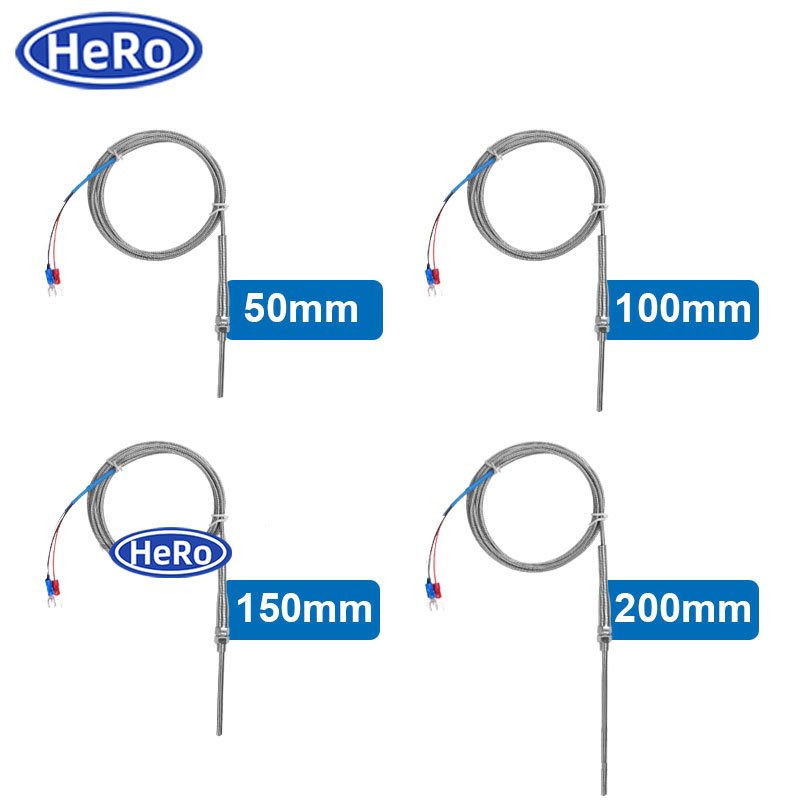

• 📏 Customizable Probe Length: Available in multiple lengths (50mm, 100mm, 150mm, 200mm) to suit various applications.
• 🔗 Secure Installation: Equipped with an M8 thread for easy and reliable mounting.

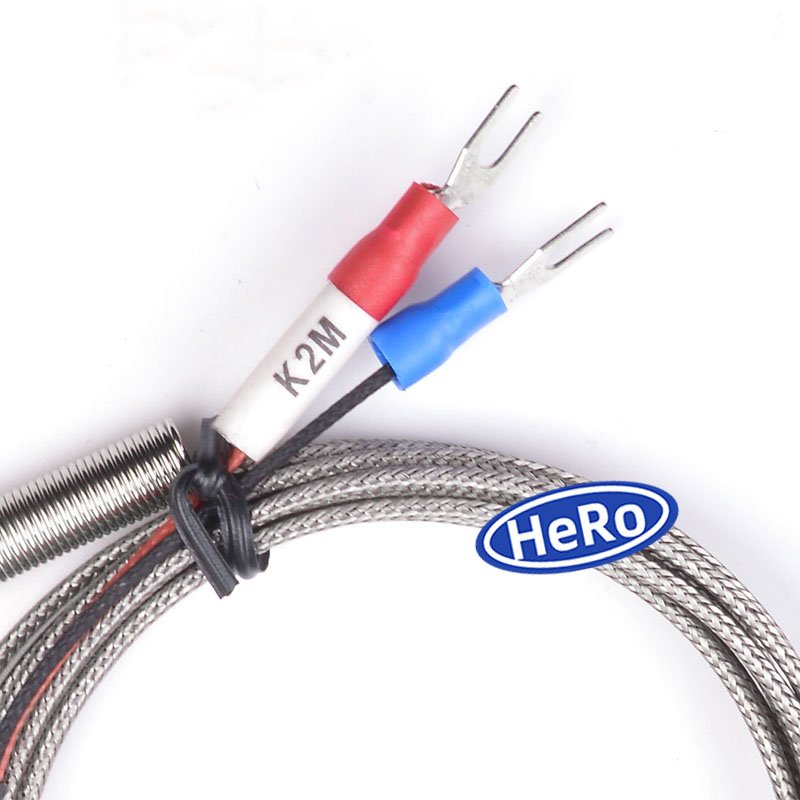

• 🔌 Connector Type: Spade-type connector for convenient wiring and secure connections.

⚙️ Technical Specifications:

• 🌡️ Thermocouple Type: K-Type or J-Type (Optional)
• 🔥 Operating Temperature Range: 0°C to 400°C
• ⚡ Cable Length: 2 meters
• 🔍 Probe Length Options: 50mm, 100mm, 150mm, 200mm
• 📦 Probe Diameter: 5mm
• 🔒 Thread Size: M8
• ⚡ Cable Internal Insulation: Fiberglass for enhanced heat resistance and durability.
• 🔌 Connector Type: Spade-type connector

💡 Main Functionality:

• Provides accurate and reliable temperature measurement for industrial, commercial, and scientific applications.
• Ideal for use in environments with moderate to high temperatures (up to 400°C).
• Designed for easy installation and integration into existing systems.

⚙️ Applications:

• Industrial machinery and equipment temperature monitoring.
• HVAC systems and heating/cooling processes.
• Food processing, pharmaceuticals, and laboratory environments.
• Any application requiring precise and durable temperature sensing.

📝 Important Notes:

• ⚠️ Probe Selection: Choose the appropriate probe length based on the specific requirements of your application.
• 🌡️ Temperature Range: Ensure the thermocouple is used within its specified operating range (0°C to 400°C) to avoid damage or inaccurate readings.
• ⚡ Cable Handling: Avoid excessive bending or pulling of the cable to maintain the integrity of the fiberglass insulation.

📦 Package Includes:

• 1x K-Type or J-Type Thermocouple Probe (Based on selection).
• 1x M8 Threaded Mounting Nut.
