Multifunction 3 Phase 4 Wire Bidirectional Energy Meter – 100A AC 380V | LCD Display | Solar PV Compatible
Product Overview:
This advanced multifunction bidirectional energy meter is designed for real-time monitoring and precision tracking of electrical parameters in 3-phase systems. Suitable for both consumption and solar PV feedback systems, it displays real-time KWh, voltage, current, active/reactive power, and more. Ideal for industrial, commercial, and renewable energy applications.
Key Features:

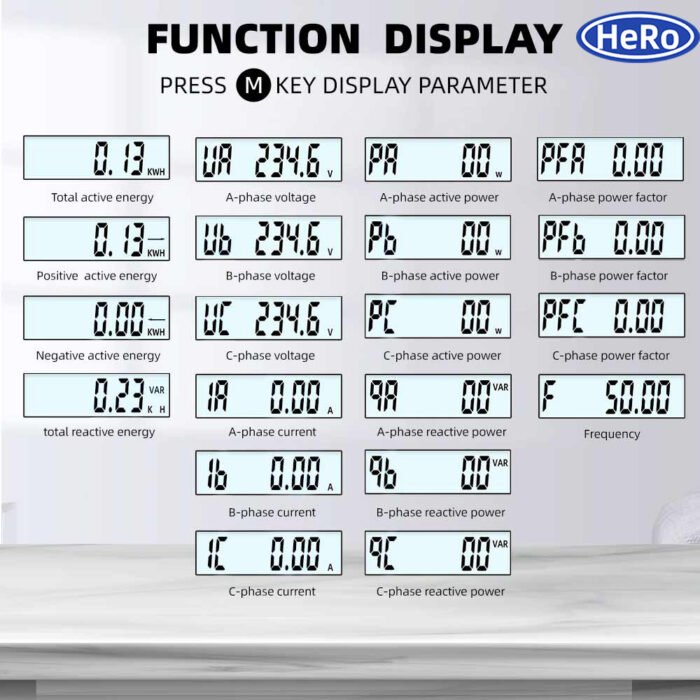

- 📟 Real-time LCD Display: Total KWh, positive/negative KWh, voltage, current, active & reactive power, frequency, and power factor.
- 🔁 Bidirectional Measurement: Track both power consumption and solar PV feedback.
- ⚡ 3 Phase 4 Wire Input: Supports 3×220/380V or 3×230/400V systems.
- 🌞 Solar PV Compatible: Ideal for grid-tied or hybrid solar inverter systems.

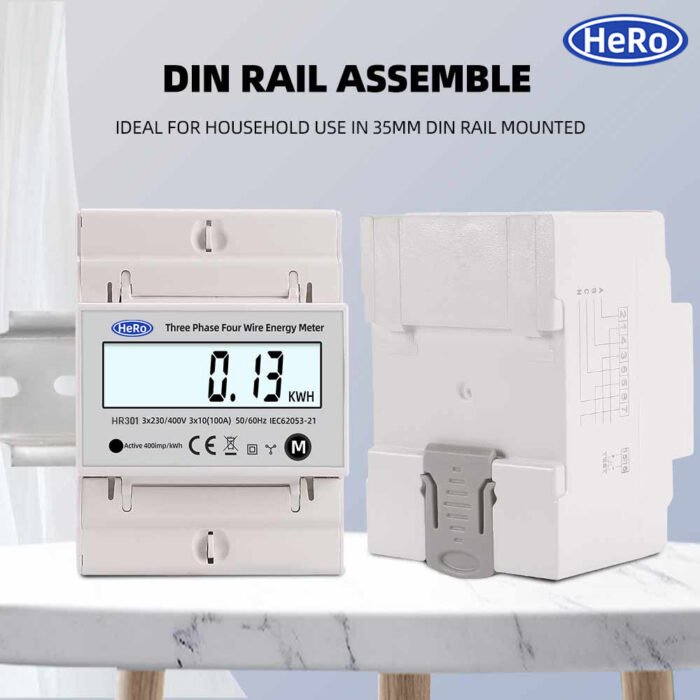

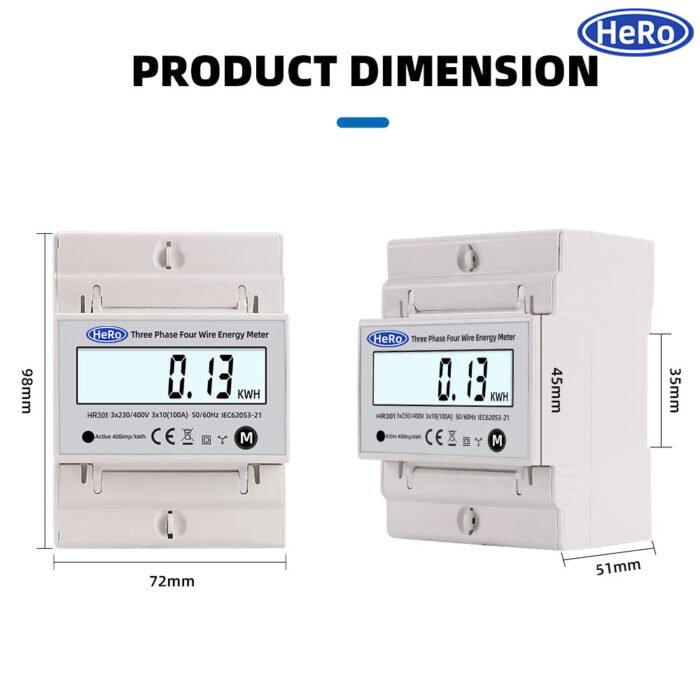

- 🛠️ DIN Rail Mountable: Compact size with standard 35mm DIN rail design.
Technical Specifications:
| Reference Voltage | 3 × 220/380V or 3 × 230/400V |
| Reference Current | 3 × 10(100A) |
| Accuracy Class | Class 1.0 |
| Frequency | 50Hz / 60Hz |
| Power Factor | 0.00 – 1.00 |
| Constant Pulse | 400 imp/kWh |
| Power Consumption | ≤2W / 10VA |
| Starting Current | 0.004Ib |
| Operating Temp | -20°C ~ +55°C |
| Storage Temp | -25°C ~ +70°C |
| Operating Voltage | 0.9 – 1.1 Rated Voltage |
| Utmost Voltage | 0.8 – 1.15 Rated Voltage |
Applications:
- 🏢 Commercial & Industrial Power Monitoring
- 🔌 Electrical Panels with 3-Phase Supply
- 🌞 Solar PV Systems (Bidirectional Measurement)
