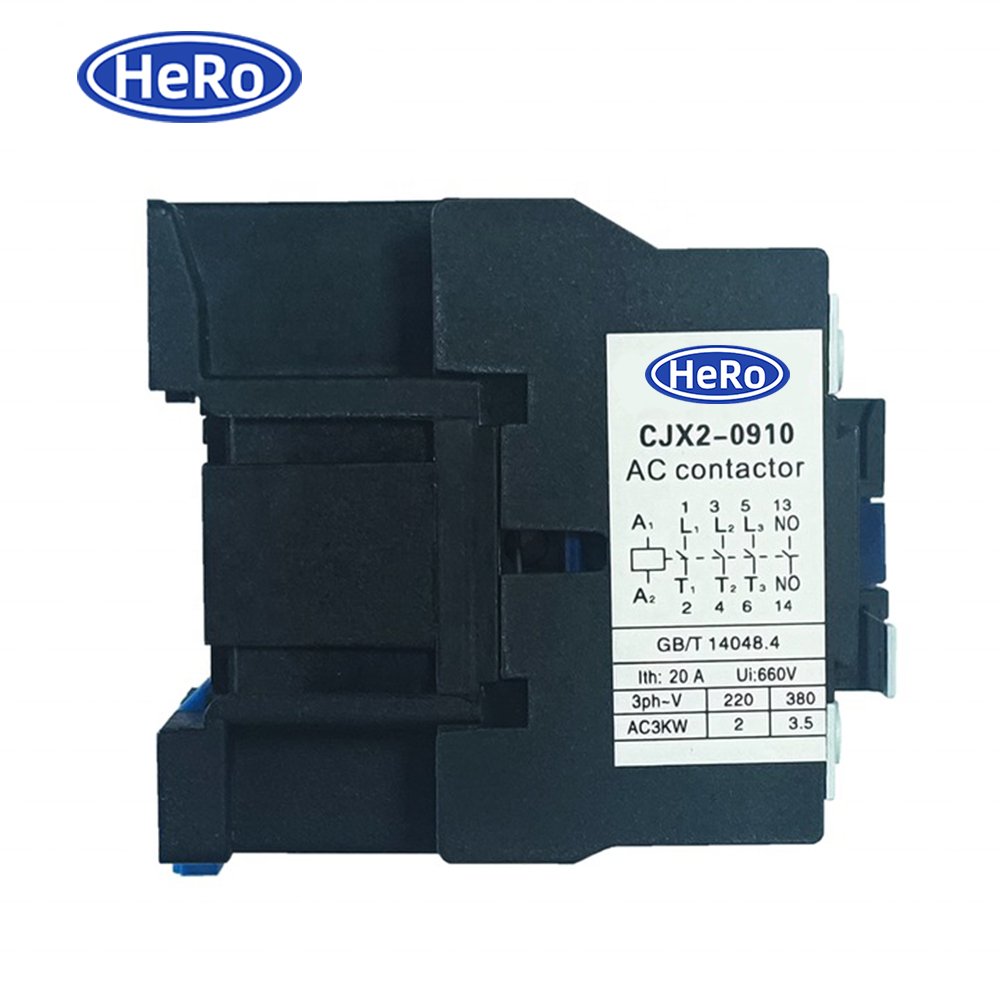

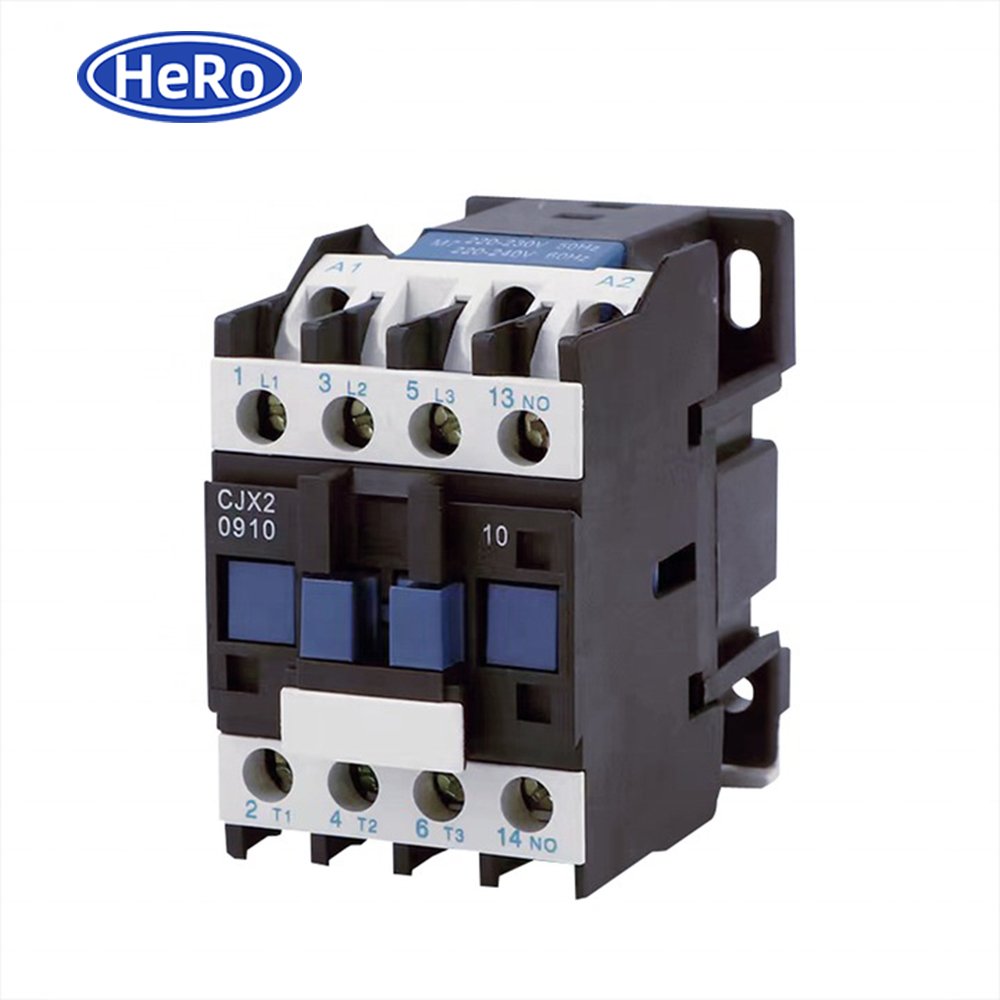

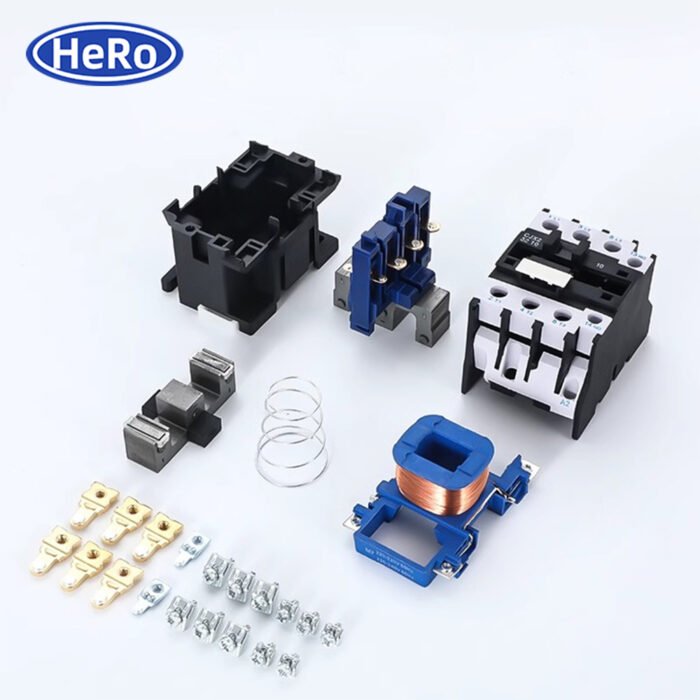

⚡ MUTAI CJX2-0910 AC Magnetic Contactor – 9A to 95A | 3 Pole | 220V | DIN Rail Mount
✔️ Product Overview:
The MUTAI CJX2-0910 AC contactor is designed for use in industrial automation systems and electric motor controls. Supporting currents from 9A to 95A, it operates at AC 50/60Hz with rated voltages up to 660V. Compact, reliable, and easy to mount on DIN rails, it is ideal for frequent circuit switching and motor starting.
🔧 Key Features:
- 🏷️ Brand: MUTAI
- 🔌 Model: CJX2-0910
- ⚡ Electricity Type: AC
- 🔄 Phase: 3 Phase
- 📈 Main Circuit Rated Current: 9A – 95A
- 🔁 Rated Frequency: 50Hz / 60Hz

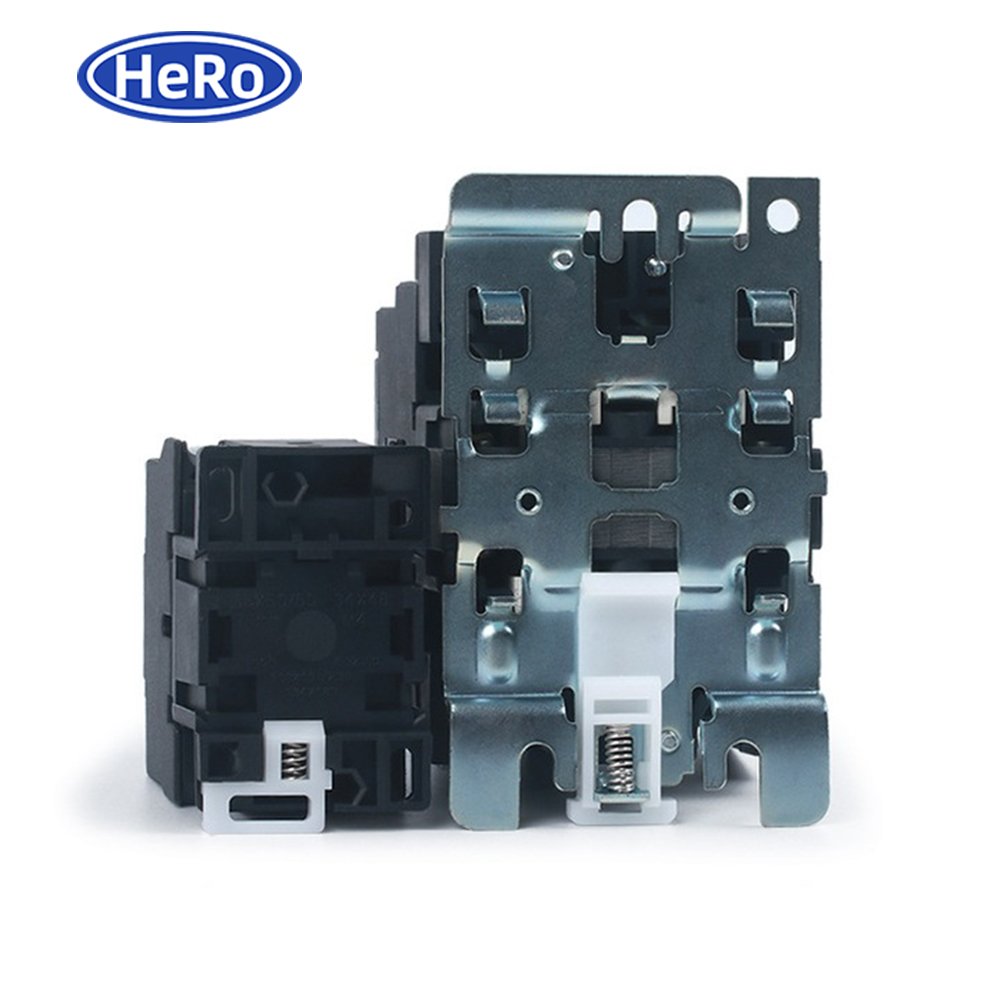

- 🔩 Mounting Type: DIN Rail
- 🛡️ Contact Material: Silver Contacts
- 🏗️ Material: Refractory Material
- 🎨 Color: Black / Blue / White
- 📋 Standard: IEC 60947-4
- ✅ Certificate: CCC, CE
- 🔌 Electric Life: 1,200 times
💼 Applications:
- 🛠️ AC Motor Control
- ⚙️ Industrial Automation
- 🔥 Heating & Cooling Equipment
- 🔁 Circuit Switching and Starting
📦 Packaging Information:
- 📦 Package Size: 5 x 8 x 9 cm
- ⚖️ Gross Weight: 0.5 kg
- 🔄 Selling Unit: Single Item
💡 Dependable contactor solution for motor protection and automation control tasks. Built to perform with safety and reliability.
Technical Feature
| Type | CJX2-0910 | CJX2-1210 | CJX2-1810 | |
|---|---|---|---|---|
| Rated Current ln (A) | AC-3 | 9 | 12 | 18 |
| AC-4 | 3.5 | 5 | 7.7 | |
| Standard power rating of 3 phase motors 50/60Hz in category AC-3 | 220/230V | 2.2 | 3 | 4 |
| 380/400V | 4 | 5.5 | 7.5 | |
| 415V | 4 | 5.5 | 9 | |
| 500V | 5.5 | 7.5 | 10 | |
| 660/690V | 5.5 | 7.5 | 10 | |
| Rated heat current (A) | 20 | 20 | 32 | |
| Electric life | AC-3 (×10⁴) | 100 | 100 | 100 |
| AC-4 (×10⁴) | 20 | 20 | 20 | |
| Mechanical life (×10⁴) | 1000 | 1000 | 1000 | |
| Number of contacts | 3P+NO | 3P+NO | 3P+NO | |
| 3P+NC | 3P+NC | 3P+NC | ||
