Single Phase Two Wire LCD Digital Wattmeter – Din Rail Energy Meter 230V 50Hz DDS662
Product Overview:
The DDS662 is a compact, high-precision single-phase electronic energy meter designed for real-time measurement of energy consumption. Equipped with an LCD backlight display and built-in safety features, it offers reliable performance in residential and light commercial applications. The 17.5mm slim design fits standard 35mm DIN rail systems.
Key Features:
- 🔌 Voltage & Frequency: AC 220V/230V, 50/60Hz
- ⚡ Current Range: 0.1–80A (5(80)A max)
- 📟 Display: LCD with backlight (energy, voltage, current, power)
- 🧱 Mounting: 35mm DIN rail (DIN EN50022 compliant)
- 🔒 Secure Data: No reset button to prevent manual manipulation
- 🔴 Red Pulse LED: Indicates energy pulse output
- 🧲 Electromagnetic Resistant: Built with SMT and LSI for stable operation
Specifications:
| Model | DDS662 |
| Accuracy | Class 1.0 |
| Voltage Range | 200–250VAC |
| Current Range | 0.1–80A |
| Power Measurement | 0.1–17000W |
| Energy Range | 0.1–99999.9 kWh |
| Display Type | LCD (with or without backlight) |
| Insulation | 4KV/1min, 6KV impulse |
| Operating Temp. | -20°C to +50°C |

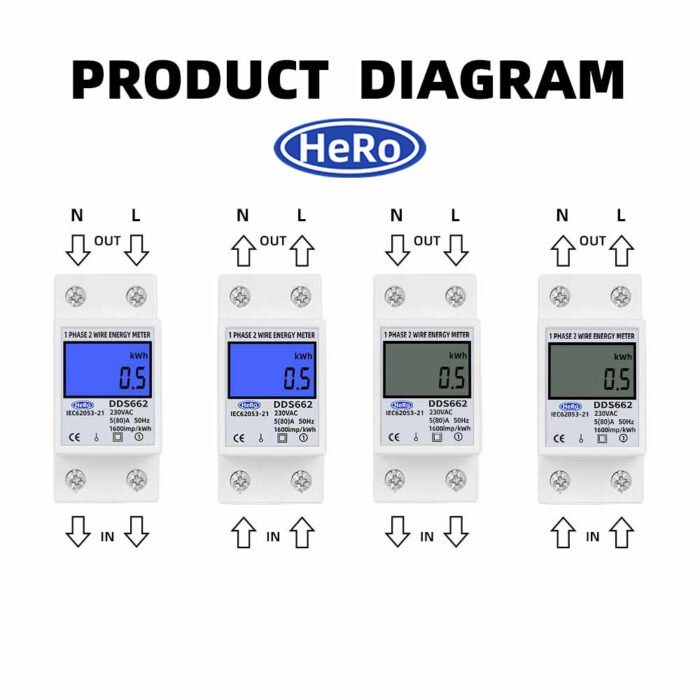

| Installation Method | Up-out/down-in or up-in/down-out |

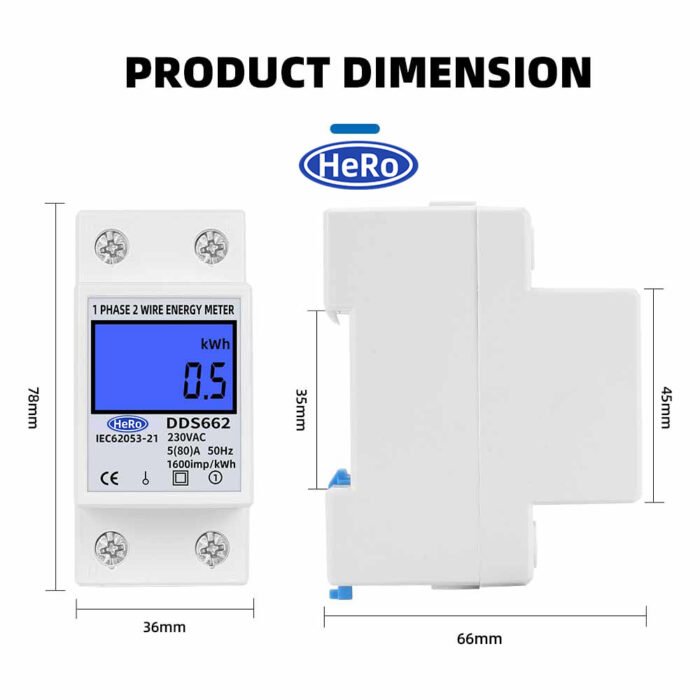

| Pole Width | 17.5mm |
| Package Size | 8.6 × 4.2 × 7.2 cm |
Applications:
- 🏠 Household electrical consumption monitoring
- 🏢 Small commercial and office load tracking
- 🔧 DIY and technical energy usage measurement
Package Includes:
- ✔️ 1 × DDS662 Energy Meter
- 📘 1 × User Manual (English)
