Solar Photovoltaic PV Combiner Box Surge Lightning Protection 2 Input 1 Out 2 String DC 600V Fuse MCB SPD Waterproof Box IP65

• ☀️ Solar Photovoltaic (PV) Combiner Box with Surge and Lightning Protection
• 📦 Type: Waterproof Enclosure (IP65)
• ⚡ Rated Voltage: DC 600V

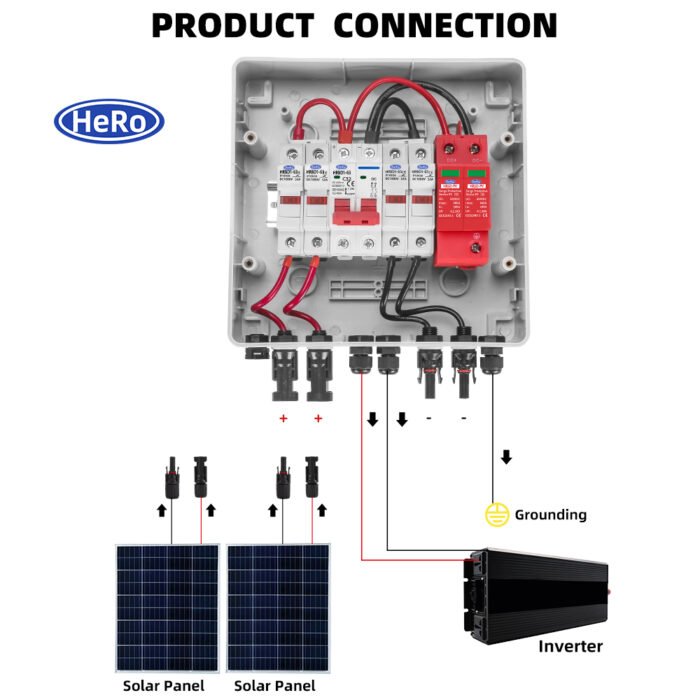

• ⚙️ Configuration: 2 Inputs, 1 Output, 2 Strings

🔧 Key Components:

• 🔥 Fuse Holder:
  • Voltage Rating: 1000V
  • Fuse Capacity: 15A
• ⚡ MCB (Miniature Circuit Breaker):
  • Pole Configuration: 2P
  • Voltage Rating: DC 600V
  • Current Ratings Available: 16A, 20A, 25A, 32A, 40A, 50A, 63A
• ⚠️ SPD (Surge Protective Device):
  • Pole Configuration: 2P
  • Voltage Rating: DC 600V

💡 Main Features:

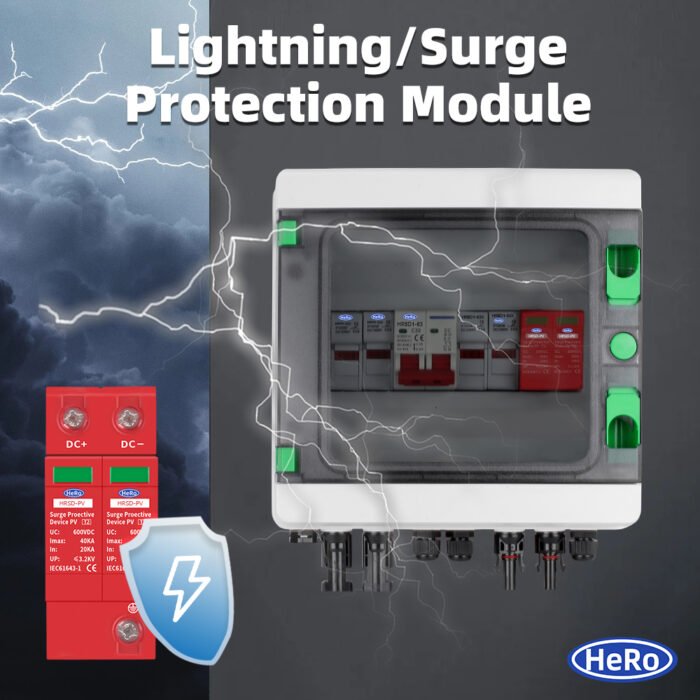

• 🛡️ Lightning and Surge Protection: Equipped with a 2P DC SPD to safeguard solar PV systems from voltage spikes caused by lightning or electrical surges.

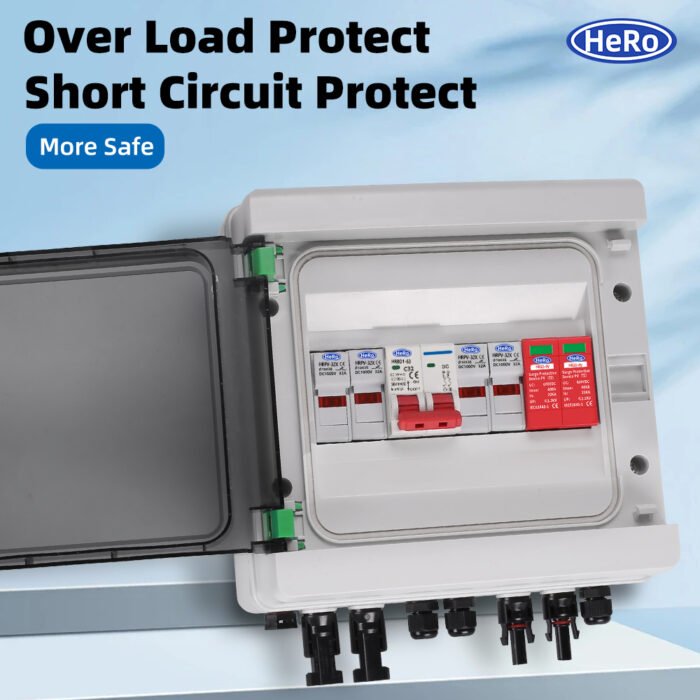

• 🔒 Overcurrent Protection: Includes a 2P DC 600V MCB with multiple current ratings (16A–63A) for reliable overcurrent protection.
• 🔥 Fuse Protection: Integrated 1000V fuse holders with 15A fuses for each input string, providing additional safety.
• 🌧️ Waterproof Design: IP65-rated enclosure ensures protection against dust and water ingress, making it suitable for outdoor installations.

⚙️ Technical Specifications:

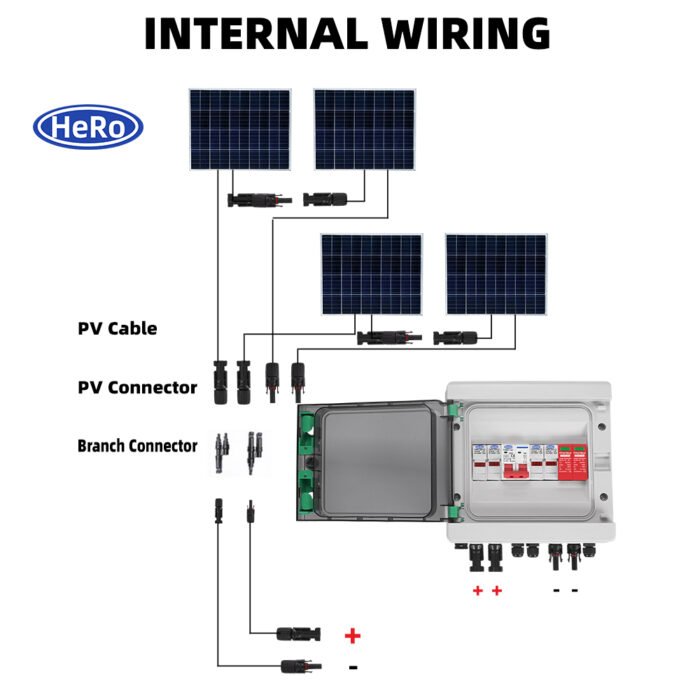

• ⚡ Input/Output Configuration: 2 Inputs, 1 Output, 2 Strings
• 📏 Enclosure Rating: IP65 (Dust-tight and protected against water jets).
• 🔋 Voltage Compatibility: Designed for DC 600V systems with components rated up to 1000V for future-proofing.

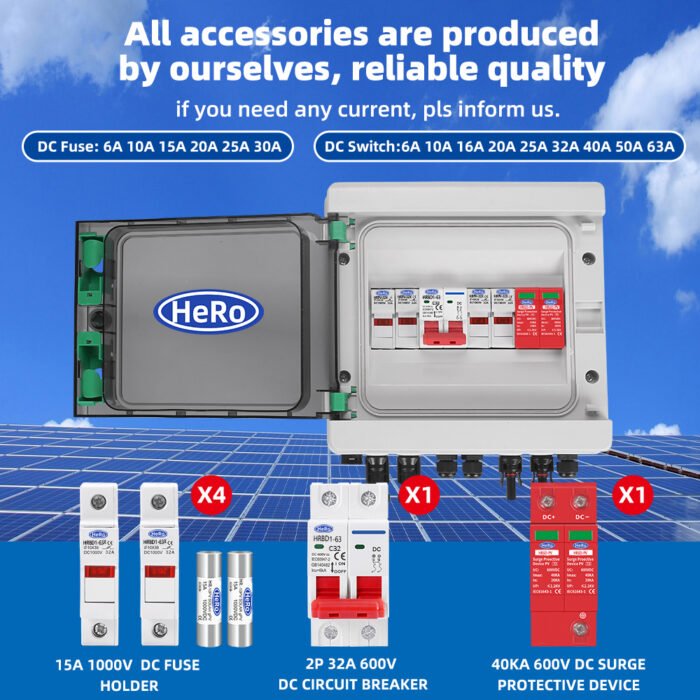

📝 Package Includes:

• 2x 1000V Fuse Holders with 15A Fuses (One for each input string).
• 1x 2P DC 600V MCB (Available in 16A, 20A, 25A, 32A, 40A, 50A, 63A).
• 1x 2P DC SPD (600V).
• 1x IP65 Waterproof Enclosure.

💡 Ideal For:

• Protecting solar photovoltaic (PV) systems from overcurrent, lightning strikes, and voltage surges.
• Outdoor installations where dust and water resistance are critical.
• Small-scale to medium-scale solar PV systems requiring reliable combiner box solutions.

⚙️ Applications:

• Residential and commercial solar energy systems.
• Outdoor solar panel installations in harsh weather conditions.
• Systems requiring compliance with safety standards for surge and overcurrent protection.

📝 Important Notes:

• ⏳ Initial Setup: Ensure proper wiring and configuration before use. Verify that all components are securely connected.
• 🌧️ Installation Environment: The IP65-rated enclosure is designed for outdoor use but should be installed in a location that minimizes direct exposure to extreme weather conditions.
• ⚡ MCB Selection: Choose the appropriate MCB current rating (16A–63A) based on the system’s requirements.
