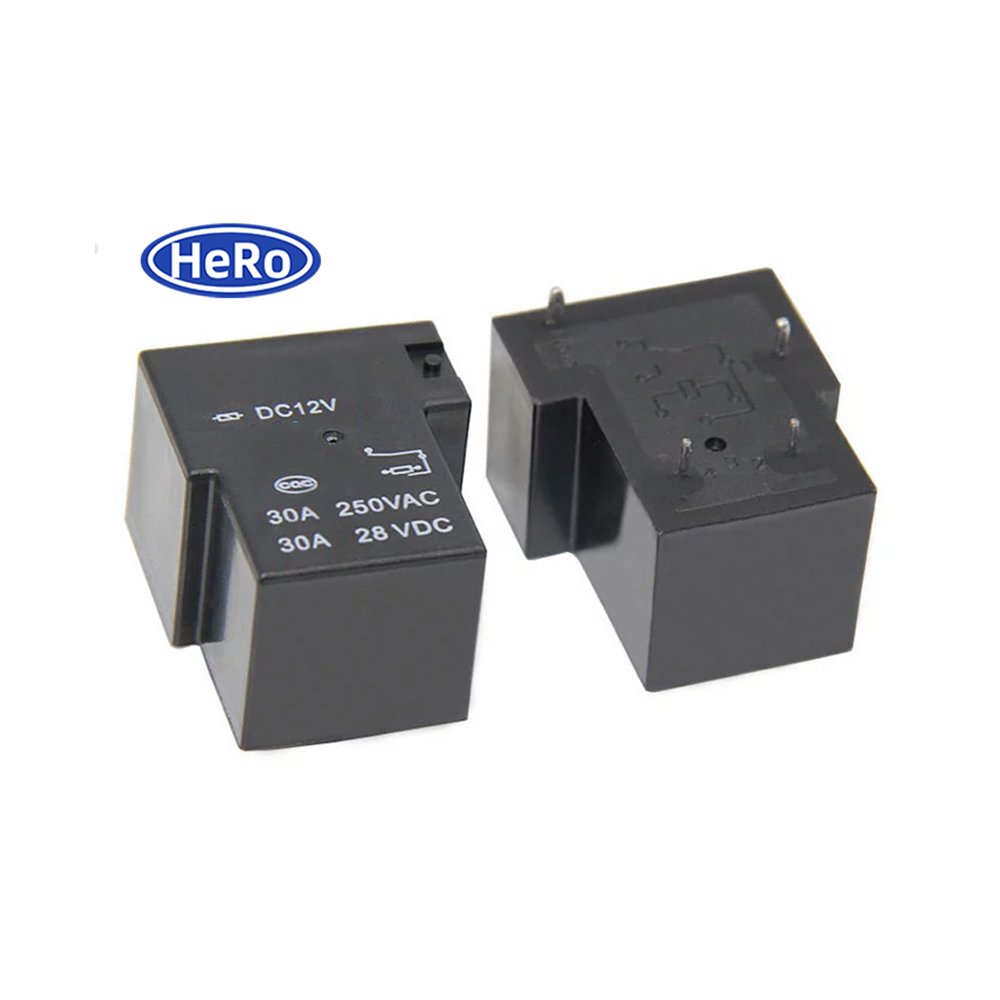

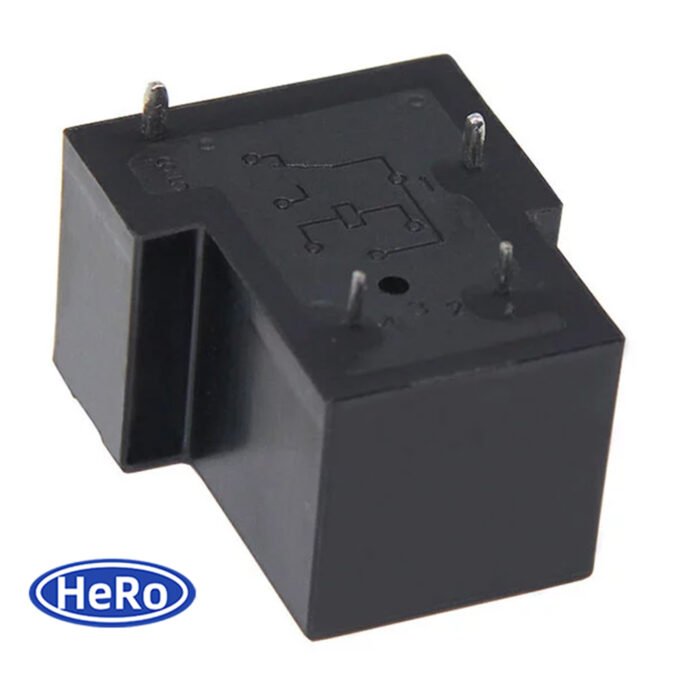

T90 Relay

T90 Relay Product Description

The T90 Relay is a high-performance, electrically operated switch designed for reliable circuit control in industrial, commercial, and residential applications. With its robust silver alloy contacts and compact design, the T90 relay ensures efficient switching for both AC and DC circuits. Whether you need to control a single circuit or multiple circuits with a low-power signal, the T90 relay delivers exceptional performance and durability.

inquiry
For more inquiries, you can send them via the form.
Category: Tags: , , Brand:
Let's talk

T90 Relay Product Description

The T90 Relay is a high-performance, electrically operated switch designed for reliable circuit control in industrial, commercial, and residential applications. With its robust silver alloy contacts and compact design, the T90 relay ensures efficient switching for both AC and DC circuits. Whether you need to control a single circuit or multiple circuits with a low-power signal, the T90 relay delivers exceptional performance and durability.

Key Features

  • āš” High Contact Rating: 30A 250VAC / 28VDC for heavy-duty applications.
  • šŸŒ”ļø Wide Temperature Range: Operates reliably from -40Ā°C to +85Ā°C.
  • ā±ļø Fast Response Time: Operate time of max. 15ms and release time of max. 10ms.
  • šŸ’Ŗ Durable Construction: Shock resistance of 98m/sĀ² (10g) and vibration resistance of 10Hz-55Hz.
  • šŸ”‹ Low Power Consumption: Coil power of just 0.9W for energy efficiency.
  • šŸŒŸ Certified Quality: Compliant with CQC and ROHS standards.

Technical Specifications

Contact Data

Parameter
Value
Contact Form
1B
Contact Material
Silver Alloy
Contact Rating
30A 250VAC / 28VDC
Switching Voltage
28VDC / 250VAC
Switching Current
30A
Switching Power
7500VA (AC) / 900W (DC)
Contact Resistance
ā‰¤ 100mĪ©

General Data

Parameter
Value
Insulation Resistance
ā‰„ 100MĪ© (at 500VDC)
Dielectric Strength
2500VAC (1 minute)
Strength
1500VAC (1 minute)
Operate Time
Max. 15ms
Release Time
Max. 10ms
Temperature Range
-40Ā°C to +85Ā°C
Shock Resistance
98m/sĀ² (10g) / 980m/sĀ²
Electrical Life
1 Ɨ 10āµ operations (30 ops/min)
Mechanical Life
1 Ɨ 10ā· operations (300 ops/min)
Vibration Resistance
10Hz-55Hz, 1.5mm (double amplitude)
Humidity
5% to 85% RH
Weight
Approx. 35g
Certifications
CQC, ROHS

Coil Data

Nominal Voltage (VDC)
Coil Resistance at 20Ā°C Ā±10% (Ī©)
Max Release Voltage (VDC)
Min Release Voltage (VDC)
Min Applicable Voltage (VDC)
5
27
3.75
0.5
6.5
6
40
4.5
0.6
7.8
9
97
6.75
0.9
11.7
12
155
9
1.2
15.6
24
660
18
2.4
31.2
48
2560
36
4.8
62.4
110
13450
82.5
11
143

Applications

  • šŸ­ Industrial Automation: Ideal for controlling machinery and equipment.
  • šŸ’” Lighting Systems: Perfect for switching lights and display panels.
  • šŸ  Home Appliances: Suitable for smart home systems and kitchen appliances.
  • šŸŽ® Custom Projects: Great for DIY projects like arcade machines or custom controllers.
  • šŸšØ Safety Systems: Reliable for emergency stop buttons and alarm systems.

This description combines clear, concise information with emojis to make it visually appealing and easy to understand. If you need further adjustments or additional details, feel free to ask! šŸ˜Š
