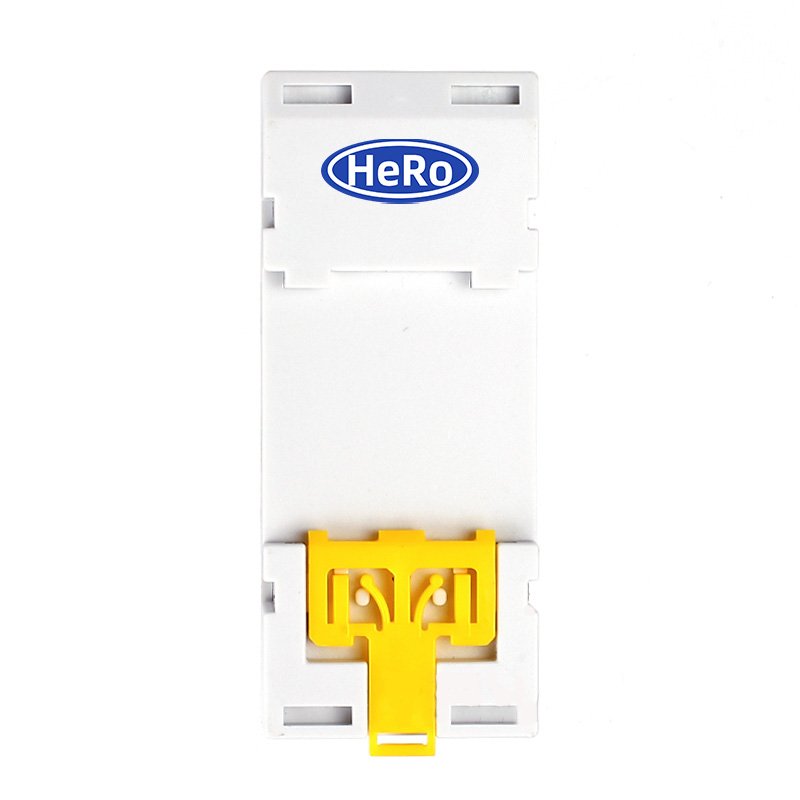

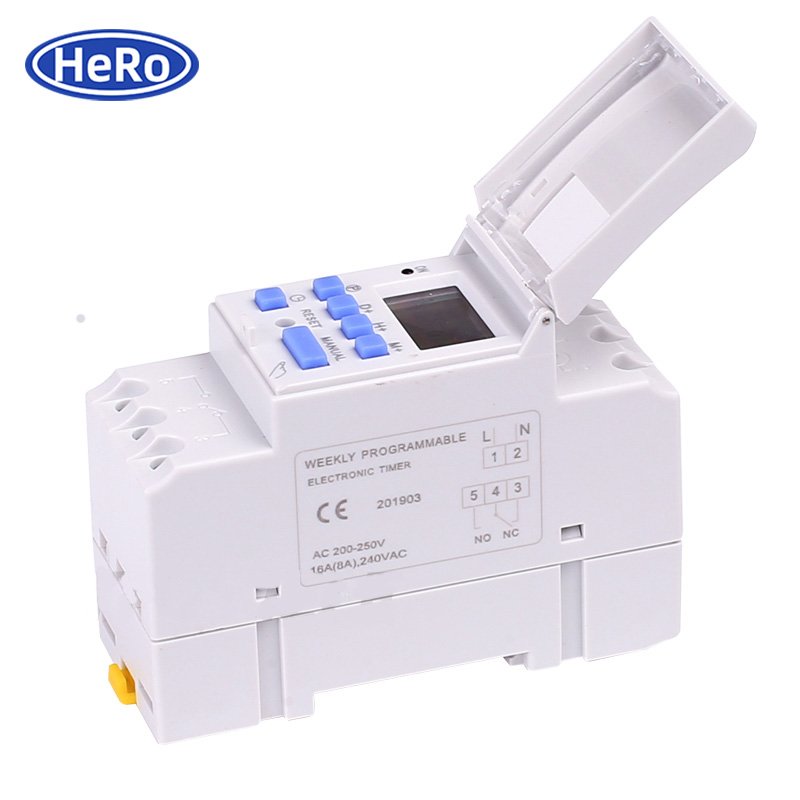

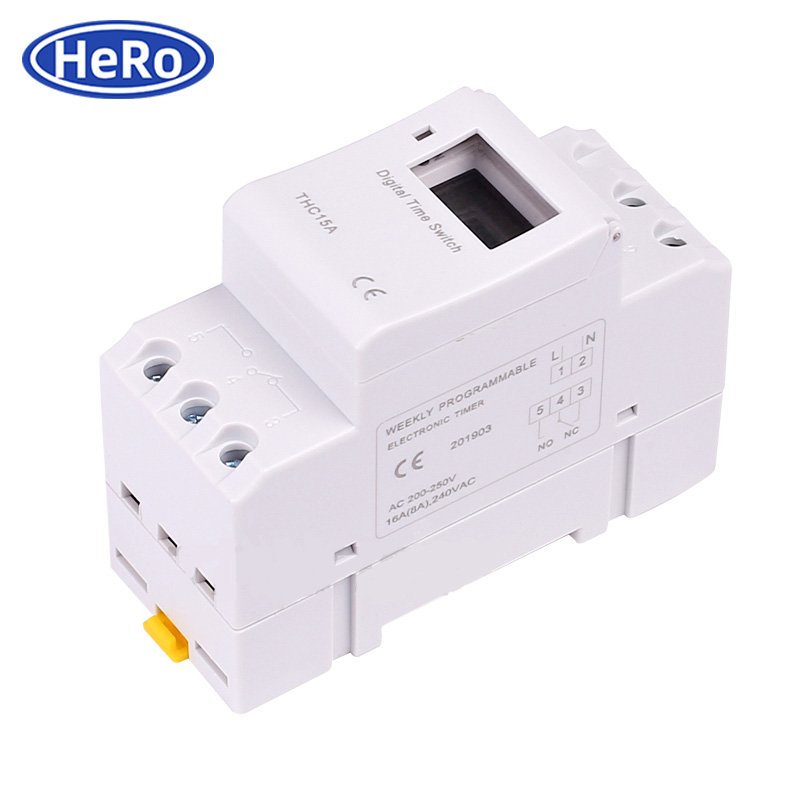

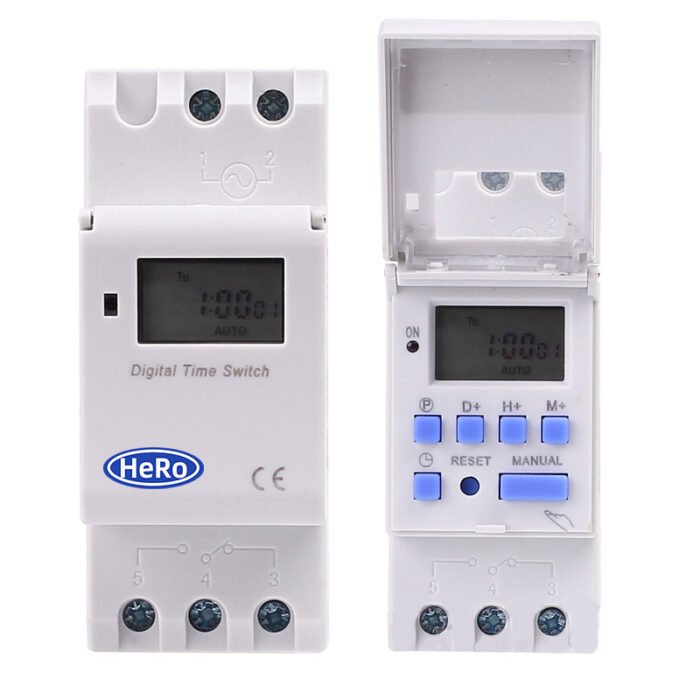

THC-15A Timer Switch
Product Overview:
The THC-15A Digital Timer Switch is a versatile DIN rail-mounted device designed for precise daily and weekly scheduling. With a user-friendly LCD display, multiple voltage options, and up to 16 ON/OFF programs per day or week, it provides reliable automation for residential, commercial, and industrial applications.
Key Features:
- 🕒 Flexible Scheduling: 16 ON/OFF programs per day or week for full control.
- 🖥️ Clear LCD Display: Easily monitor and adjust settings.
- ⏳ Precise Timing: 1-minute minimum interval; range from 1 minute to 168 hours.
- 🔋 Power Backup: Built-in rechargeable battery retains settings for up to 60 days during power outages.
- ⚡ Wide Voltage Support: Operates with 12V, 24V, 48V, 110V, or 220V power supplies.
- 🔀 Switching Contact: 1 changeover switch (SPDT) for versatile control applications.
- 🎯 High Accuracy: Minimal error margin (1 second per 24 hours at 25°C).
Technical Specifications:
| Model | THC-15A |
| Display | LCD |
| Power Supply | 12V, 24V, 48V, 110V, 220V AC |
| Power Consumption | 4.5 VA (Max) |
| Programs | 16 ON/OFF per day or week |
| Minimum Interval | 1 minute |
| Timer Range | 1 minute to 168 hours |
| Switching Contact | 1 changeover switch (SPDT) |
| Contact Capacity | 16(8)A, 250V AC |
| Power Backup | Up to 60 days (Rechargeable 1.2V 40mA battery) |
| Average Error | 1 second per 24 hours at 25°C |
| Weight | 0.15 kg |
Applications:
- 🏠 Home Automation: Lights, heaters, irrigation systems, and household appliances.
- 🏢 Commercial Use: Office lighting, signage control, HVAC systems scheduling.
- 🏭 Industrial: Equipment cycling, process automation, factory lighting control.
Package Includes:
- 1x THC-15A DIN Rail Timer Switch
- 1x User Manual
Important Notes:
- ⚡ Voltage Selection: Make sure the correct power supply voltage is selected before installation.
- 🔌 Installation: For optimal safety and performance, professional installation is recommended.
- 🔋 Battery Backup: Ensure the internal battery is properly charged for full blackout protection.
