⚡ Product Specifications
Rated Voltage: 60-300V
Frequency: 50Hz/60Hz
Note: If your voltage is 110VAC, the protector will activate under-voltage protection upon first use.
Adjust over-voltage (60-300V) and under-voltage (60-300V) settings based on your needs.

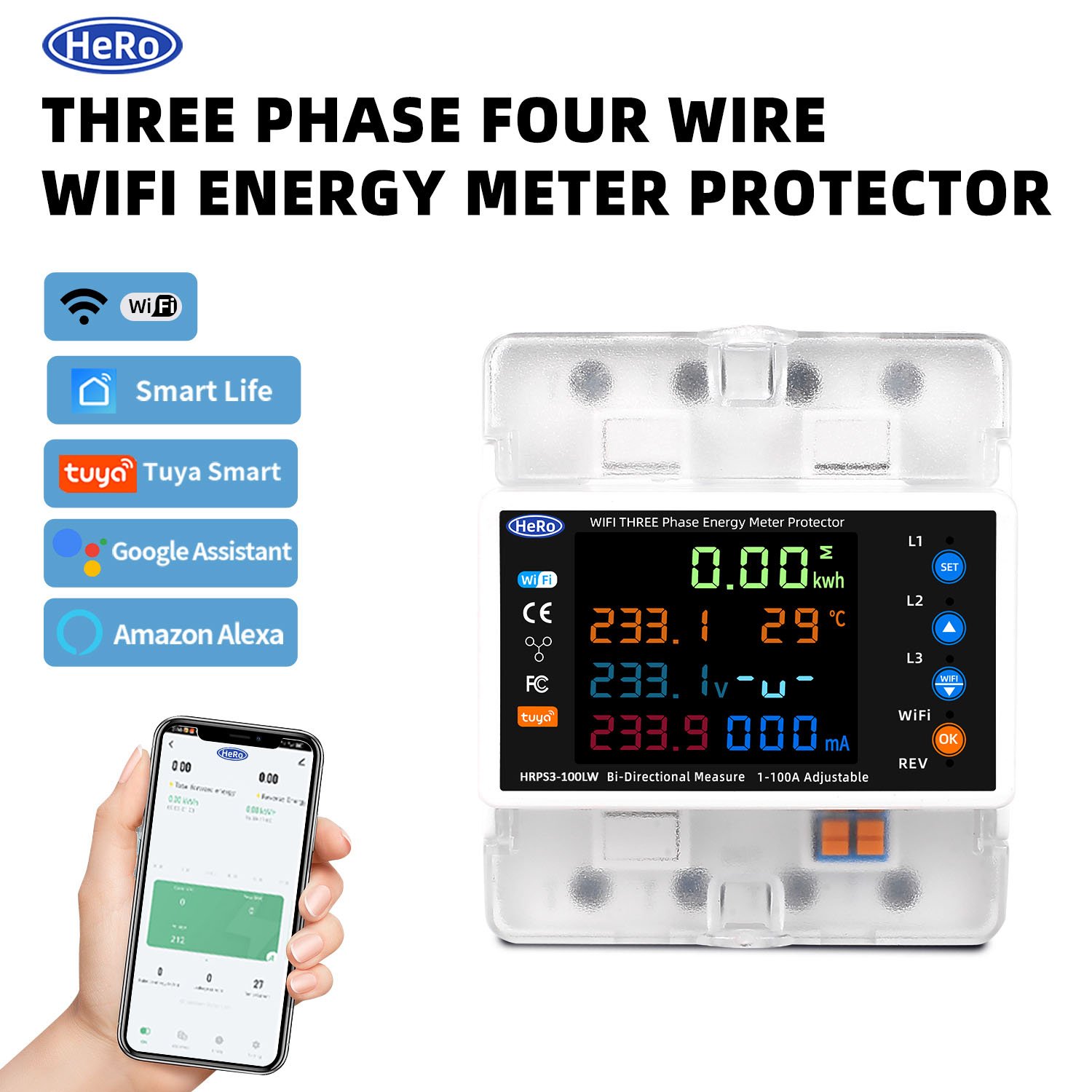

📱 Wire Phone Control
- 🔧 Remote Control: Control anytime, anywhere using SMART LIFE APP/ TUYA APP.
- ⏱️ Timer: Features include timing, countdown, and cycle time settings.
- 🎙️ Voice Control: Compatible with Amazon Alexa & Google Assistant for voice command functionality.

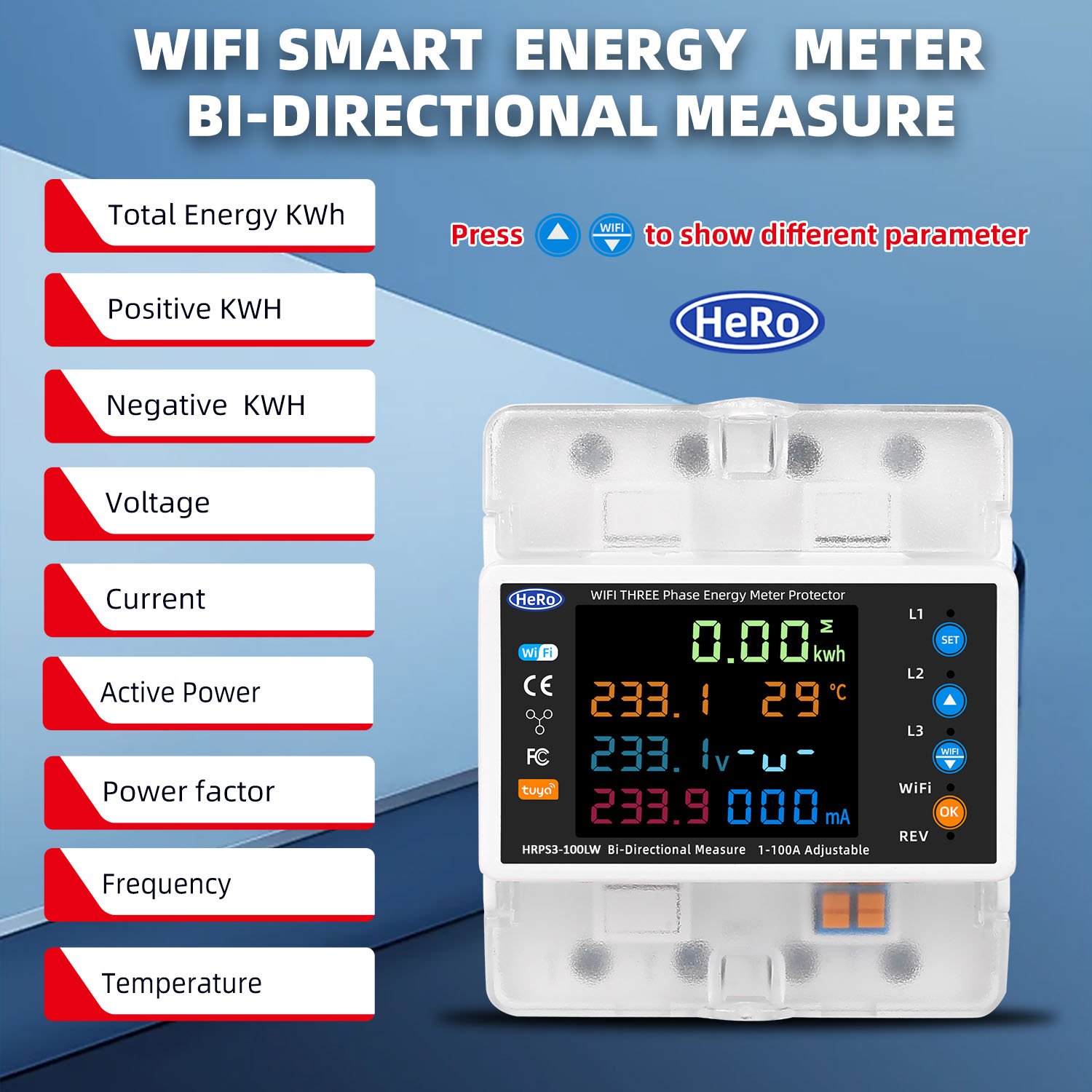

🔋 Multi-Function Meter
- 🔄 Bi-directional Measurement: Tracks both positive and negative KWh for comprehensive energy analysis.
- ⚡ Energy Monitoring: Monitors voltage, current, active power, power factor, frequency, and temperature.

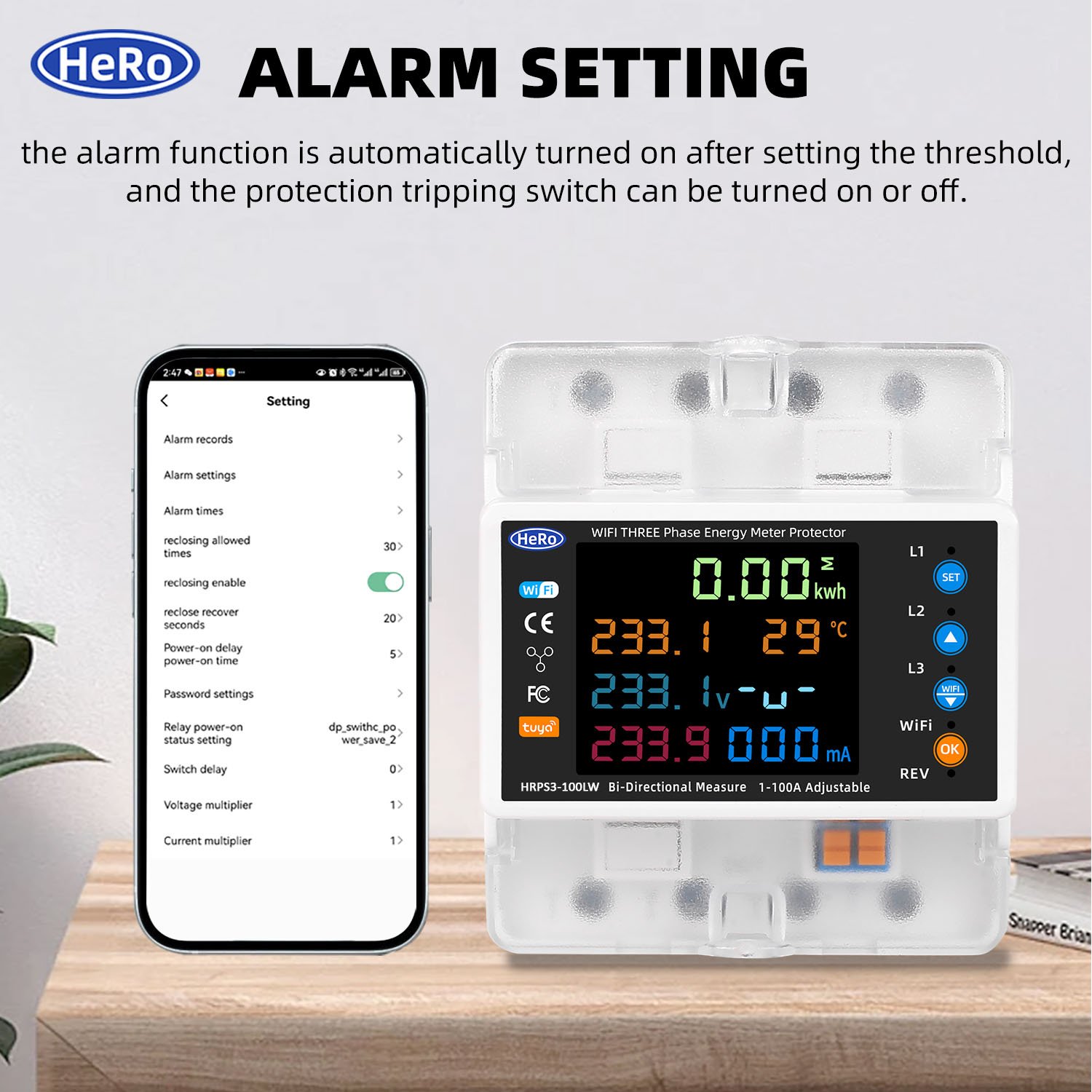

🛡️ Protective Functions
- ⚡ Over Voltage Limit: 120-300V (Adjustable, Default: 275V)
- 🔽 Under Voltage Limit: 80-210V (Adjustable, Default: 175V)
- ⚡ Over Current Limit: 1-100A (Adjustable, Default: 80A)
- 🔋 Under Current Limit: 1-100A (Adjustable, Default: 10A)

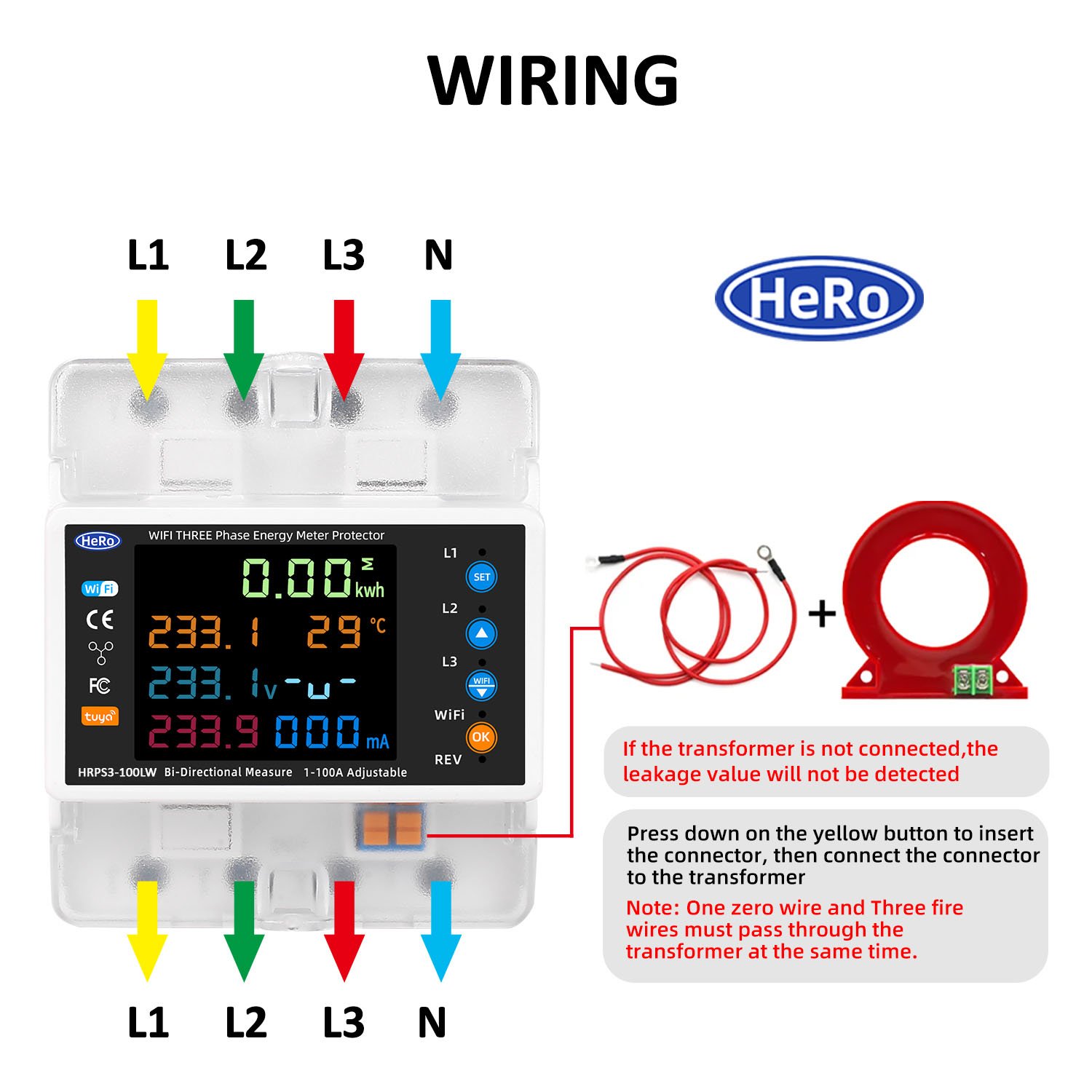

- 💧 Leakage Current Limit: 10-99mA (Adjustable, Default: 30mA) – Use with transformers.
- 🔥 High Temperature Alarm: 10-85℃ (Adjustable, Default: 85℃)

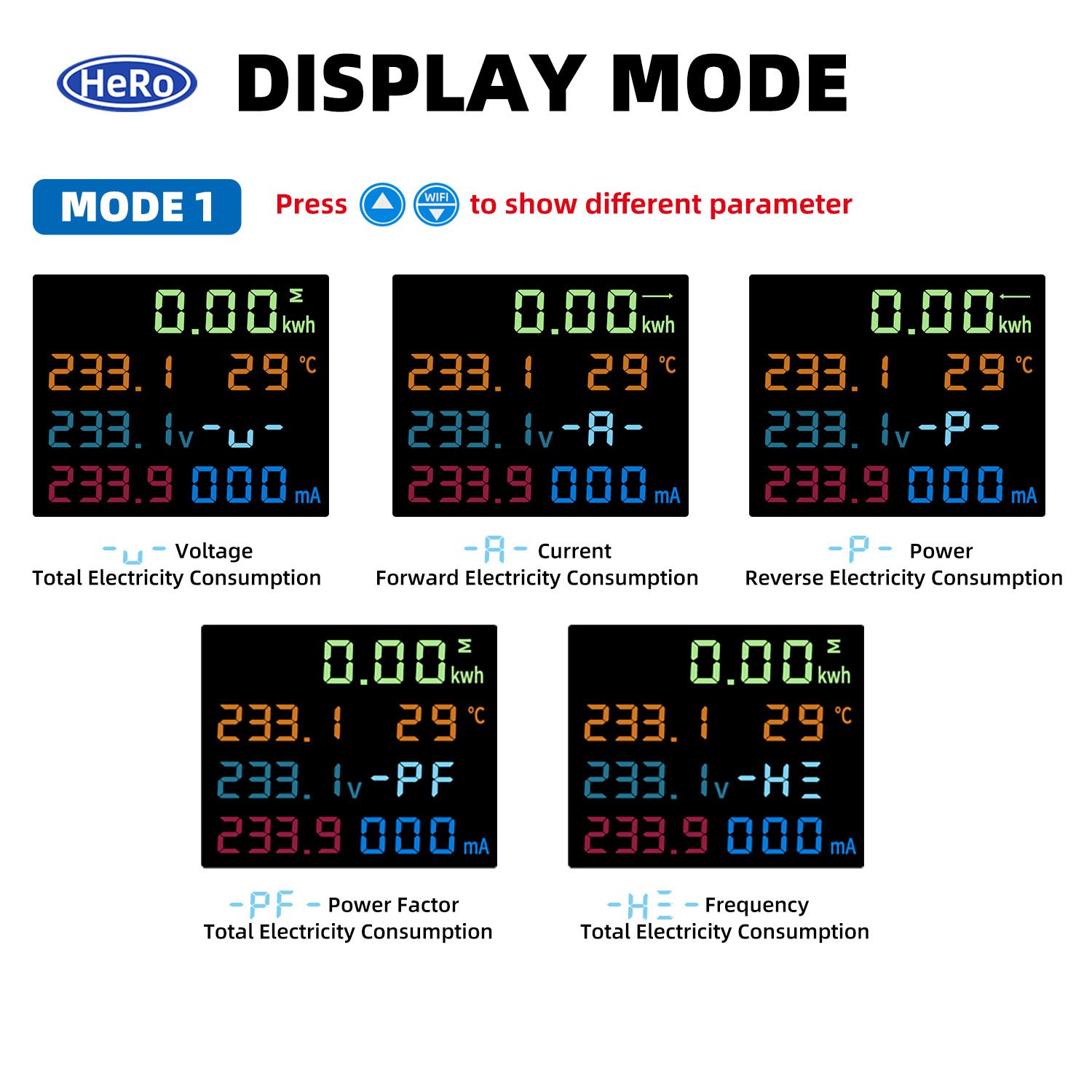

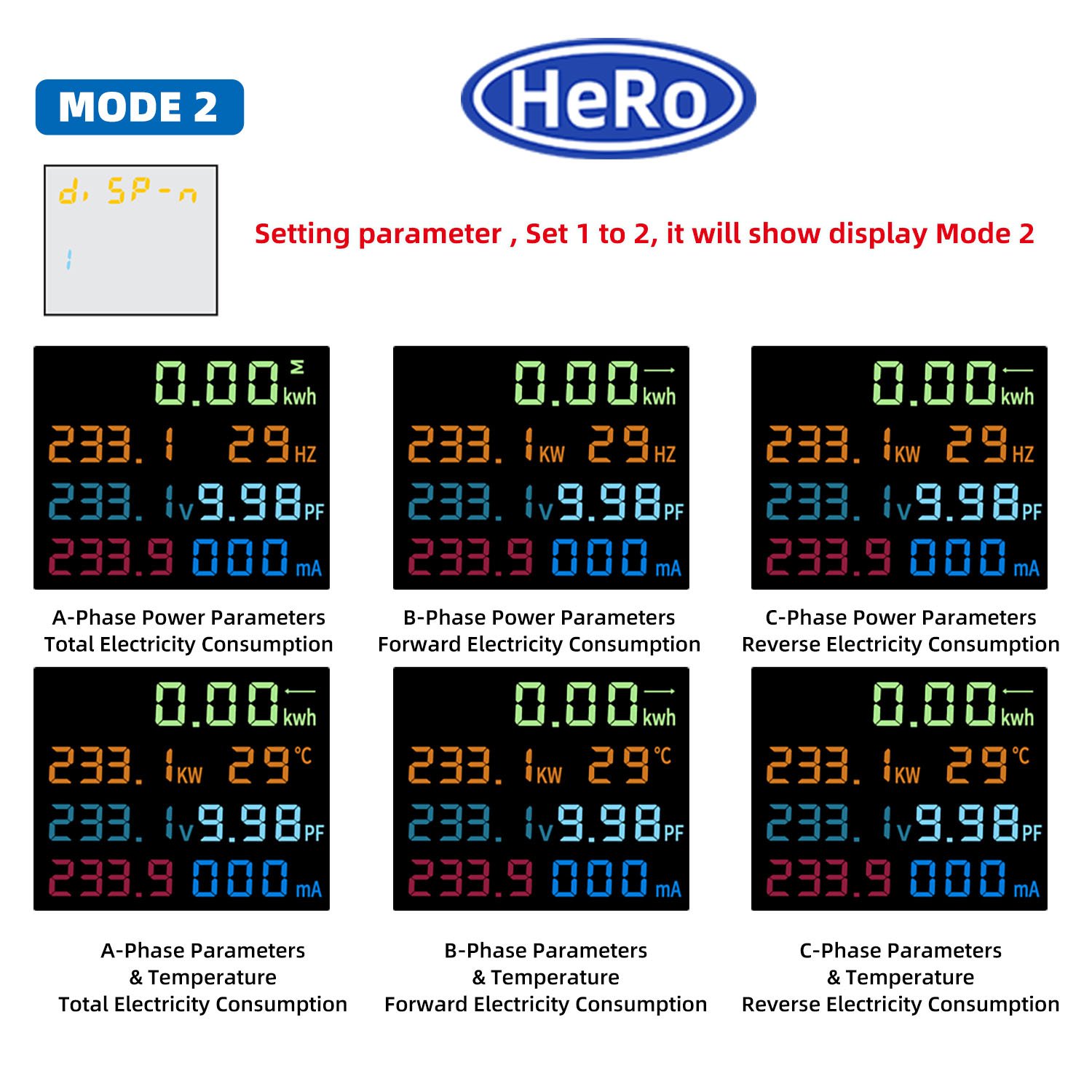

- 🔄 Display Modes: Two modes available (Default: Display Mode 1)
- ⏳ Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable, Default: 20s)
- ⏱️ Over & Under Current Protection Delay: 0000-9999s (Adjustable, Default: 5s)
- 🔄 Protection Recovery Time: 0000-9999s (Adjustable, Default: 20s)
- ⏳ Under & Over Voltage Protection Delay: 1-9999s (Adjustable, Default: 3s)
- ⚖️ Three-Phase Current Imbalance Alarm: 10-100% (Adjustable, Default: 20%)
- 🔌 Voltage Three-Phase Imbalance Alarm: 0-100% (Adjustable, Default: 20%)
- ⚡ Lost Current Recovery Delay Time: 1-9999s (Adjustable, Default: 20s)
- 🕒 Time Threshold of Lost Flow Event: 1-999s (Adjustable, Default: 10s)
- 🔋 Energy Consumption Zero Clearing: Default OFF
- 🔄 Factory Settings Reset: Default OFF
🌐 Additional Features
- 📲 Device Sharing: Share device access with others.
- 🌍 Remote Control: Full control from anywhere.
- 🎙️ Voice Control: Integrates with Amazon Alexa and Google Assistant.
