📄 Product Specifications
🔌 Voltage Range: AC 80V – 300V (Single Phase)
🔁 Frequency: 50Hz / 60Hz

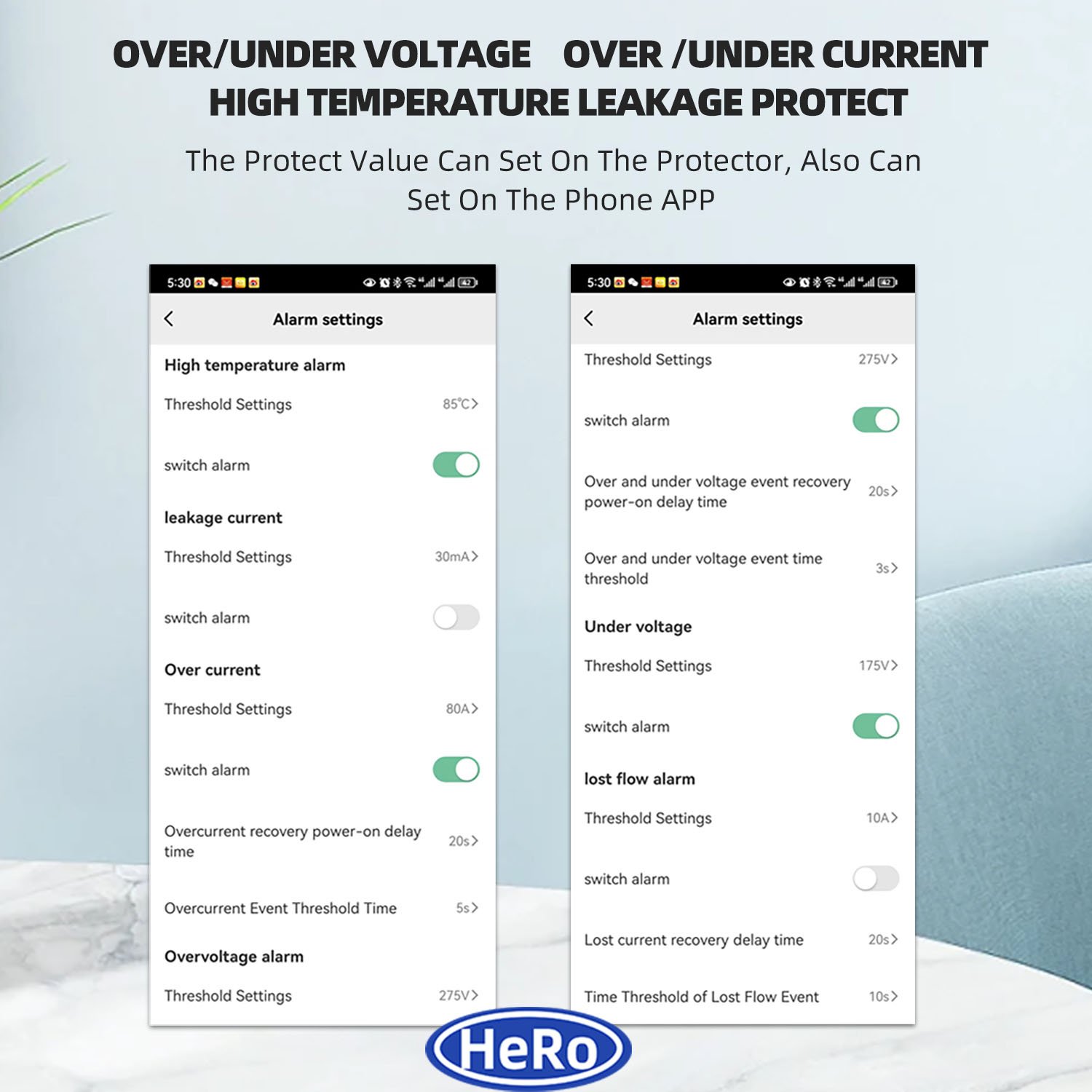

🧠 Smart Functions & Protections
- ⚠️ Over Voltage Limit: Adjustable 120–300V (Default: 275V)
- ⚠️ Under Voltage Limit: Adjustable 80–210V (Default: 175V)
- 🔋 Over Current Limit: Adjustable 1–100A (Default: 80A)
- 🔋 Under Current Limit: Adjustable 1–100A (Default: 10A)
- ⚡ Leakage Current Limit: Adjustable 10–99mA (Default: 30mA)
- 🌡️ High Temperature Alarm: Adjustable 10–85℃ (Default: 85℃)
⏱️ Timing & Delays
- ⏳ Voltage Protection Recovery Time: 1–9999s (Default: 20s)
- ⏳ Current Protection Delay: 0000–9999s (Default: 5s)
- ⏳ Current Protection Recovery Time: 0000–9999s (Default: 20s)
- ⏳ Voltage Protection Delay: 1–9999s (Default: 3s)
- ⏳ Lost Current Recovery Delay: 1–9999s (Default: 20s)
- ⏱️ Lost Flow Event Threshold: 1–999s (Default: 10s)
🛠️ Additional Features
- ♻️ Energy Consumption Reset: Default OFF
- 🔧 Factory Reset: Default OFF
- 👥 Device Sharing
- 📱 Remote Control via App
- 🎙️ Voice Control Support
