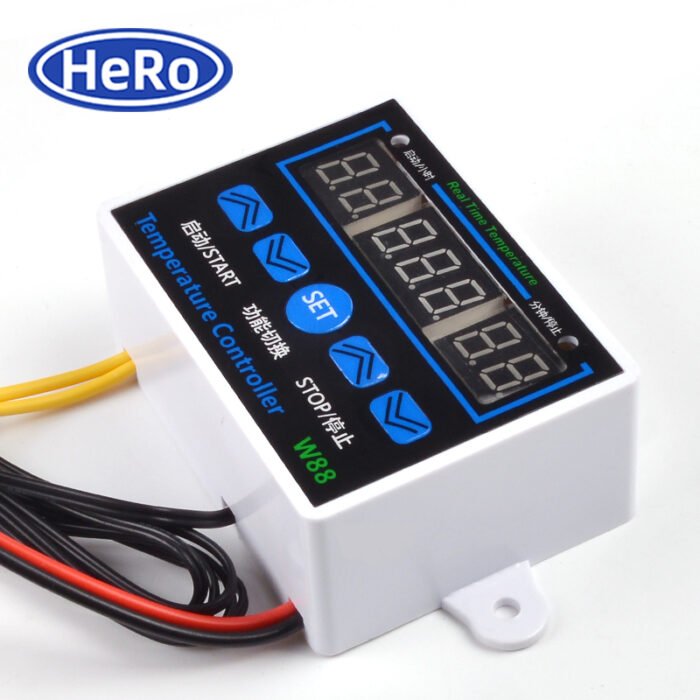

W88 Digital Thermostat

W88 Digital Thermostat

• 🌡️ Product Name: W88 Digital Temperature Controller
• 🔍 Temperature Measuring Range: -50°C to 110°C
• ⚙️ Temperature Control Range: -19°C to 99°C
• ⚡ Supply Voltage: DC 12V or AC 220V (Selectable)
• 🔌 Output Current: 10A

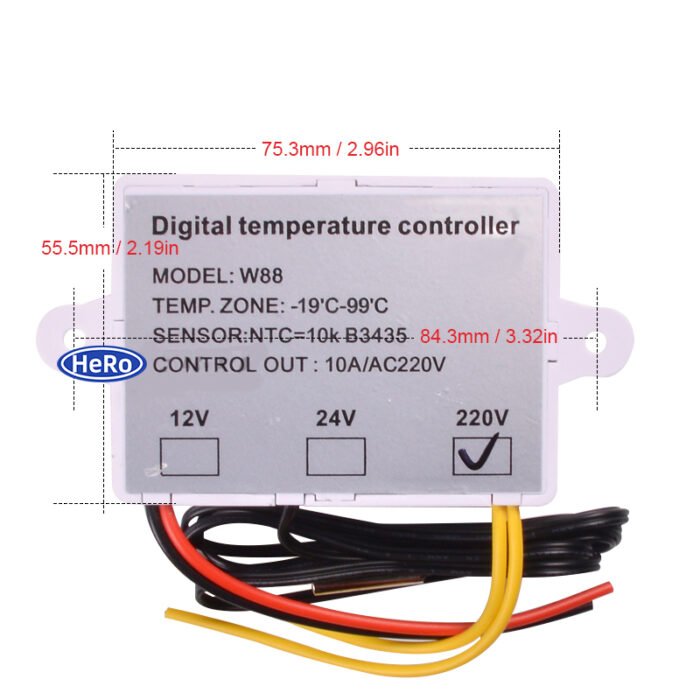

• 📦 Overall Size: 81x55x31mm (3.19×2.17×1.22 inches)

🔧 Key Features:

• 🌡️ Precise Temperature Control: With a temperature measurement accuracy of ±0.3°C and a resolution of 0.1°C, the W88 ensures highly accurate temperature monitoring and control.
• 🔍 Wide Measuring Range: Capable of measuring temperatures from -50°C to 110°C, making it suitable for a variety of applications.
• ⚡ Dual Power Supply Options: Operates on either DC 12V or AC 220V, providing flexibility for different setups.
• 💧 NTC10K/B3435 Temperature Probe: Equipped with a durable and reliable NTC10K/B3435 temperature probe for accurate readings in various environments.
• 🛡️ Safe Output Capacity: Supports up to 10A output current, ensuring compatibility with a wide range of heating or cooling devices.
• 📏 Compact Design: Sleek and space-saving design with dimensions of 81x55x31mm, making it easy to install and integrate into any system.

⚙️ Technical Specifications:

• 🌡️ Temperature Measuring Range: -50°C to 110°C
• ⚙️ Temperature Control Range: -19°C to 99°C
• 🔍 Temperature Measurement Accuracy: ±0.3°C
• 📊 Resolution: 0.1°C
• 💧 Temperature Probe: NTC10K/B3435
• ⚡ Supply Voltage: DC 12V or AC 220V (Selectable)
• 🔌 Output Current: 10A
• 📦 Overall Size: 81x55x31mm (3.19×2.17×1.22 inches)

💡 Main Functionality:

• Ideal for precise temperature control in applications such as aquariums, refrigerators, seedling cultivation, home brewing, fermentation, and more.
• Ensures safe and reliable operation with its high accuracy, dual power supply options, and durable temperature probe.
• Compact and versatile design makes it suitable for both residential and commercial use.

⚙️ Applications:

• 💧 Aquariums: Maintain optimal water temperature for fish and aquatic life.
• 🌱 Seedling Cultivation: Ensure consistent temperature for plant growth.
• ❄️ Refrigerators: Precise cooling control for food storage or specialized applications.
• 🍺 Home Brewing & Fermentation: Monitor and control fermentation temperatures for better results.
• 🌊 Water Tanks: Regulate temperature for industrial or household water systems.

📝 Important Notes:

• ⚠️ Operating Range: Ensure the controller is used within its specified temperature range (-50°C to 110°C) for optimal performance.
• ⚡ Power Supply Selection: Choose between DC 12V or AC 220V based on your setup requirements.
• 🔌 Load Capacity: Do not exceed the maximum output capacity of 10A to avoid overloading the device.
• 💧 Sensor Placement: Position the NTC10K/B3435 probe carefully to ensure accurate readings, especially in wet or humid environments.

📦 Package Includes:

• 1x W88 Digital Temperature Controller
• 1x NTC10K/B3435 Temperature Probe
• 1x User Manual
