YCQD7 Series integrated star delta starter

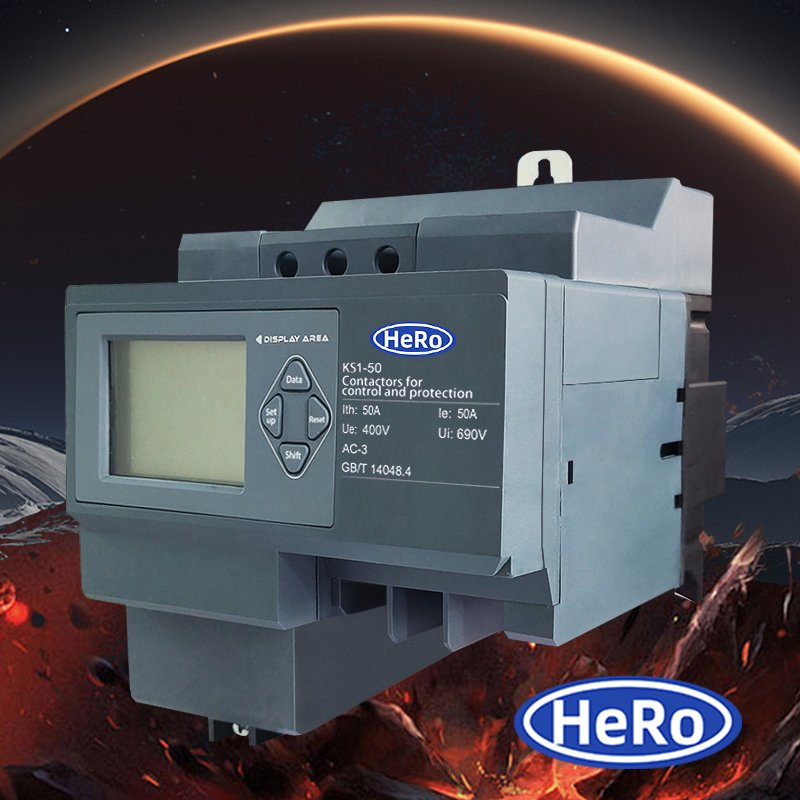

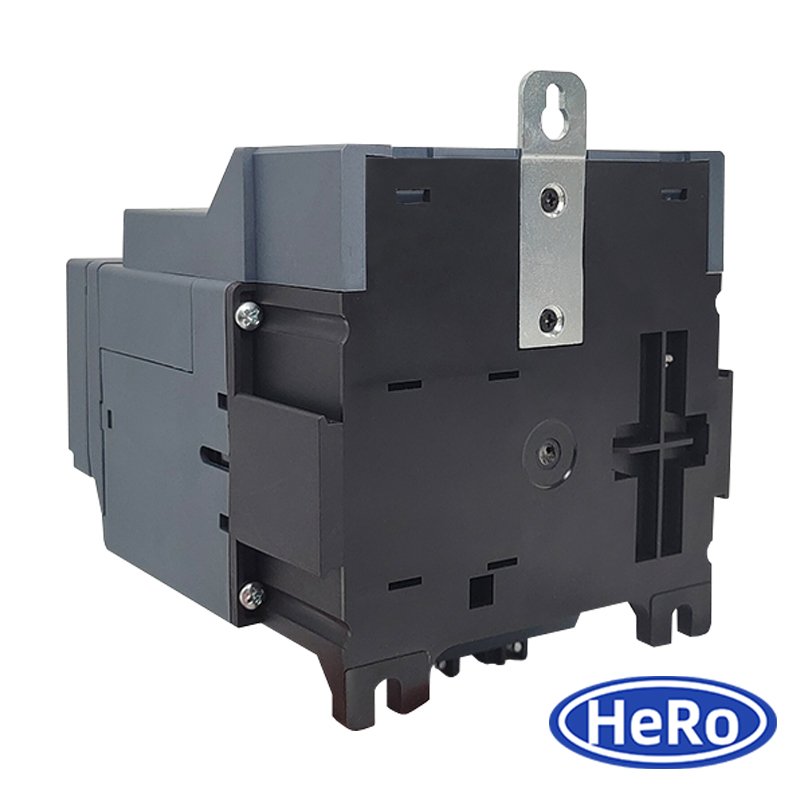

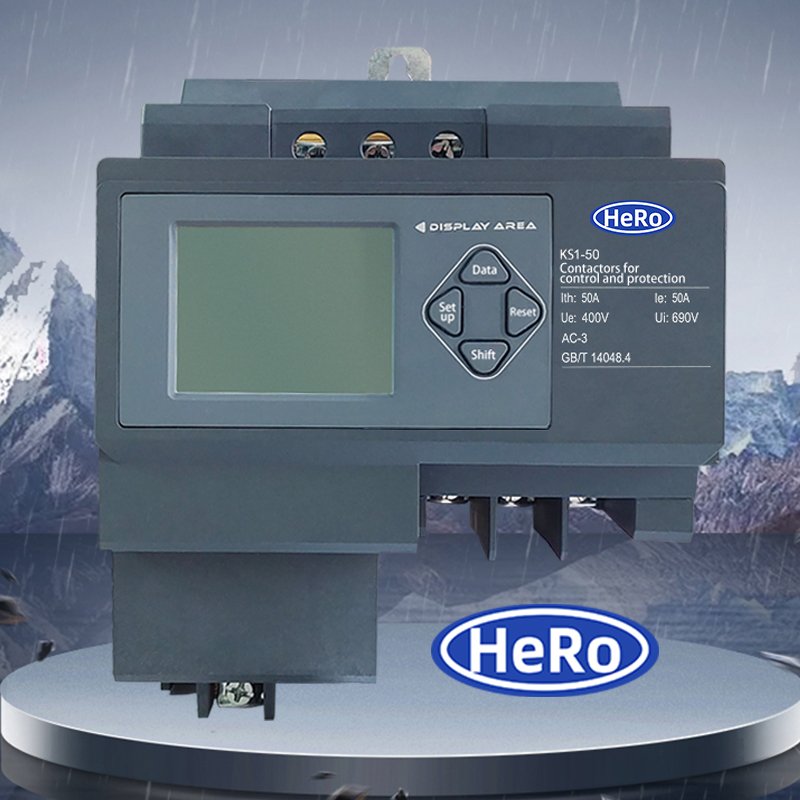

YCQDC-110 Star-Delta Starter

Product Overview:

The YCQDC-110 Star-Delta Starter is a highly reliable and versatile motor starter designed for efficient control of three-phase squirrel cage motors. By utilizing the star-delta starting method, this device reduces inrush current during motor startup, ensuring smooth operation and extending the lifespan of electrical equipment. With advanced features such as overload protection, phase loss protection, and adjustable star running time, the YCQDC-110 is ideal for industrial, commercial, and fire pump applications.

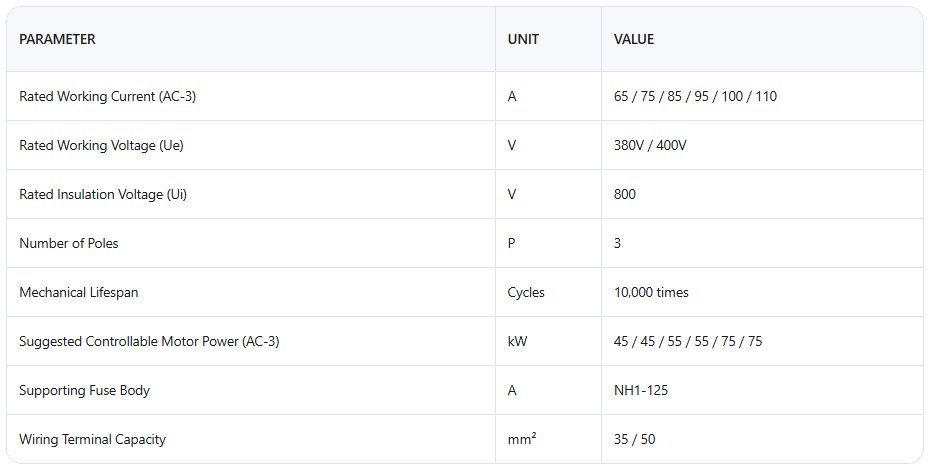

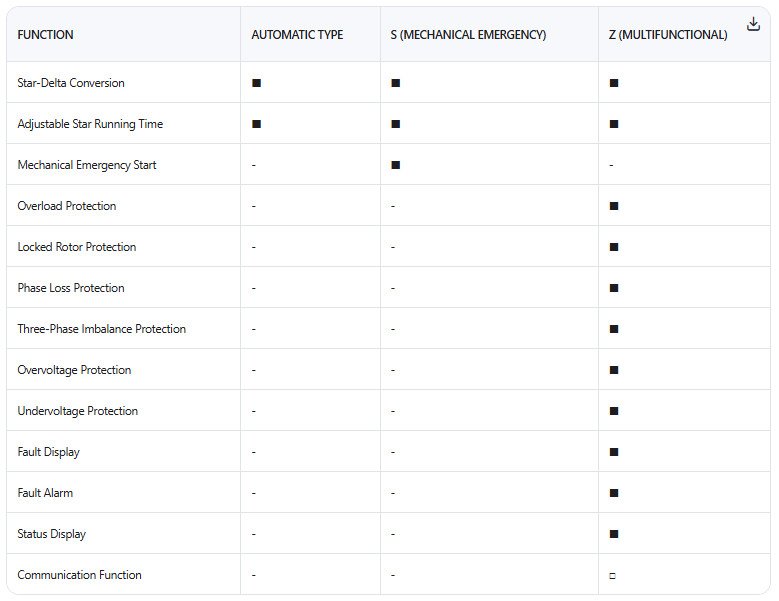

Main Technical Parameters and Functions

————————————————————————————————————-

Normal Working and Installation Conditions

1. Altitude: The installation site shall not exceed 2000m above sea level.
2. Ambient Temperature:
   • Upper limit: +40°C
   • Lower limit: -5°C
   • Average temperature within 24 hours: +35°C
   • For environments outside this range, consult the manufacturer.
3. Installation Orientation:
   • Vertically installed with power terminals facing upwards and load terminals facing downwards.
   • Inclination angle between the installation surface and vertical surface: ±5° maximum.
4. Environmental Conditions:
   • No abnormal vibration or impact.
   • Pollution level: Level 3 .
5. Fixation Method: Screw installation.

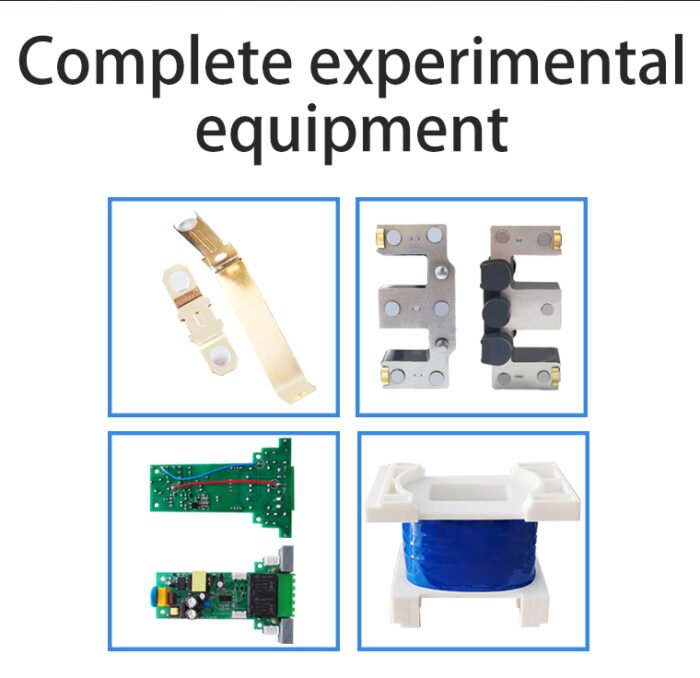

Structural Features and Working Principles

Star-Delta Start:

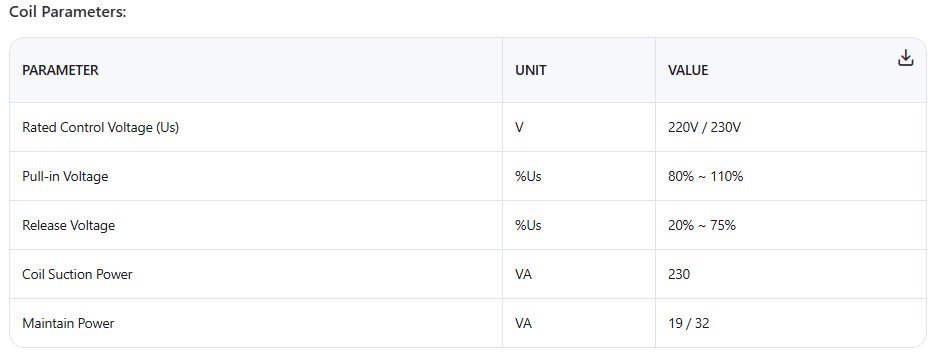

• When the control coil is energized with a 220V control voltage , the main contactor closes, forming a star circuit with the star contactor.
• The motor starts running at reduced voltage, minimizing inrush current and reducing stress on the motor windings.
• After the star running time (adjustable), the motor speed approaches normal operating speed. The main contactor then automatically disconnects the star circuit and simultaneously closes with the delta contactor, forming a delta circuit .
• The motor runs at full voltage, ensuring efficient operation.

Mechanical Emergency Start:

• In case of signal line or control line malfunction (e.g., in fire pump applications), the mechanical emergency start device can be used.
• This feature allows manual closure of the main and delta contactors, ensuring that critical systems like fire pumps can still operate during emergencies.

Applications:

• • 🏭 Industrial Use: Ideal for starting large motors in machinery, conveyor systems, and compressors.
  • 🏠 Commercial Applications: Suitable for HVAC systems, water pumps, and lighting controls.

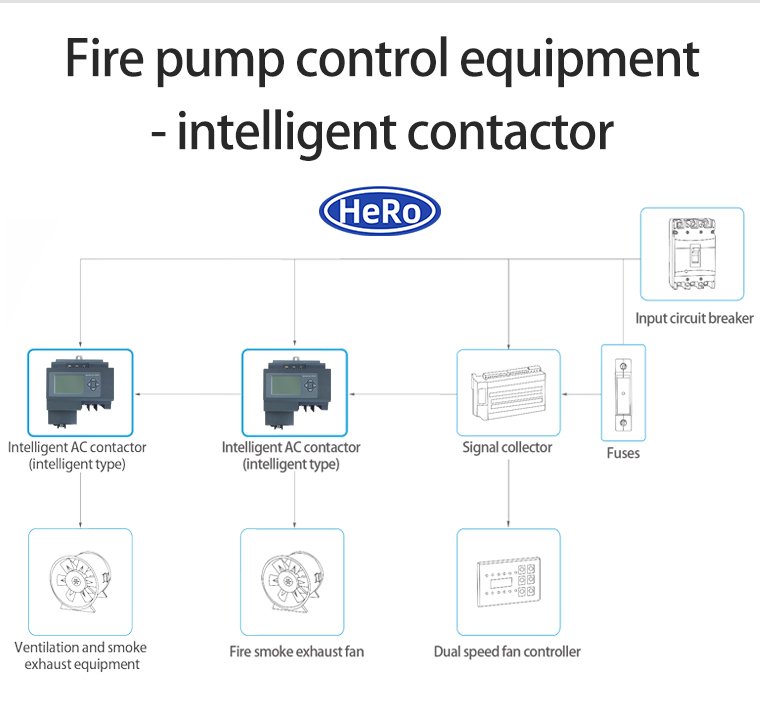

  • 🌊 Fire Pump Systems: Ensures reliable operation of fire pumps, even during control system failures.
  • 🌱 Renewable Energy Systems: Can be used in solar inverters or wind turbines for motor control.

Package Includes:

• 1x YCQDC-110 Star-Delta Starter

Important Notes:

• ⚠️ Operating Parameters: Ensure the device is used within the specified voltage (380V/400V) and current ranges to avoid damage or malfunction.
• 🛡️ Safety Precautions: Always disconnect power before installation or maintenance to prevent electrical hazards.
• 🔧 Installation Guidelines: Follow the manufacturer’s instructions for proper wiring and mounting to ensure optimal performance.
• 🌍 Certification Compliance: Verify that the product meets local regulatory requirements before installation.
