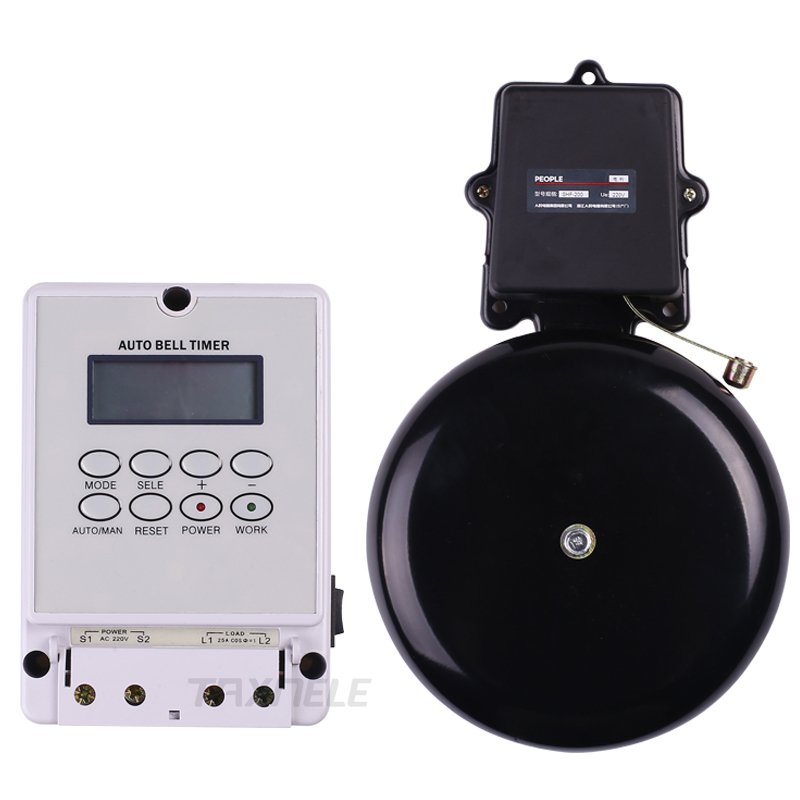

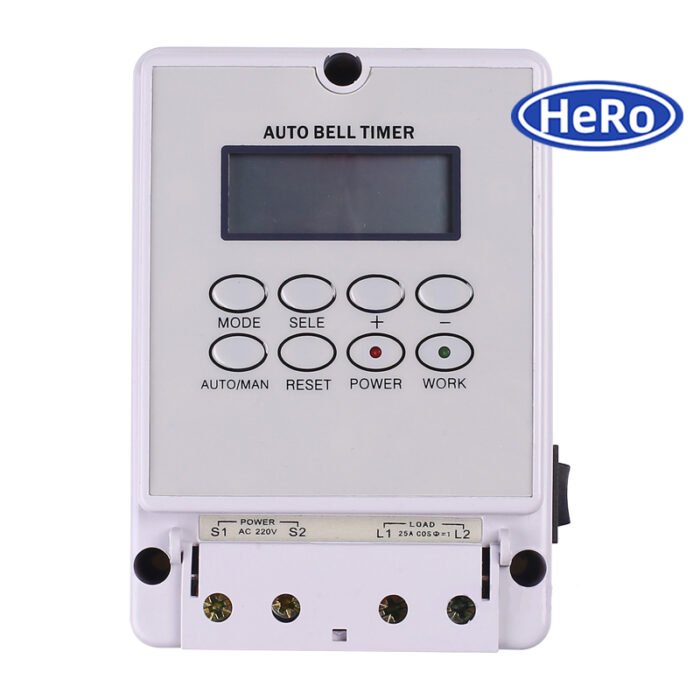

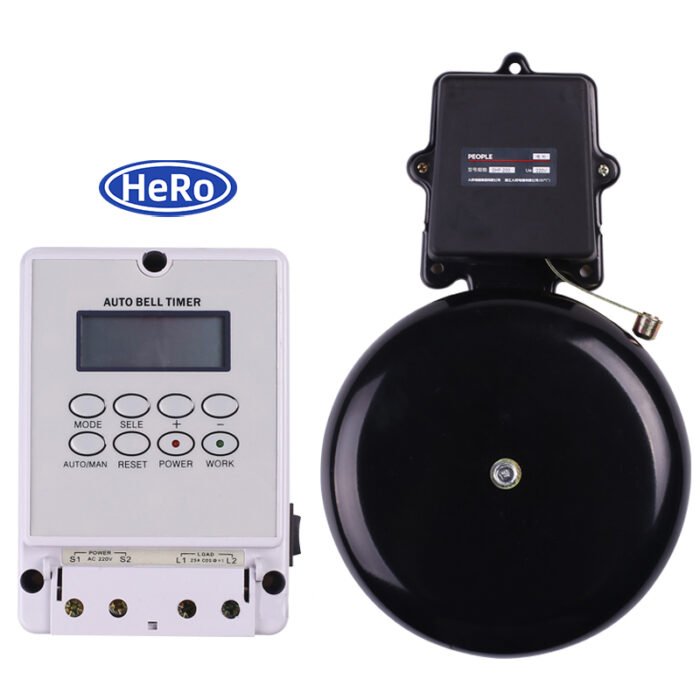

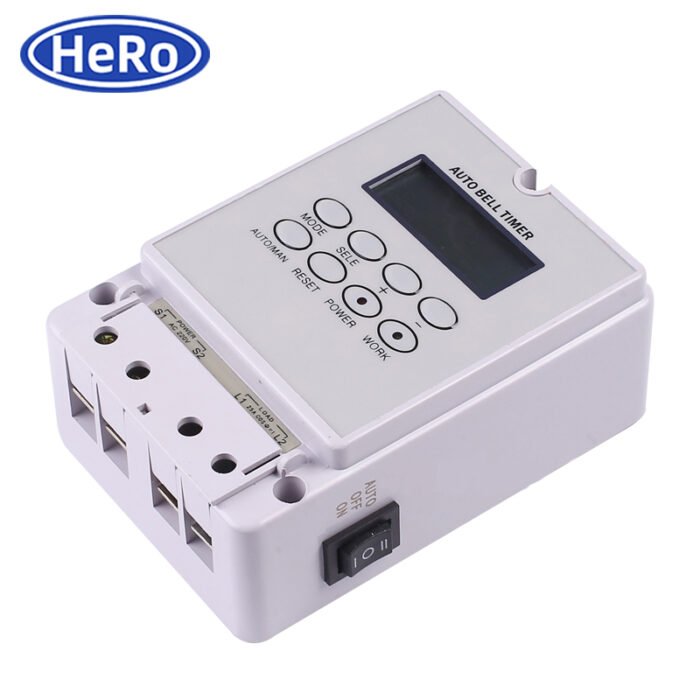

ZTY-08 School Factory Bell Timer Switch

ZTY-08 School Factory Bell Timer Switch
Product Overview:
The ZTY-08 School Factory Bell Timer Switch is a reliable and efficient automatic bell timer designed for schools, factories, and other institutions. Powered by a high-performance microcomputer chip, this device allows for precise scheduling of bells with minimal timing error (0.5s/day). With the ability to store up to 80 programmable time settings, it ensures seamless operation for daily routines.

Key Features:

• ⚙️ Precise Timing: Equipped with a high-performance microcomputer chip for accurate timekeeping with an error of only 0.5 seconds per day.
• 🔔 Automatic Bell Control: Automatically activates the bell at pre-set times, ensuring punctuality and reducing manual intervention.
• ⏰ Flexible Scheduling: Supports up to 80 programmable time settings, allowing customization for various schedules.
• ⚡ High Load Capacity: Handles resistive loads up to 25A, making it suitable for heavy-duty applications like school bells or factory alarms.
• 🌡️ Wide Temperature Range: Operates reliably in temperatures ranging from -10°C to +50°C.
• 📦 Compact Design: Dimensions of 126×88×51mm make it easy to install in tight spaces.
• 🔋 Low Power Consumption: Consumes less than 4W, ensuring energy efficiency.

Technical Specifications:
Working Voltage
AC240V
Timing Error
0.5s/day
Load Capacity
Resistive Load: 25A
Operating Temperature
-10°C to +50°C
Dimensions
126×88×51mm
Max Time Length
1s to 23h 59m 59s
Voltage Scope
85% to 110% of rated voltage
Power Consumption
<4W
Relative Humidity
<95%

Functionality and Operation:

• ⏲️ Programmable Timings:
  • Set up to 80 time slots for automatic bell activation.
  • Each time slot can range from 1 second to 23 hours, 59 minutes, and 59 seconds.
• 🔔 Bell Activation: The device automatically triggers the connected bell or alarm system based on the programmed schedule.
• 🔄 Voltage Stability: Operates within a voltage range of 85% to 110% of the rated voltage, ensuring consistent performance even in fluctuating power conditions.
• ⚡ High Load Handling: Capable of handling resistive loads up to 25A, making it ideal for powering large bells or alarms.

Applications:

• 🏫 Schools: Automate bell systems for class schedules, breaks, and assemblies.
• 🏭 Factories: Manage shift changes, breaks, and alarms with precision timing.
• 🏢 Offices: Use for automated reminders, meetings, or break schedules.
• ⛪ Religious Institutions: Automate call-to-prayer systems or event reminders.

Package Includes:

• 1x ZTY-08 School Factory Bell Timer Switch
• 1x User Manual

Important Notes:

• ⚠️ Operating Voltage: Ensure the device is used within the specified voltage range (AC240V) to avoid damage.
• ⚡ Load Capacity: Do not exceed the maximum load capacity of 25A to prevent overloading the device.
• 🌡️ Temperature Range: Use the device within the operating temperature range (-10°C to +50°C) for optimal performance.
• 🛡️ Safety Precautions: Always disconnect power before installation or maintenance to prevent electrical hazards.
